TM18VN6DV Banner Proximity Sensors

TM18VN6DV on Powermatic Associates
Banner

Part#:TM18VN6DV

Alt. Part#:18035

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

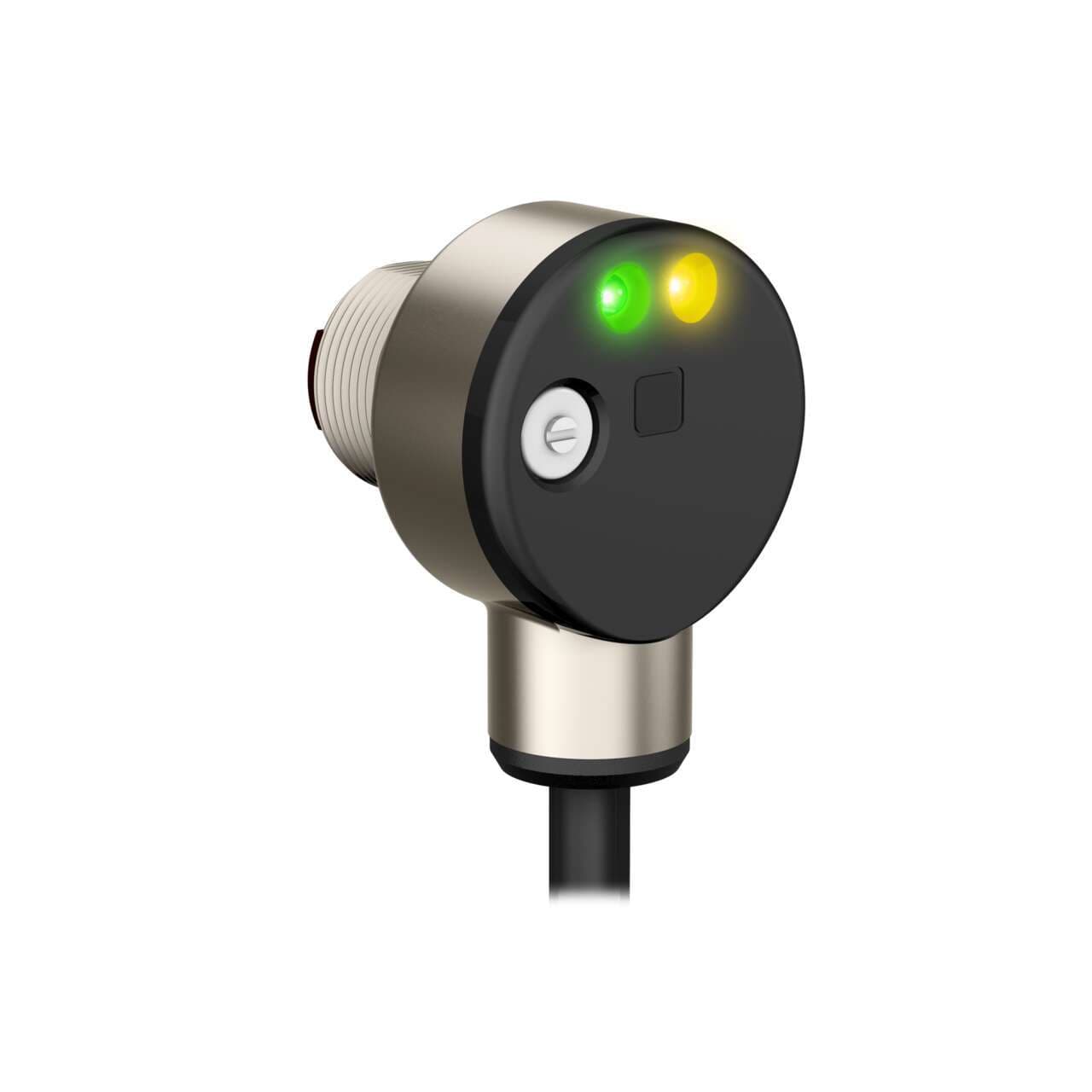

TM18 VN6DV EZ BEAM TM18: Diffuse (Red); Range: 500 mm; Input: 10-30 V dc; Outputs: NPN Complementary; 2 m (6.5 ft) Cable

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    US
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • Adjustments
    N/A
  • IP Rating
    IP67
  • Repeatability (µs)
    185
  • Number of Pins
    4
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    No QD
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3 ON/1.5 OFF
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Cable
  • Outputs
    NPN
  • Input/Output
    Discrete
  • Power
    DC
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Beam
    Visible Red LED
  • Max Sensing Distance (mm)
    500
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Proximity
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VN6DV on Powermatic Associates is $113.00. Order now.

About the product

Banner Engineering TM18VN6DV is a photo-electric sensor from the TM18 series, designed in a diffuse mode heavy-duty format. This sensor features a nickel-plated die-cast zinc housing with an acrylic lens. It is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. The TM18VN6DV operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67 NEMA 6 and comes in an M18 cylindrical threaded/barrel shape. This sensor includes 1 x digital output (NPN transistor), has a sensing distance of 500mm, and utilizes visible red light with a wavelength of 660 nm. Its response time is 3ms / 0.003 s, and it supports both Light-ON and Dark-ON operating modes. The thread size for installation is M18.
