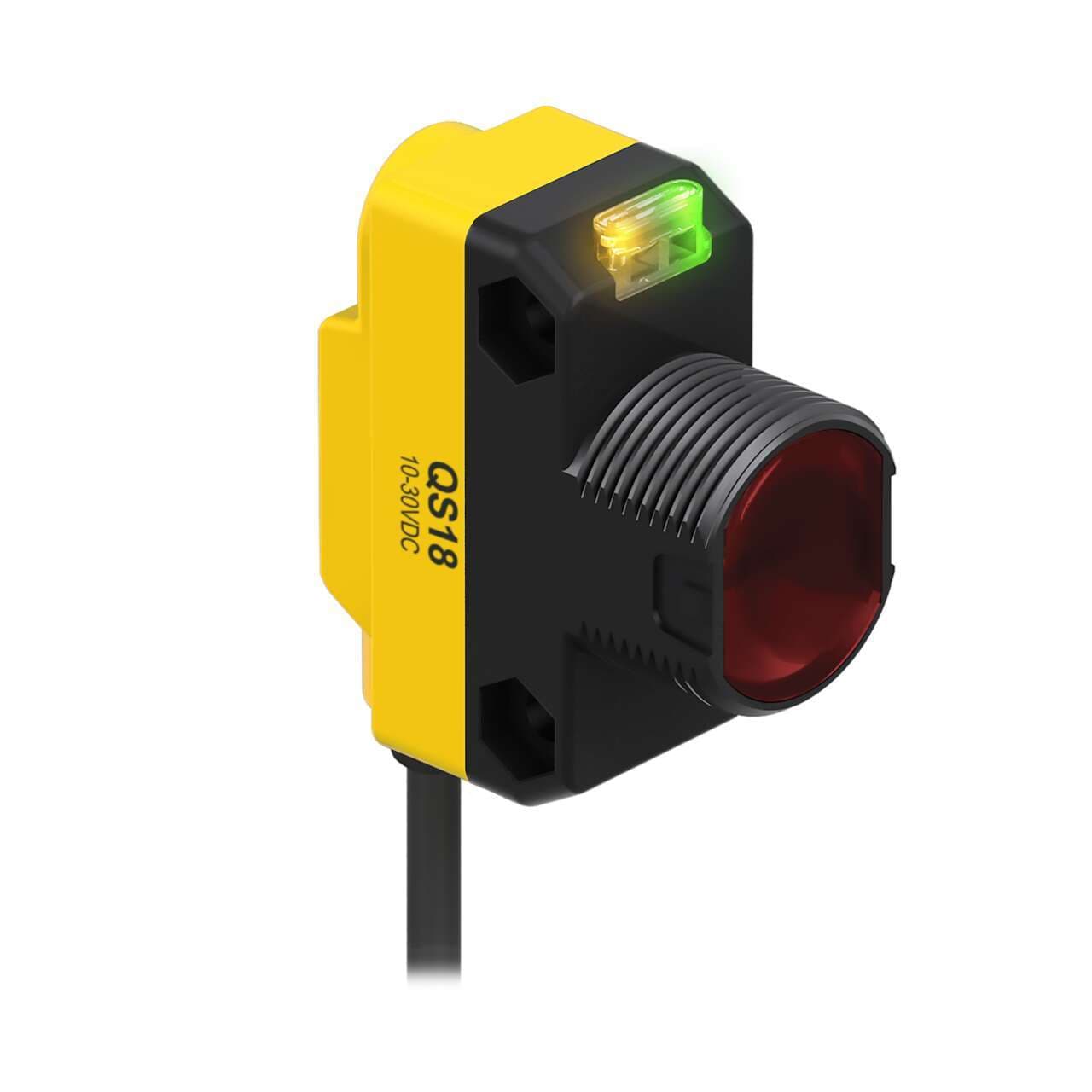

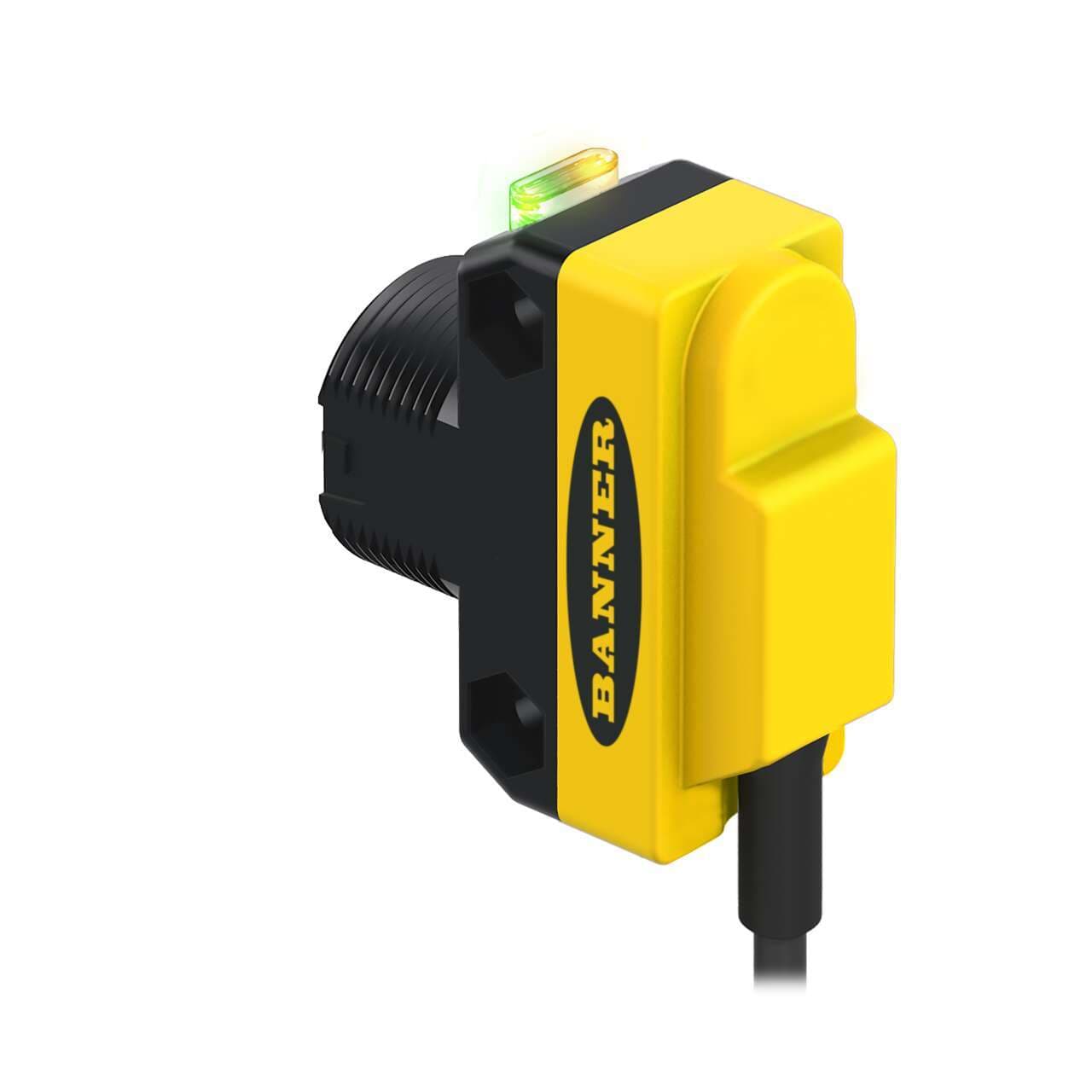

QS186E Banner Proximity Sensors

Product Details

• Weight
  72.57472 g
• Country Of Origin
  MX
• Sub-range name
  QS18 series
• Light Color
  Infrared (IR)
• Primary brand
  Banner Engineering
• Functions
  Photo-electric emitter green LED (power ON) yellow LED (light sensed)
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Mounting mode
  Threaded mount
• Material
  thermoplastic housing Acrylic lns.
• Product series / family name
  WORLD-BEAM series
• Thread size
  M18
• Shape
  Rectangular
• Main function
  Sensor (Photo-electric)
• Design
  through-beam system / opposed mode
• Degree of protection
  IP67 NEMA 6
• Compliant with standard(s)
  cURus CE
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Order code / Manufacturer SKU
  61618
• Ambient air temperature for operation
  -20...+70 °C
• Primary Housing Material
  ABS
Operation
N/A
IP Rating
IP67
Feature: Audible
No
Sensing Mode (Detailed)
Emitter
Output response time (ms)
N/A
Feature: Encapsulated
No
Cable Length (m)
2
Power Supply/Supply Voltage
10-30 V dc
Repeatability (µs)
100
Feature: Hazardous Area
No
Power
DC
Min Op. Temp. (°C)
-20
Special Feature: Water Detection
No
Adjustments
N/A
DeviceNet
No
Sensing Mode (General)
Opposed
Connection
Cable
Number of Pins
2
Indicator
LEDs
Outputs
N/A
Quick Disconnect Type
No QD
Lens Material
Acrylic
Feature: Chemical Resistant
No
Housing Style
Rectangular w/M18 Mount
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6
Feature: Timing (Hold/Delay)
No
IO Link
No
Max Sensing Distance (mm)
20000
Special Feature: Remote Teach
No
Max Op. Relative Humidity [%]
95% @ 50°C
Opposed Mode Emitter/Receiver
Emitter
Sensing Beam
Infrared LED
Max Op. Temp. (°C)
70
Delay at Power-up (ms)
100
Barrel Diameter (mm)
18
