Q4XFNCOD310-Q8 Banner Proximity Sensors

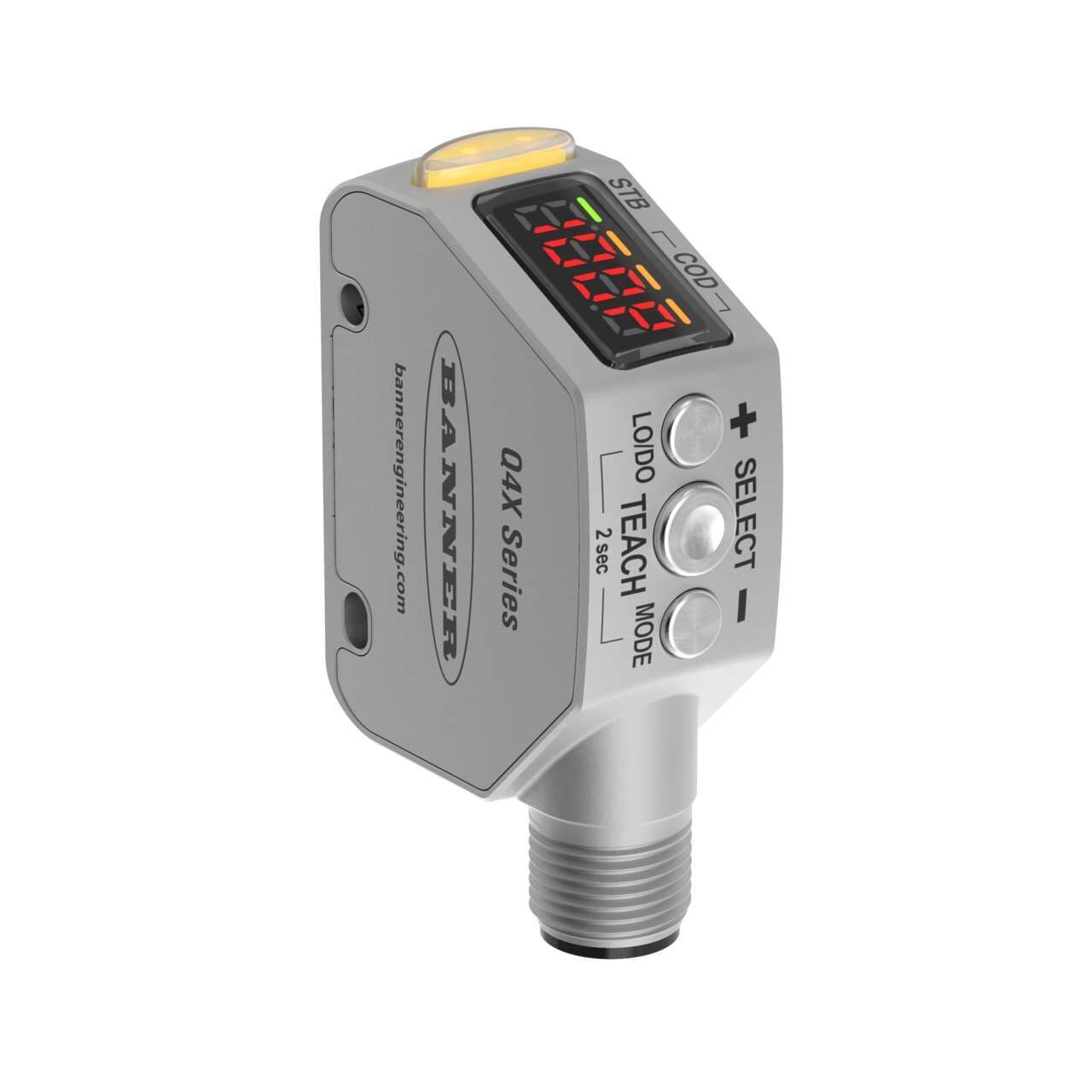

Banner Q4XFNCOD310-Q8 Q4X Series: Clear Object; Range: 310 mm; Input: 10-30 V dc; Outputs: 1 NPN; 5-pin M12 Integral QD; Flush Mount Housing
Banner

Part#:Q4XFNCOD310-Q8

Manufacturer:Banner

Alt. Part#:97633

Product Lifecycle:Active

In-stock parts: 4

Oct 19, 2024

Q4X Series: Clear Object; Range: 310 mm; Input: 10-30 V dc; Outputs: 1 NPN; 5-pin M12 Integral QD; Flush Mount Housing

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q4XFNCOD310-Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    US
  • Wireless
    No
  • SSI
    No
  • RS-422
    No
  • PROFINET
    No
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • RS-485
    No
  • RS-232
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Ecolab Certified
    Yes
  • Common Ethernet Protocol
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Clear Object Detection
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Remote Teach
    Yes
  • Max Ambient Light (Lux)
    5000
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    < 675 mW
  • Max Off-state Leakage Current (µA)
    5 @ 30 V dc
  • Alarm Output (mA)
    100
  • Laser Control
    Yes
  • Storage Temperature (°C)
    -25 to 75
  • Max Op. Relative Humidity Non-Condensing (%)
    95 at 55°C
  • Max Operating Temperature (°C)
    50
  • Spot Size (@ Reference Distance)
    2.0 mm x 0.8 mm @ 300 mm
  • Window Material
    Acrylic
  • Delay at Power-up (ms)
    750
  • Minimum Response Time (ms)
    1.5
  • Warm-up Time (minutes)
    10
  • IP Rating
    IP67; IP68; IP69
  • Min Operating Temperature (°C)
    -10
  • Output Protection
    Protected against continuous overload and short circuit
  • Discrete (Switched) Outputs
    1 NPN
  • Output Saturation Voltage NPN Outputs
    <1.0 V @ 100 mA
  • Vibration
    MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Max Discrete (Switched) Output (mA)
    100
  • Mechanical Shock
    MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Number of Pins
    4
  • Adjustments
    Push Button; Remote Teach
  • Sensing Beam Wavelength (nm)
    655
  • Minimum Sensing Distance (mm)
    35
  • Connection
    Integral QD
  • Max Sensing Distance (mm)
    310
  • Power Supply
    10-30 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Input/Output
    Discrete
  • Indicator
    Display; LED(s)
  • Laser Classification
    Class 1
  • Sensing Beam
    Visible Red Laser
  • Max Measurement Range
    >100 mm - <=500 mm
  • Housing Style
    Rectangular
  • Sensing Mode (General)
    Proximity
  • Device Type
    Sensor
  • Primary Housing Material
    Stainless Steel
  • Sensing Mode (Detailed)
    Background/Foreground Suppression
  • Power
    DC
  • PC Configurable
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q4XFNCOD310-Q8 Description

Banner Engineering Q4XFNCOD310-Q8 is a photo-electric sensor designed for clear object detection with an adjustable-field class 1 laser. It features a flush face housing for mounting and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a background/foreground suppression system that utilizes TEACH mode for configuration. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. Part of the Q4X series, it offers a high degree of protection rated at IP67, IP68, and IP69K, making it resistant to various chemicals. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It has a rectangular shape with a stainless steel housing and an acrylic LED window. The sensing distance ranges from 35mm to 310mm, utilizing a visible class 1 red laser with a wavelength of 655 nm. It includes 1 x digital output (NPN transistor) and features protection functions against overload and short-circuit.

Related documents Q4XFNCOD310-Q8 Specs

Q4XFNCOD310-Q8 187731.pdf
