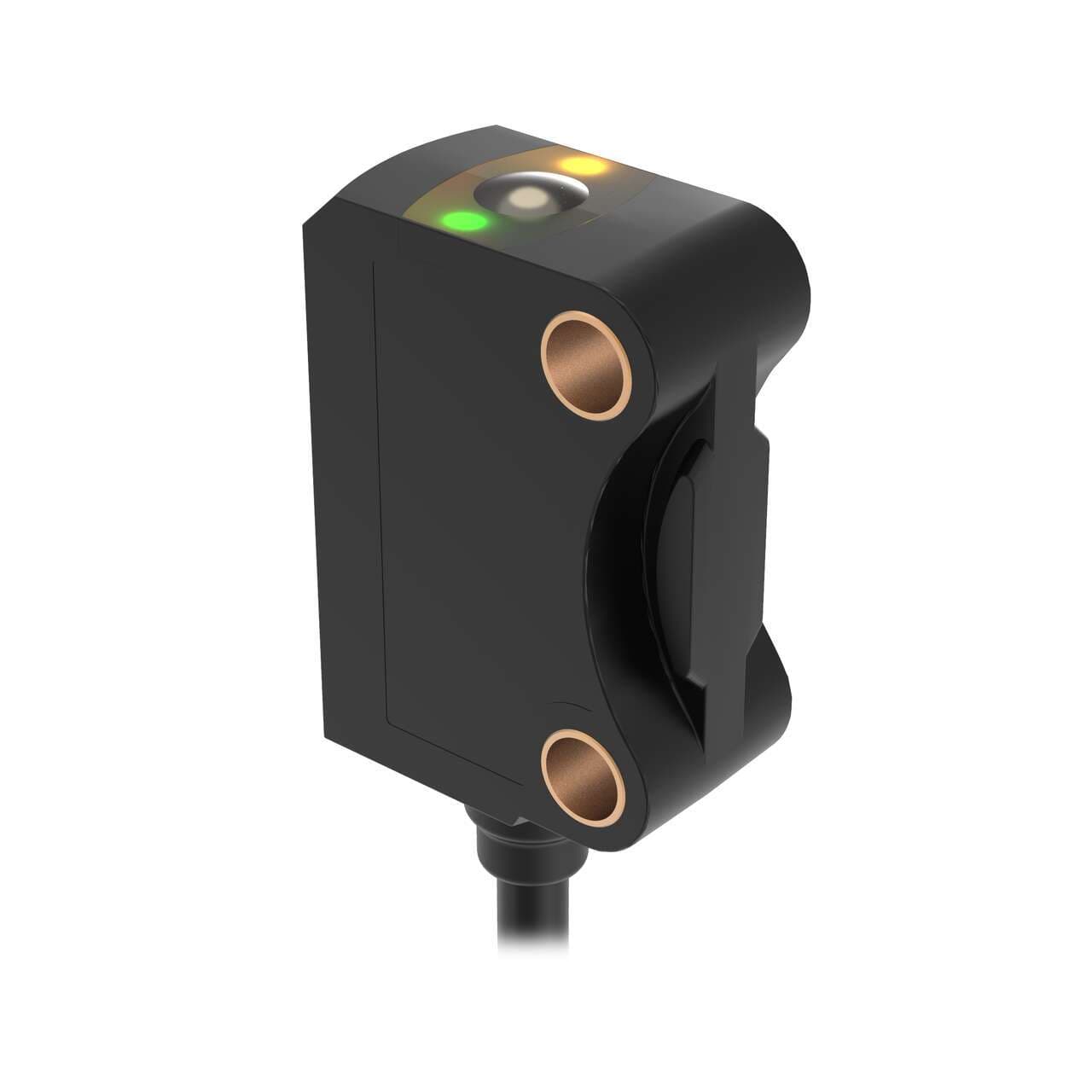

VS8LEJQ Banner Proximity Sensors

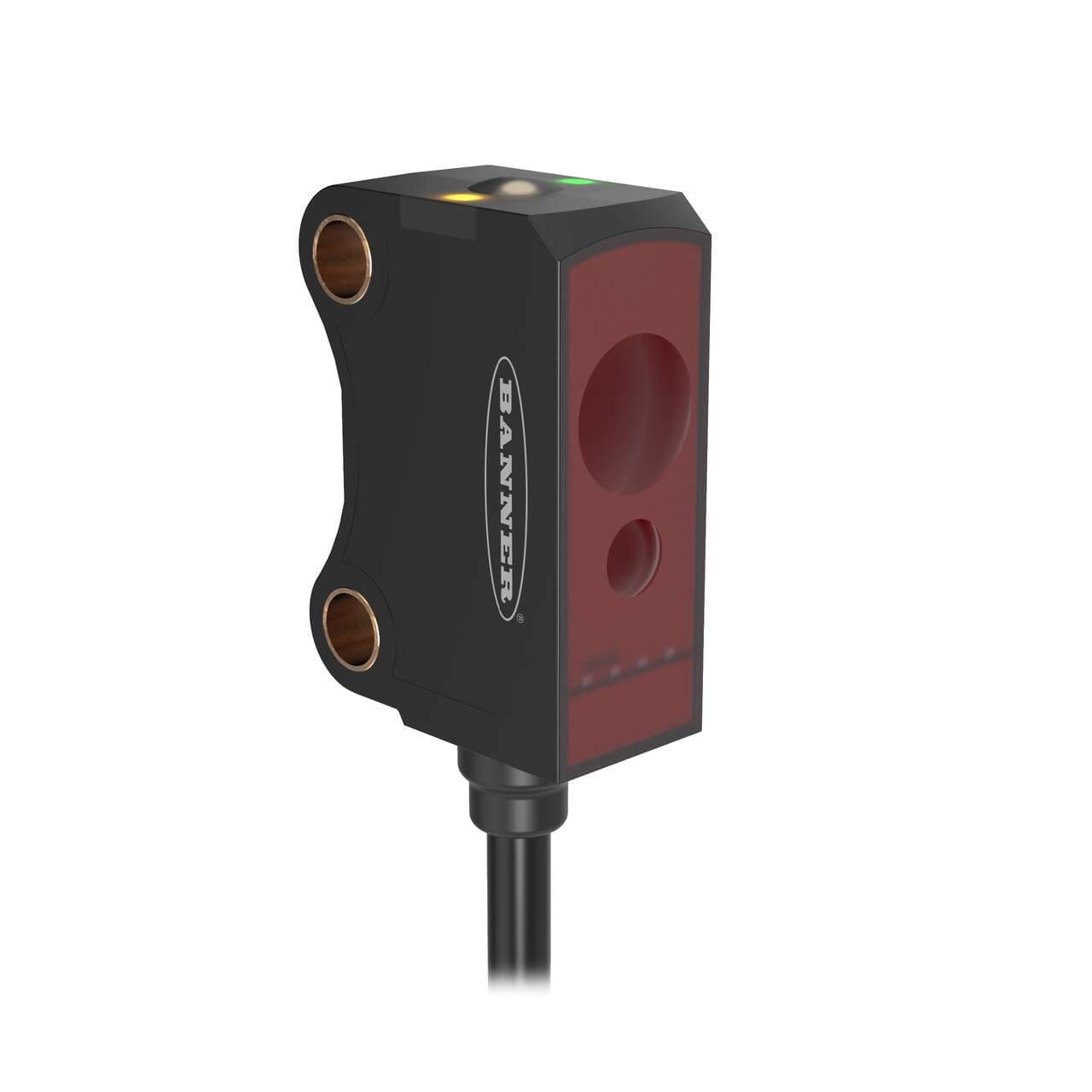

VS8LEJQ on Powermatic Associates
Banner
  • VS8LEJQ
  • VS8LEJQ

Part#:VS8LEJQ

Alt. Part#:803483

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 1, 2025

Product description

VS8 Series: Laser Emitter; Range: 3 m; Input: 10-30 V dc; Output: Not Applicable; 200 mm 4-pin M8 Pigtail QD

Product Details

  • Weight
    10.3418976 g
  • Country Of Origin
    DE
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Feature: Hazardous Area
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Barrel Diameter (mm)
    N/A
  • Adjustments
    N/A
  • Lens Material
    PMMA
  • NEMA Rating
    N/A
  • IP Rating
    IP67
  • Repeatability (µs)
    N/A
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    300
  • Number of Pins
    4
  • Sensing Beam Wavelength
    655
  • Special Feature: Remote Teach
    No
  • Operation
    N/A
  • Output response time (ms)
    0.5
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    50
  • Min Op. Temp. (°C)
    -20
  • Outputs
    N/A
  • Quick Disconnect Type
    M8 (Pico)
  • Connection
    Pigtail QD
  • Sensing Mode (General)
    Opposed
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    3000
  • Small Visible Spot
    Laser
  • Laser Classification
    Class 1
  • Housing Style
    Rectangular
  • Power
    DC
  • Primary Housing Material
    PUR
  • Sensing Mode (Detailed)
    Laser Emitter
  • Sensing Beam
    Visible Red Laser
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode
  • Degree of protection
    IP67
  • Compliant with standard(s)
    cULus CE
  • Main function
    Sensor (Photo-electric)
  • Connection type
    Pre-wired with 7.5" / 20cm pigtail terminated with 4-pin Pico-style M8 connector
  • Order code / Manufacturer SKU
    803483
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Rectangular
  • Wavelength
    655 nm
  • Ambient air temperature for operation
    -20...+50 °C
  • Sub-range name
    VS8 series
  • Functions
    Class 1 Laser photo-electric emitter green LED (power ON) yellow LED (output state)
  • Response time
    0.5ms / 0.0005 s
  • Material
    thermoplastic housing PMMA lns. PUR (cable)
  • Light Color
    Visible red

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8LEJQ on Powermatic Associates is $141.00. Order now.


About the product

Banner Engineering VS8LEJQ is a Class 1 laser photo-electric sensor designed for precise detection tasks. It features a thermoplastic housing and a polymethyl methacrylate (PMMA) lens, with a polyurethane (PUR) cable for connectivity. This sensor operates within an ambient air temperature range of -20 to +50°C and boasts a rapid response time of 0.5ms. It comes pre-wired with a 7.5" pigtail that terminates in a 4-pin Pico-style M8 connector, ensuring easy installation. The rectangular-shaped sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It utilizes a visible red light with a wavelength of 655 nm and is designed as a through-beam system for opposed mode operation, capable of sensing distances up to 3m. The VS8LEJQ, part of the VS8 series, is protected against ingress with an IP67 rating, making it suitable for a variety of industrial applications.
