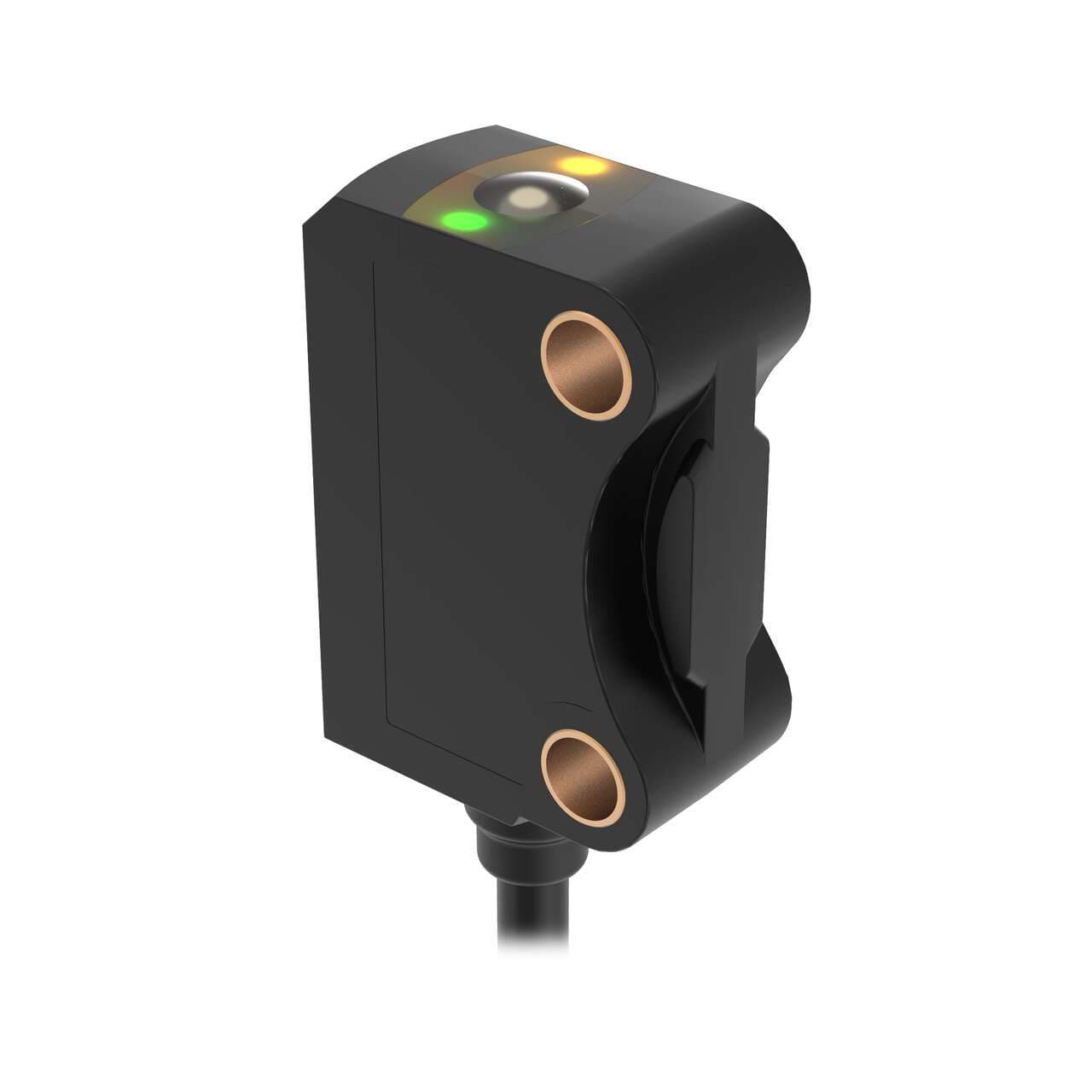

VS8LEJ Banner Proximity Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  DE
• IO Link
  No
• DeviceNet
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Feature: Encapsulated
  No
• Feature: Timing (Hold/Delay)
  No
• Indicator
  LEDs
• Barrel Diameter (mm)
  N/A
• Adjustments
  N/A
• Opposed Mode Emitter/Receiver
  Emitter
• Lens Material
  PMMA
• Number of Pins
  4
• Delay at Power-up (ms)
  300
• IP Rating
  IP67
• NEMA Rating
  N/A
• Repeatability (µs)
  N/A
• Sensing Beam Wavelength
  655
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
Special Feature: Intrinsically Safe
No
Min Op. Temp. (°C)
-20
Output response time (ms)
0.5
Max Op. Temp. (°C)
50
Operation
N/A
Quick Disconnect Type
No QD
Connection
Cable
Power Supply/Supply Voltage
10-30 V dc
Outputs
N/A
Max Sensing Distance (mm)
3000
Laser Classification
Class 1
Small Visible Spot
Laser
Primary Housing Material
PUR
Sensing Mode (Detailed)
Laser Emitter
Sensing Mode (General)
Opposed
Housing Style
Rectangular
Power
DC
Sensing Beam
Visible Red Laser
Cable Length (m)
2
Primary brand
Banner Engineering
Functions
Class 1 Laser photo-electric emitter green LED (power ON) yellow LED (output state)
Shape
Rectangular
Compliant with standard(s)
cULus CE
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Wavelength
655 nm
Material
thermoplastic housing PMMA lns. PUR (cable)
Sub-range name
VS8 series
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Ambient air temperature for operation
-20...+50 °C
Main function
Sensor (Photo-electric)
Design
through-beam system / opposed mode
Degree of protection
IP67
Light Color
Visible red
Response time
0.5ms / 0.0005 s
Order code / Manufacturer SKU
803482
