QS18VP6FF100Q8 Banner Proximity Sensors

Name: QS18VP6FF100Q8
Brand: Banner
Price: 102 USD
Availability: InStock

Part#:QS18VP6FF100Q8

Alt. Part#:71882

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

8 in stock

Mar 29, 2025

Product description

WORLD-BEAM QS18 Series: Fixed-Field; Range: 100 mm cutoff; Output: Complementary Solid-State PNP; M12 Integral QD

Product Details

Weight
45.3592 g
Country Of Origin
MX
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
Adjustments
N/A
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Hazardous Area
No
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
NEMA Rating
NEMA 6
IP Rating
IP67
Repeatability (µs)
160
Number of Pins
4

Special Feature: Remote Teach

Sensing Beam Wavelength

630

Delay at Power-up (ms)

100

Special Feature: Water Detection

Max Op. Temp. (°C)

Output response time (ms)

0.85

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-20

Quick Disconnect Type

M12 (Euro)

Connection

Integral QD

Max Sensing Distance (mm)

100

Outputs

PNP

Power Supply/Supply Voltage

10-30 V dc

Primary Housing Material

ABS

Housing Style

Rectangular w/M18 Mount

Input/Output

Discrete

Sensing Mode (General)

Proximity

Small Visible Spot

LED

Sensing Mode (Detailed)

Background Suppression (Fixed)

Power

Sensing Beam

Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FF100Q8 on Powermatic Associates is $102.00. Order now.

About the product

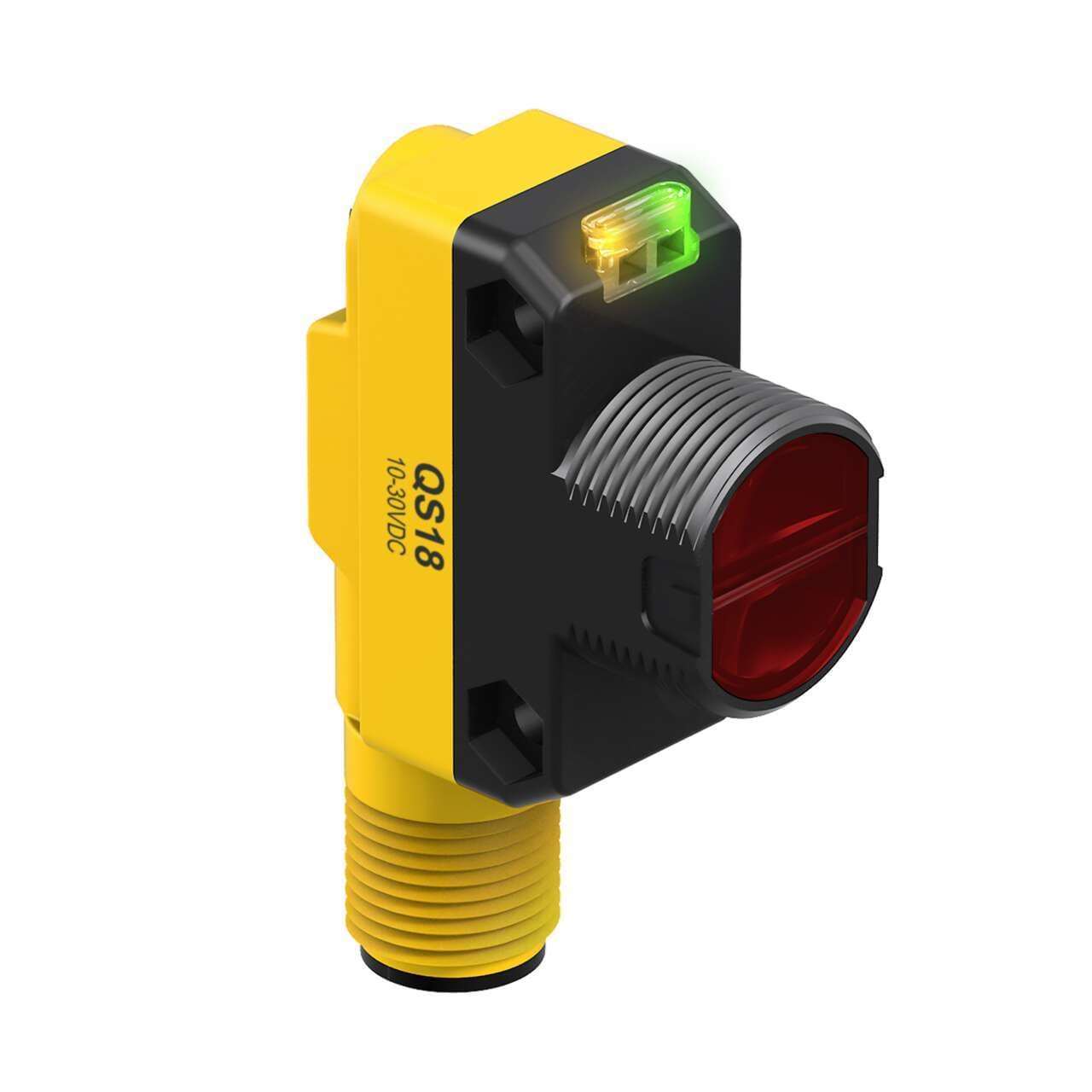

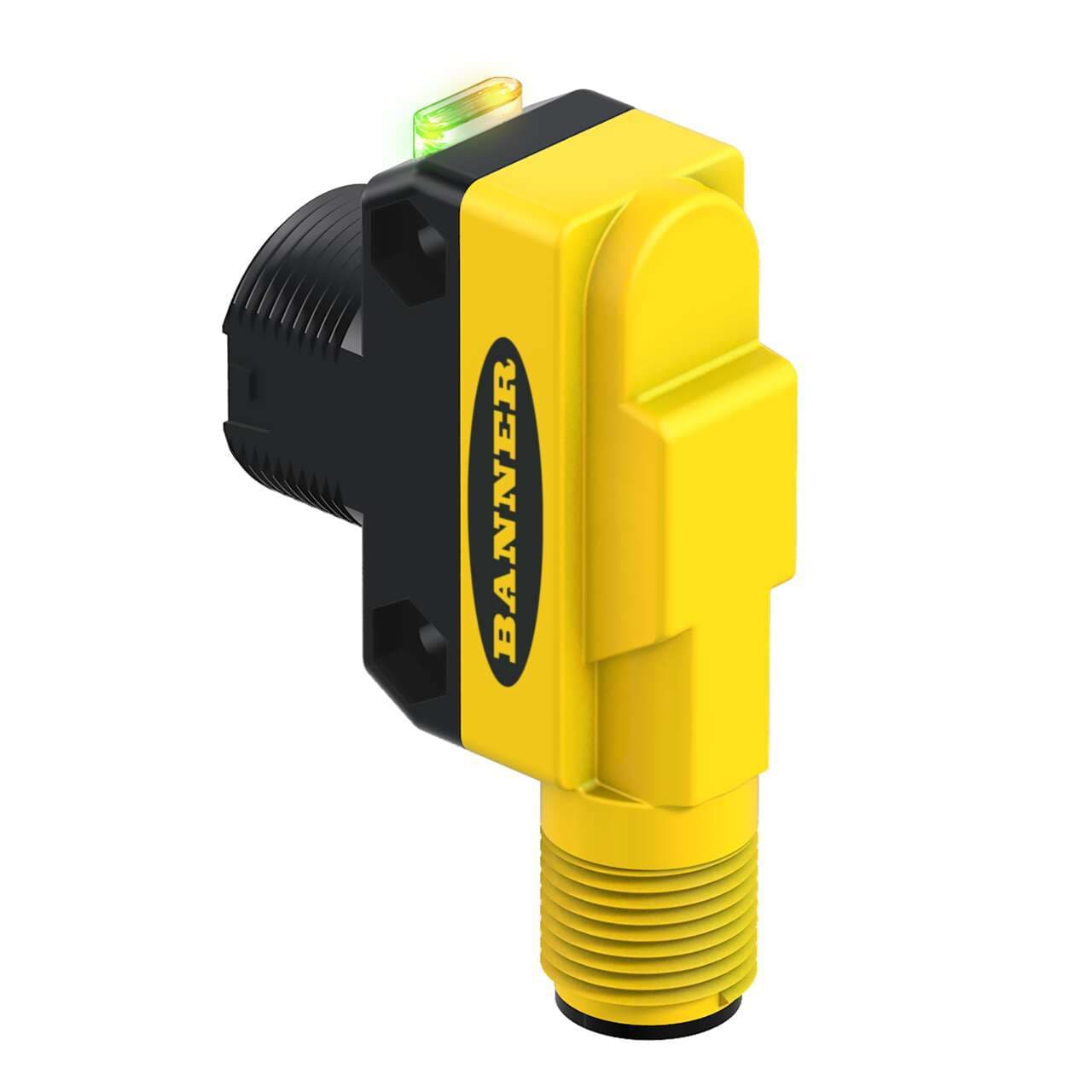

Banner Engineering QS18VP6FF100Q8 is a fixed-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and incorporates a background suppression system to enhance its detection capabilities. It comes pre-equipped with a 4-pin Euro-style M12 connector, ensuring easy and reliable connection. Part of the QS18 series, it offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. The QS18VP6FF100Q8 has a sensing distance of 100mm and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and features a single digital output (PNP transistor; complementary NO/NC) for versatile signaling options.

QS18VP6FF100Q8 Related Documents

197052.pdf
