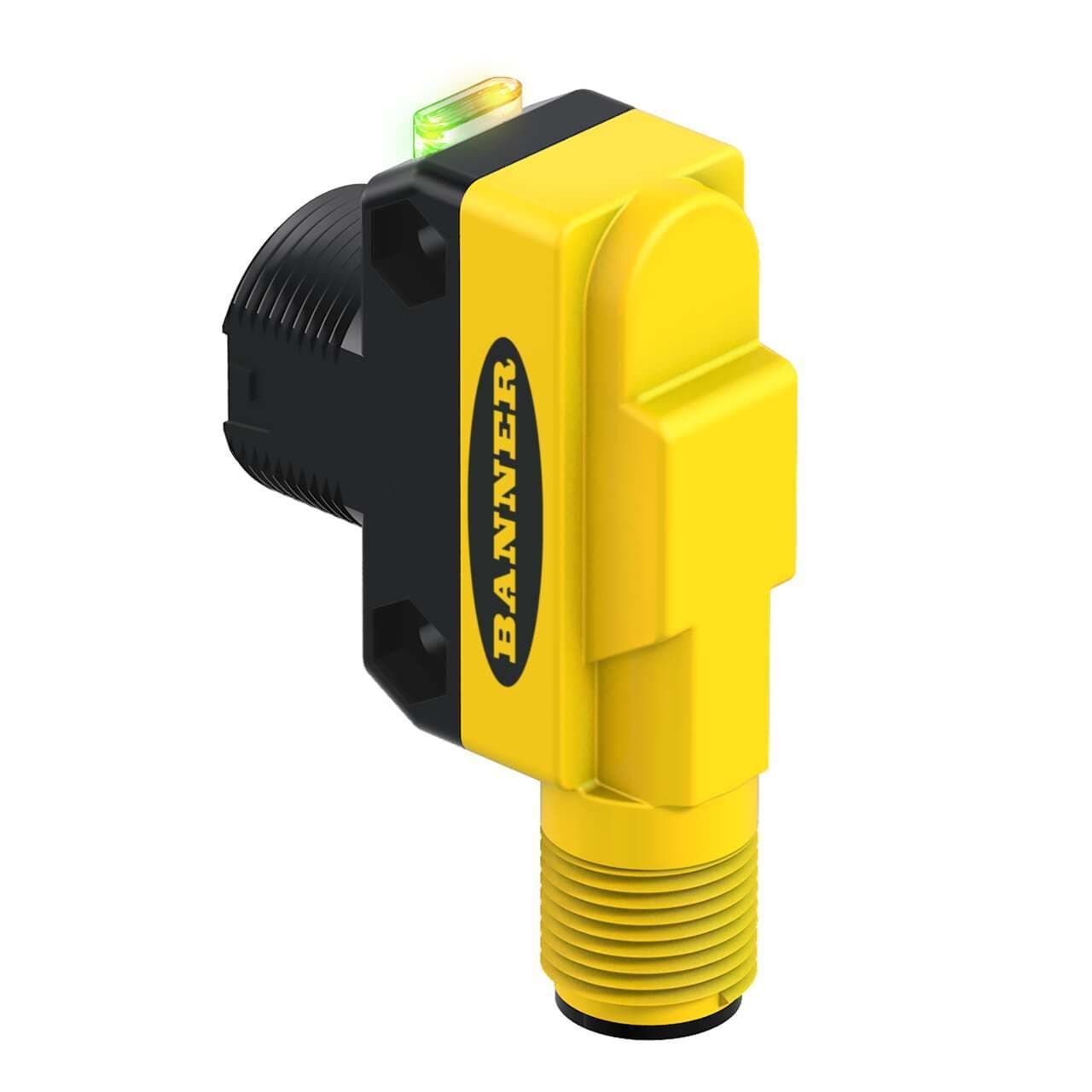

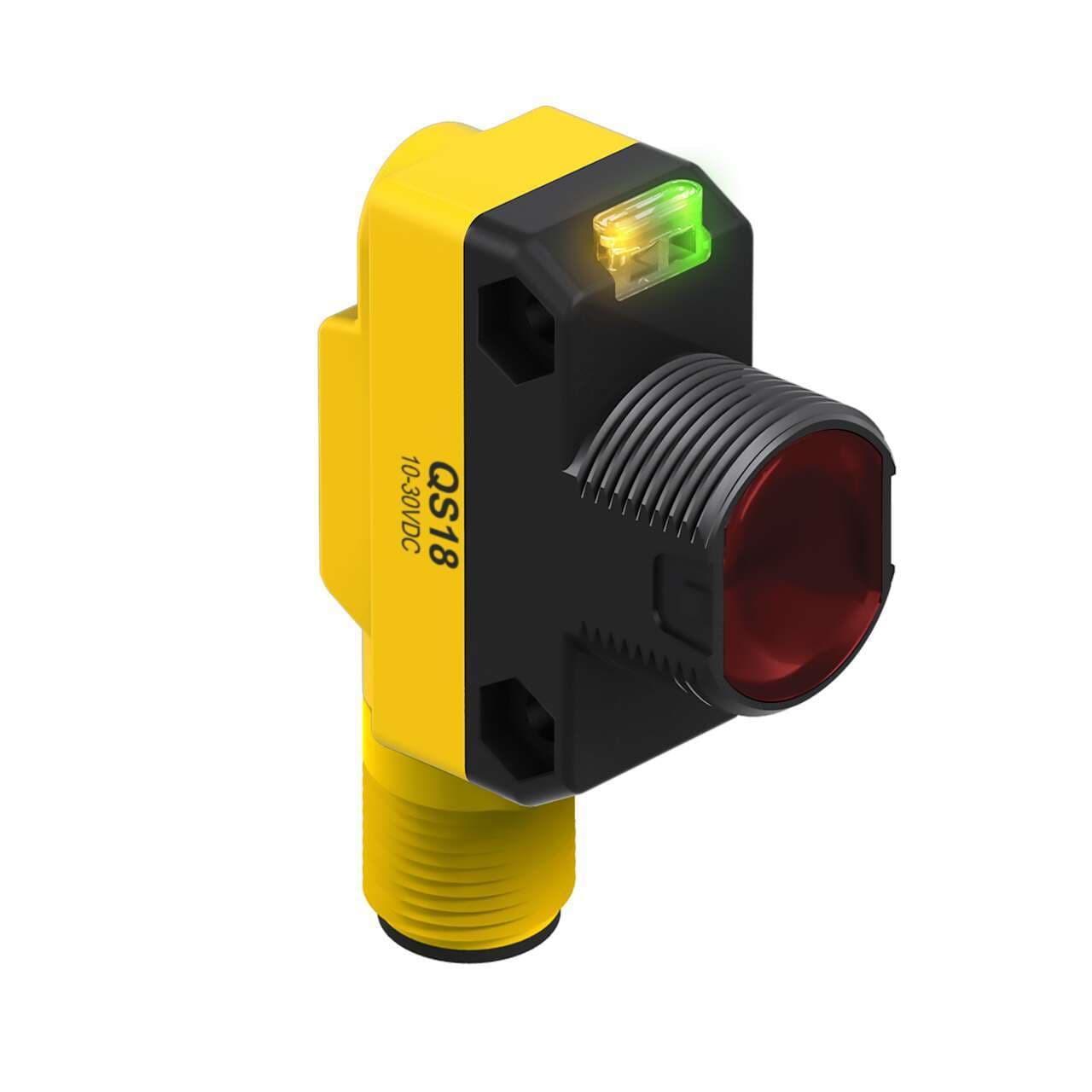

QS186EQ8 Banner Proximity Sensors

Product Details

• Weight
  44.452016 g
• Country Of Origin
  CN
• IO Link
  No
• DeviceNet
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Feature: Encapsulated
  No
• Feature: Timing (Hold/Delay)
  No
• Opposed Mode Emitter/Receiver
  Emitter
• Indicator
  LEDs
• Barrel Diameter (mm)
  18
• Adjustments
  N/A
• Lens Material
  Acrylic
• NEMA Rating
  NEMA 6
• Max Op. Relative Humidity [%]
  95% @ 50°C
• Number of Pins
  4
• Delay at Power-up (ms)
  100
• Repeatability (µs)
  100
• IP Rating
  IP67
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
Output response time (ms)
N/A
Special Feature: Intrinsically Safe
No
Max Op. Temp. (°C)
70
Operation
N/A
Connection
Integral QD
Min Op. Temp. (°C)
-20
Quick Disconnect Type
M12 (Euro)
Power Supply/Supply Voltage
10-30 V dc
Sensing Beam
Infrared LED
Max Sensing Distance (mm)
20000
Outputs
N/A
Primary Housing Material
ABS
Housing Style
Rectangular w/M18 Mount
Sensing Mode (Detailed)
Emitter
Power
DC
Sensing Mode (General)
Opposed
Product series / family name
WORLD-BEAM series
Primary brand
Banner Engineering
Sub-range name
QS18 series
Thread size
M18
Compliant with standard(s)
cURus CE
Main function
Sensor (Photo-electric)
Light Color
Infrared (IR)
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Material
thermoplastic housing Acrylic lns.
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Rectangular
Degree of protection
IP67 NEMA 6
Order code / Manufacturer SKU
66447
Design
through-beam system / opposed mode
Mounting mode
Threaded mount
Functions
Photo-electric emitter green LED (power ON) yellow LED (light sensed)
Ambient air temperature for operation
-20...+70 °C
