QS18VP6RQ5 Banner Electronic Components

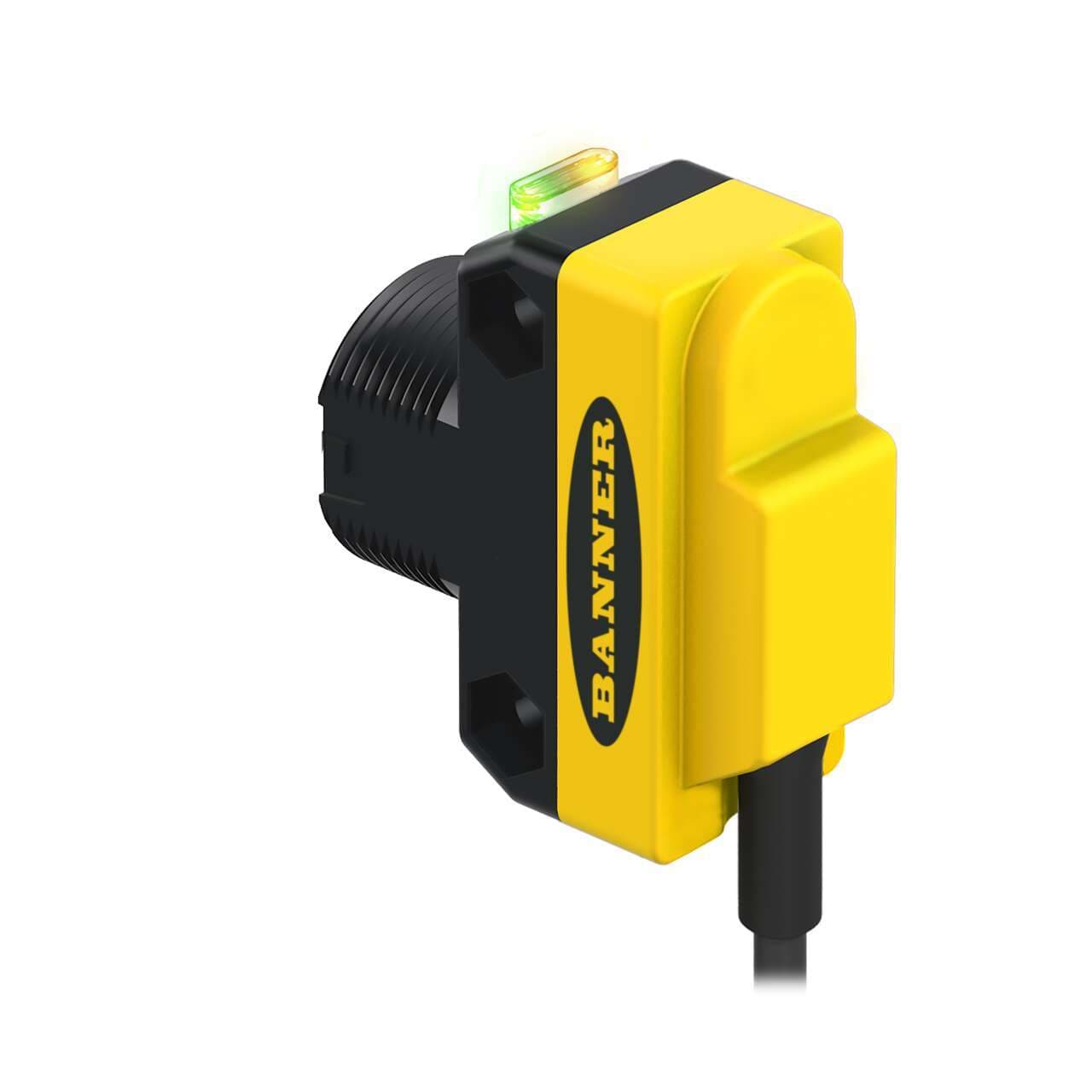

Banner QS18VP6RQ5 Banner Engineering QS18VP6RQ5 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the QS18 series. This sensor features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin M12 connector, facilitating straightforward connectivity. The QS18VP6RQ5 is housed in a rectangular, thermoplastic body with an acrylic lens, ensuring durability and clear signal transmission. It offers a sensing distance of up to 20 meters and supports both Light-ON and Dark-ON operating modes. The sensor provides a single digital output (PNP transistor; complementary NO/NC) and is powered by a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. This model is designed to withstand harsh environments, boasting an IP67 and NEMA 6 degree of protection against dust and water ingress.
Banner

Part#:QS18VP6RQ5

Manufacturer:Banner

Product Lifecycle:Active

In-stock parts: 1

Oct 5, 2024

Banner Engineering QS18VP6RQ5 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the QS18 series. This sensor features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin M12 connector, facilitating straightforward connectivity. The QS18VP6RQ5 is housed in a rectangular, thermoplastic body with an acrylic lens, ensuring durability and clear signal transmission. It offers a sensing distance of up to 20 meters and supports both Light-ON and Dark-ON operating modes. The sensor provides a single digital output (PNP transistor; complementary NO/NC) and is powered by a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. This model is designed to withstand harsh environments, boasting an IP67 and NEMA 6 degree of protection against dust and water ingress.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18VP6RQ5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6
  • Number of Pins
    4
  • Repeatability (µs)
    100
  • IP Rating
    IP67
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -20
  • Output response time (ms)
    0.75 ON/0.375 OFF
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    20000
  • Outputs
    PNP
  • Primary Housing Material
    ABS
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Receiver
  • Housing Style
    Rectangular w/M18 Mount
  • Power
    DC
  • Sensing Mode (General)
    Opposed
  • Sensing Beam
    Visible Red or IR
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Product series / family name
    WORLD-BEAM series
  • Shape
    Rectangular
  • Mounting mode
    Threaded mount
  • Material
    thermoplastic housing Acrylic lns.
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    20m
  • Operating mode
    Light-ON Dark-ON
  • Sub-range name
    QS18 series
  • Functions
    Photo-electric sensor receiver green LED (power ON) yellow LED (light sensed)
  • Degree of protection
    IP67 NEMA 6
  • Compliant with standard(s)
    cURus CE
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Order code / Manufacturer SKU
    64584
  • Digital outputs
    1 x digital output (PNP transistor)
  • Ambient air temperature for operation
    -20...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents QS18VP6RQ5 Specs

QS18VP6RQ5 QS18R CABLE.pdf
QS18VP6RQ5 QS18R CABLE.stp
