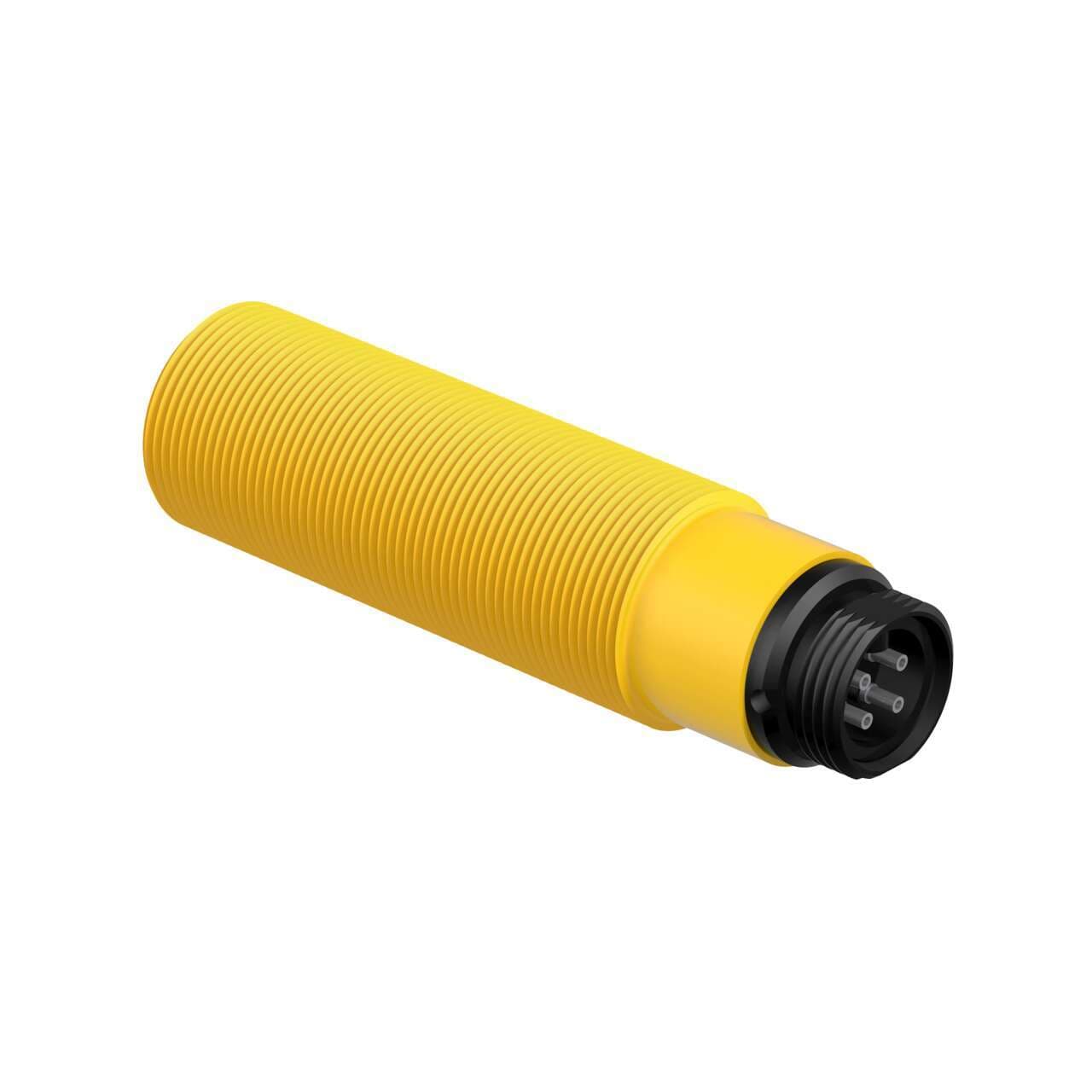

SMI30RN6RYQ Banner Proximity Sensors

Name: SMI30RN6RYQ
Brand: Banner
Price: 213 USD
Availability: InStock

Part#:SMI30RN6RYQ

Alt. Part#:35281

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 1, 2025

Product description

SMI30 Series: Receiver - Frequency A; Range: 60 m; Input: 10-30 V dc; Output: Dark Operate - I.S. Interface; 3-pin Mini Integral QD

Product Details

Weight
163.29312 g
Country Of Origin
MX
Feature: Audible
No
IO Link
No
Feature: Chemical Resistant
No
DeviceNet
No
Feature: Hazardous Area
Yes
Opposed Mode Emitter/Receiver
Receiver
Feature: Encapsulated
Yes
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Adjustments
N/A
Lens Material
Acrylic
Barrel Diameter (mm)
30
Max Op. Relative Humidity [%]
90% @ 50°C
IP Rating
IP67
Number of Pins
3
Repeatability (µs)
360
Delay at Power-up (ms)
N/A
NEMA Rating
NEMA 6P

Special Feature: Water Detection

Special Feature: Remote Teach

Max Op. Temp. (°C)

Special Feature: Intrinsically Safe

Yes

Output response time (ms)

Connection

Integral QD

Min Op. Temp. (°C)

-40

Operation

Dark Operate

Quick Disconnect Type

7/8 in. (Mini)

Power Supply/Supply Voltage

10-30 V dc

Input/Output

Discrete

Housing Style

Barrel

Outputs

NPN

Max Sensing Distance (mm)

140000

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Receiver

Sensing Mode (General)

Opposed

Power

Sensing Beam

Infrared LED

Sub-range name

SMI30 series

Functions

Intrinsically-safe photo-electric sensor receiver red LED (power ON)

Sensing distance

140m

Light Color

Infrared (IR)

Main function

Sensor (Photo-electric)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Design

through-beam system / opposed mode

Thread size

M30

Material

thermoplastic housing Acrylic lns.

Primary brand

Banner Engineering

Wavelength

880 nm

Digital outputs

1 x digital output (NPN transistor)

Compliant with standard(s)

CE ATEX Ex cFMus CSA NRTL/C Exia ATEX II 2 G Ex ib IIC T5 Ta I / 1 / Ex ib / IIC / T5 Ta I / 1 / AEx ib / IIC / T5 Ta IEEx Ex ib IIC T5 Ta IEC IECEx FMG 14.0029X ATEX FM12ATEX0094X FM CoC 0003046293 FM CoC 0003046293C

Shape

Cylindrical threaded/barrel

Connection type

Pre-equipped with 3-pin 7/8" Mini connector

Ambient air temperature for operation

-40...+70 °C

Operating mode

Dark-ON

Degree of protection

IP67 NEMA 6P

Response time

10ms / 0.01 s

Benefits

Very high excess gain Highly immune to noise

Order code / Manufacturer SKU

35281

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMI30RN6RYQ on Powermatic Associates is $213.00. Order now.

About the product

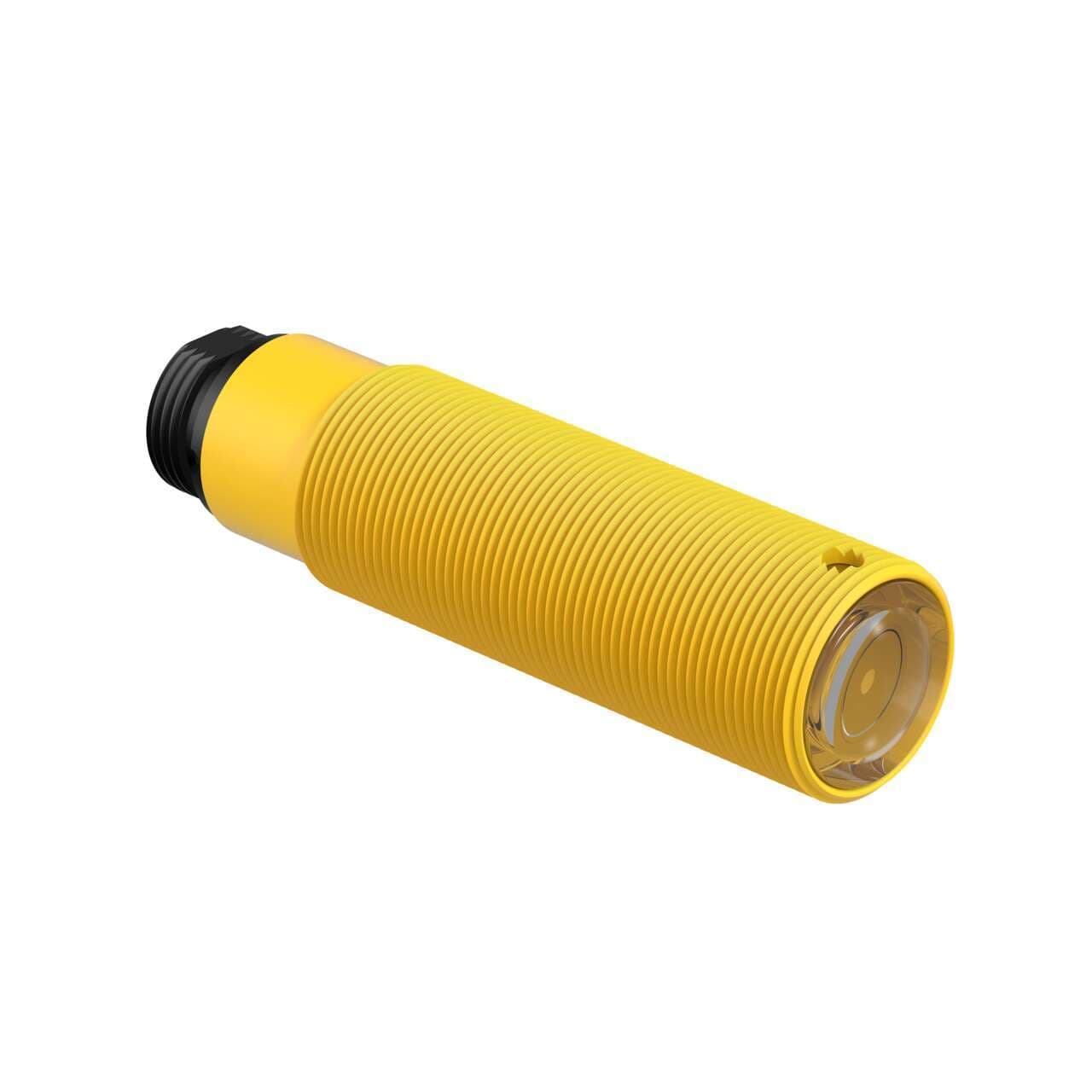

Banner Engineering SMI30RN6RYQ is a photo-electric sensor from the SMI30 series designed with a through-beam system, specifically functioning as the receiver component of an intrinsically-safe photo-electric sensor system. It features a thermoplastic housing with an acrylic lens and is equipped with a 3-pin 7/8" mini connector for connectivity. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function in ambient air temperatures ranging from -40 to +70 degrees Celsius and offers a degree of protection rated at IP67 NEMA 6P, making it suitable for harsh environmental conditions. The SMI30RN6RYQ has a cylindrical M30 threaded/barrel shape, includes 1 x digital output (NPN transistor), and provides a sensing distance of up to 60 meters. It utilizes infrared light with a wavelength of 880 nm and has a response time of 10ms (0.01 s). Its operating mode is Dark-ON.

SMI30RN6RYQ Related Documents
