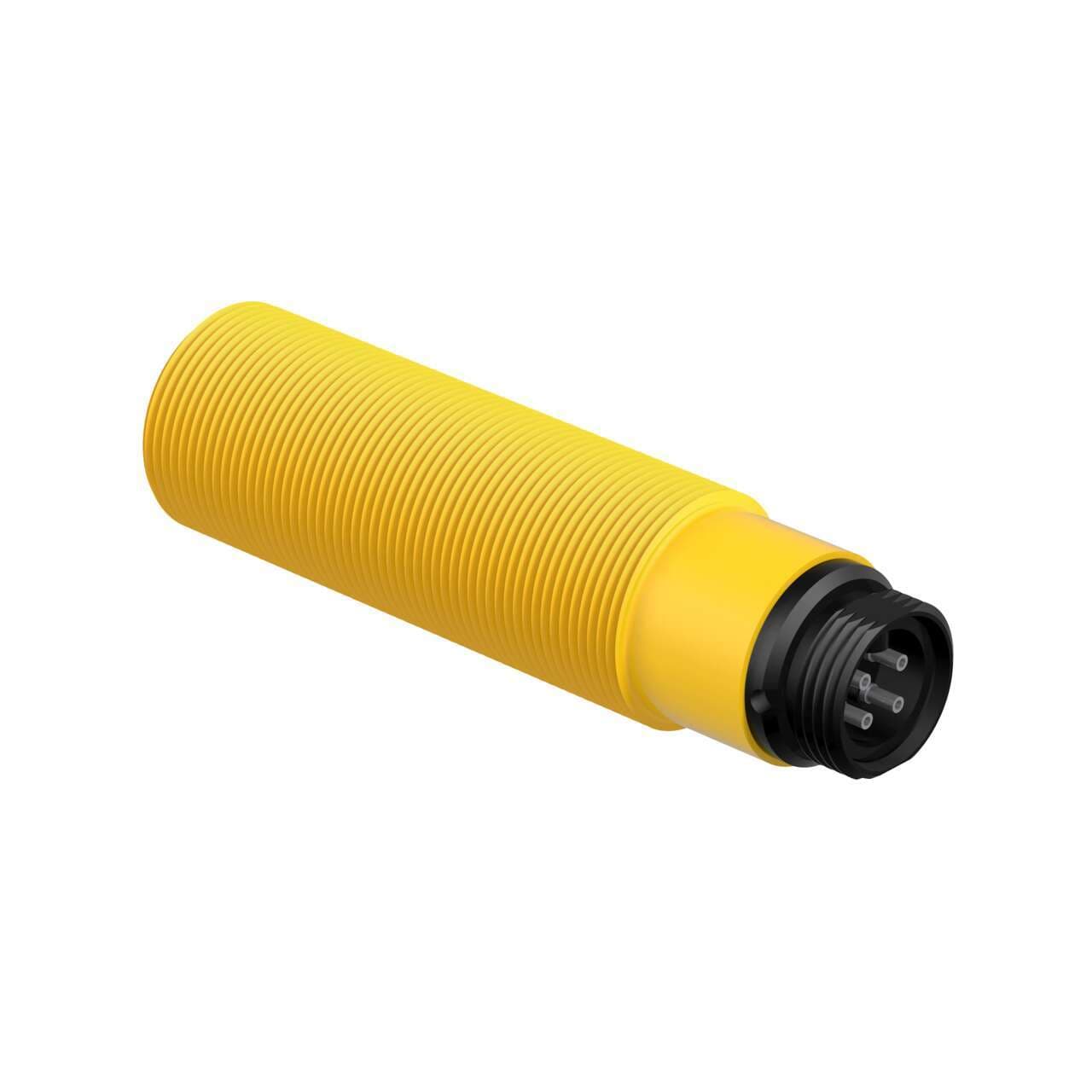

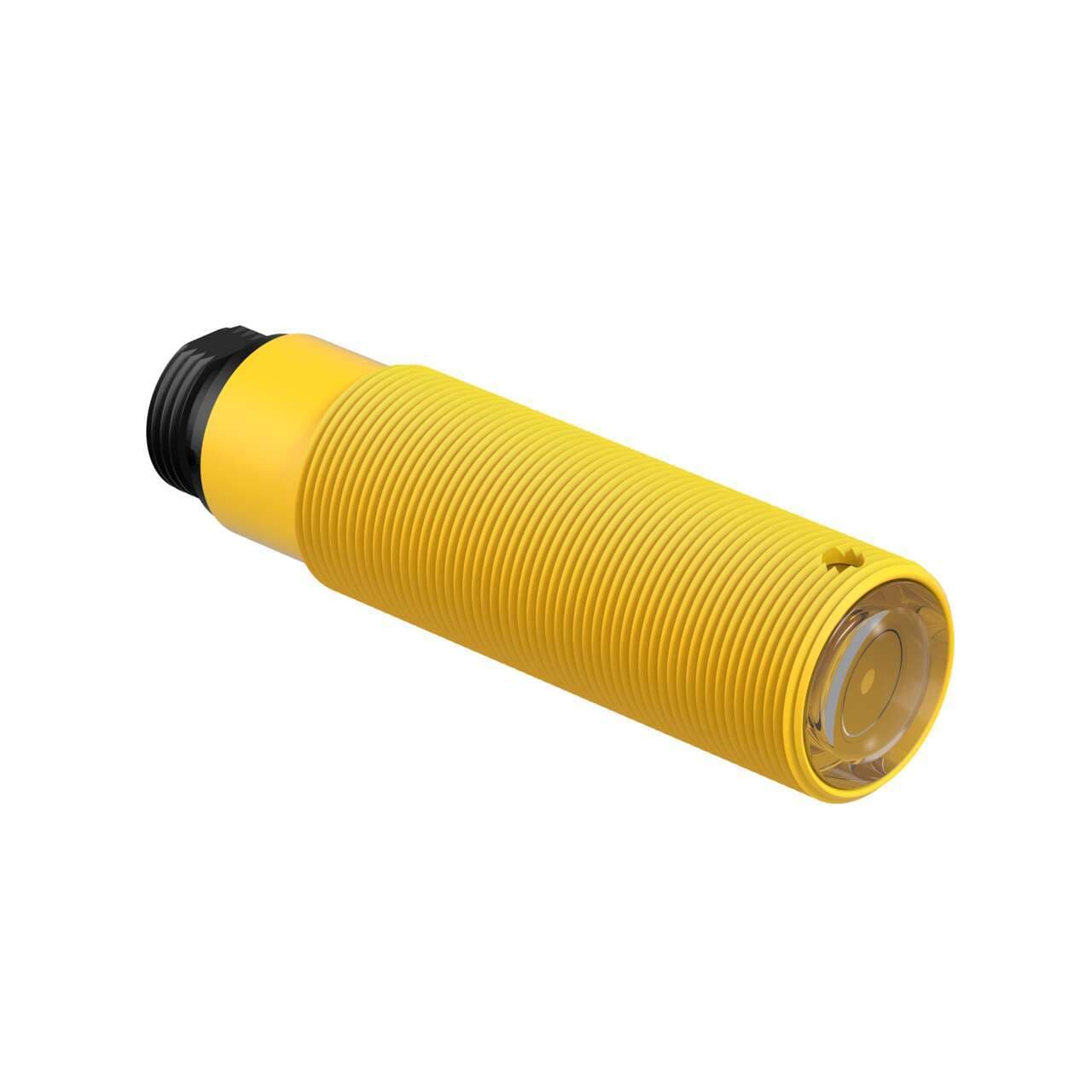

SMI30AN6RCQ Banner Proximity Sensors

Name: SMI30AN6RCQ
Brand: Banner

Banner SMI30AN6RCQ SMI30 Series: Receiver - Frequency C; Range: 140 m; Input: 10-30 V dc; Output: Light Operate - I.S. Interface; 3-pin Mini Integral QD

Part#:SMI30AN6RCQ

Manufacturer:Banner

Alt. Part#:35273

Product Lifecycle:Active

Get a quick Quote!

SMI30 Series: Receiver - Frequency C; Range: 140 m; Input: 10-30 V dc; Output: Light Operate - I.S. Interface; 3-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SMI30AN6RCQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
154.22128 g
Country Of Origin
US
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
Yes
Feature: Encapsulated
Yes
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
Receiver
Indicator
LEDs
Barrel Diameter (mm)
30
Adjustments
N/A
Special Feature: Remote Teach
No
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6P
IP Rating
IP67
Delay at Power-up (ms)
N/A
Repeatability (µs)
2300

Number of Pins

Special Feature: Water Detection

Special Feature: Intrinsically Safe

Yes

Output response time (ms)

Quick Disconnect Type

7/8 in. (Mini)

Max Op. Temp. (°C)

Operation

Light Operate

Connection

Integral QD

Power Supply/Supply Voltage

10-30 V dc

Min Op. Temp. (°C)

-40

Housing Style

Barrel

Primary Housing Material

Thermoplastic

Outputs

NPN

Max Sensing Distance (mm)

140000

Input/Output

Discrete

Sensing Mode (Detailed)

Receiver

Power

Sensing Beam

Infrared LED

Sensing Mode (General)

Opposed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SMI30AN6RCQ Description

Banner Engineering SMI30AN6RCQ is a sensor within the SMI30 series, designed as a through-beam system or opposed mode "C" modulation frequency photo-electric sensor. This intrinsically-safe photo-electric sensor (receiver alone) features a thermoplastic housing with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The SMI30AN6RCQ has a cylindrical threaded/barrel shape with an M30 thread size. It includes 1 x digital output (NPN transistor) and has a sensing distance of up to 140m. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s. Its operating mode is Light-ON.
