SMI30RN6RQ Banner Proximity Sensors

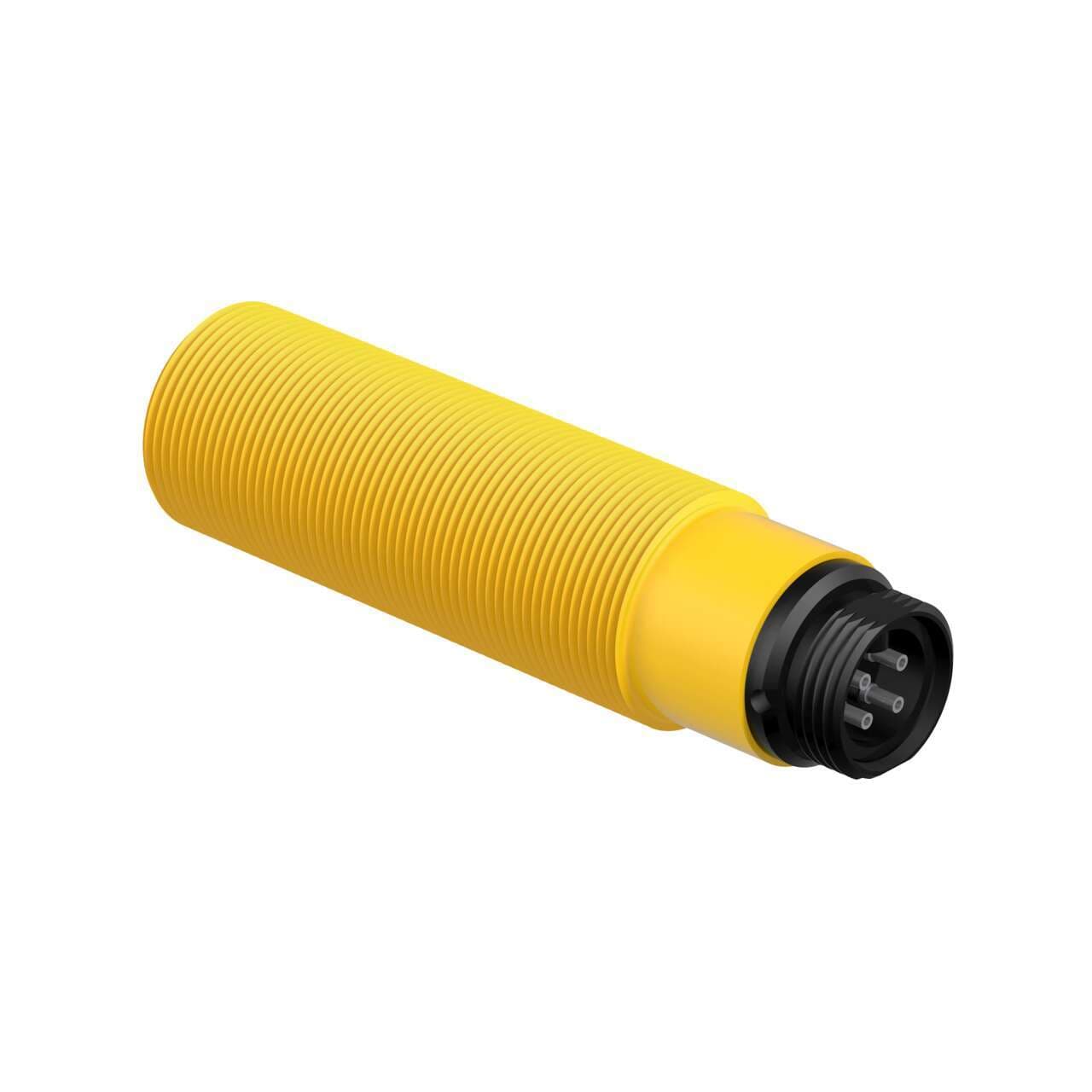

Banner SMI30RN6RQ SMI30 Series: Receiver - Frequency A; Range: 140 m; Input: 10-30 V dc; Output: Dark Operate - I.S. Interface; 3-pin Mini Integral QD
Banner

Part#:SMI30RN6RQ

Manufacturer:Banner

Alt. Part#:35274

Product Lifecycle:Active

Get a quick Quote!

SMI30 Series: Receiver - Frequency A; Range: 140 m; Input: 10-30 V dc; Output: Dark Operate - I.S. Interface; 3-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SMI30RN6RQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    163.29312 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Hazardous Area
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    30
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    Receiver
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    3
  • IP Rating
    IP67
  • Repeatability (µs)
    1000
  • Delay at Power-up (ms)
    N/A
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    10
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Special Feature: Intrinsically Safe
    Yes
  • Operation
    Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Integral QD
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    140000
  • Sensing Mode (General)
    Opposed
  • Power
    DC
  • Input/Output
    Discrete
  • Outputs
    NPN
  • Sensing Mode (Detailed)
    Receiver
  • Sensing Beam
    Infrared LED
  • Housing Style
    Barrel
  • Sub-range name
    SMI30 series
  • Sensing distance
    140m
  • Response time
    10ms / 0.01 s
  • Functions
    Intrinsically-safe photo-electric sensor receiver red LED (power ON)
  • Shape
    Cylindrical threaded/barrel
  • Operating mode
    Dark-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode
  • Thread size
    M30
  • Digital outputs
    1 x digital output (NPN transistor)
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Infrared (IR)
  • Connection type
    Pre-equipped with 3-pin 7/8" Mini connector
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    880 nm
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    35274
  • Degree of protection
    IP67 NEMA 6P
  • Compliant with standard(s)
    CE ATEX Ex cFMus CSA NRTL/C Exia ATEX II 2 G Ex ib IIC T5 Ta I / 1 / Ex ib / IIC / T5 Ta I / 1 / AEx ib / IIC / T5 Ta IEEx Ex ib IIC T5 Ta IEC IECEx FMG 14.0029X ATEX FM12ATEX0094X FM CoC 0003046293 FM CoC 0003046293C
  • Benefits
    Very high excess gain Highly immune to noise

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SMI30RN6RQ Description

Banner Engineering SMI30RN6RQ is a sensor within the SMI30 series, designed as a through-beam system or opposed mode "A" modulation frequency photo-electric sensor. This intrinsically-safe photo-electric sensor features a receiver alone, housed in a thermoplastic with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The SMI30RN6RQ has a cylindrical threaded/barrel shape with an M30 thread size. It includes 1 x digital output (NPN transistor), can sense objects up to 140m away, and utilizes infrared (IR) light with a wavelength of 880 nm. The sensor's response time is 10ms / 0.01 s, and it operates in a Dark-ON mode.

Related documents SMI30RN6RQ Specs

SMI30RN6RQ 35331.pdf
