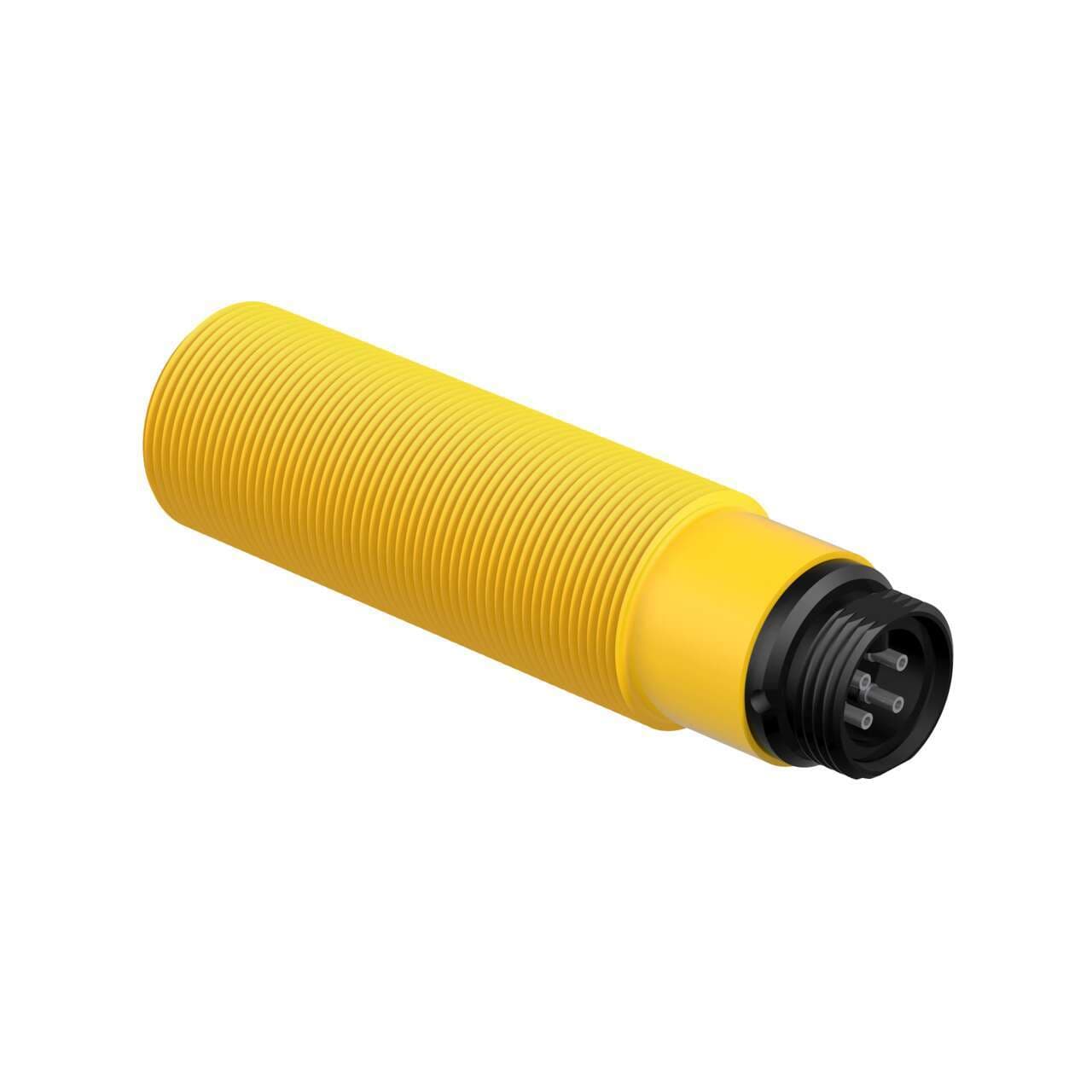

SMI306EQ Banner Proximity Sensors

Product Details

• Weight
  154.22128 g
• Country Of Origin
  MX
• IO Link
  No
• DeviceNet
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  Yes
• Indicator
  LEDs
• Feature: Encapsulated
  Yes
• Feature: Timing (Hold/Delay)
  No
• Opposed Mode Emitter/Receiver
  Emitter
• Barrel Diameter (mm)
  30
• Adjustments
  N/A
• Max Op. Relative Humidity [%]
  90% @ 50°C
• Lens Material
  Acrylic
• IP Rating
  IP67
• NEMA Rating
  NEMA 6P
• Delay at Power-up (ms)
  N/A
• Number of Pins
  3
• Repeatability (µs)
  1000
Max Op. Temp. (°C)
70
Special Feature: Intrinsically Safe
Yes
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
Output response time (ms)
10
Operation
N/A
Min Op. Temp. (°C)
-40
Quick Disconnect Type
7/8 in. (Mini)
Connection
Integral QD
Power Supply/Supply Voltage
10-30 V dc
Primary Housing Material
Thermoplastic
Outputs
N/A
Housing Style
Barrel
Max Sensing Distance (mm)
140000
Sensing Mode (Detailed)
Emitter
Sensing Mode (General)
Opposed
Power
DC
Sensing Beam
Infrared LED
Main function
Sensor (Photo-electric)
Functions
Intrinsically-safe photo-electric emitter red LED (power ON)
Connection type
Pre-equipped with 3-pin 7/8" Mini connector
Ambient air temperature for operation
-40...+70 °C
Benefits
Very high excess gain Highly immune to noise
Wavelength
880 nm
Thread size
M30
Compliant with standard(s)
CE ATEX Ex cFMus CSA NRTL/C Exia ATEX II 2 G Ex ib IIC T5 Ta I / 1 / Ex ib / IIC / T5 Ta I / 1 / AEx ib / IIC / T5 Ta IEEx Ex ib IIC T5 Ta IEC IECEx FMG 14.0029X ATEX FM12ATEX0094X FM CoC 0003046293 FM CoC 0003046293C
Primary brand
Banner Engineering
Shape
Cylindrical threaded/barrel
Response time
10ms / 0.01 s
Sub-range name
SMI30 series
Design
through-beam system / opposed mode
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
35268
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Light Color
Infrared (IR)
Material
thermoplastic housing Acrylic lns.
