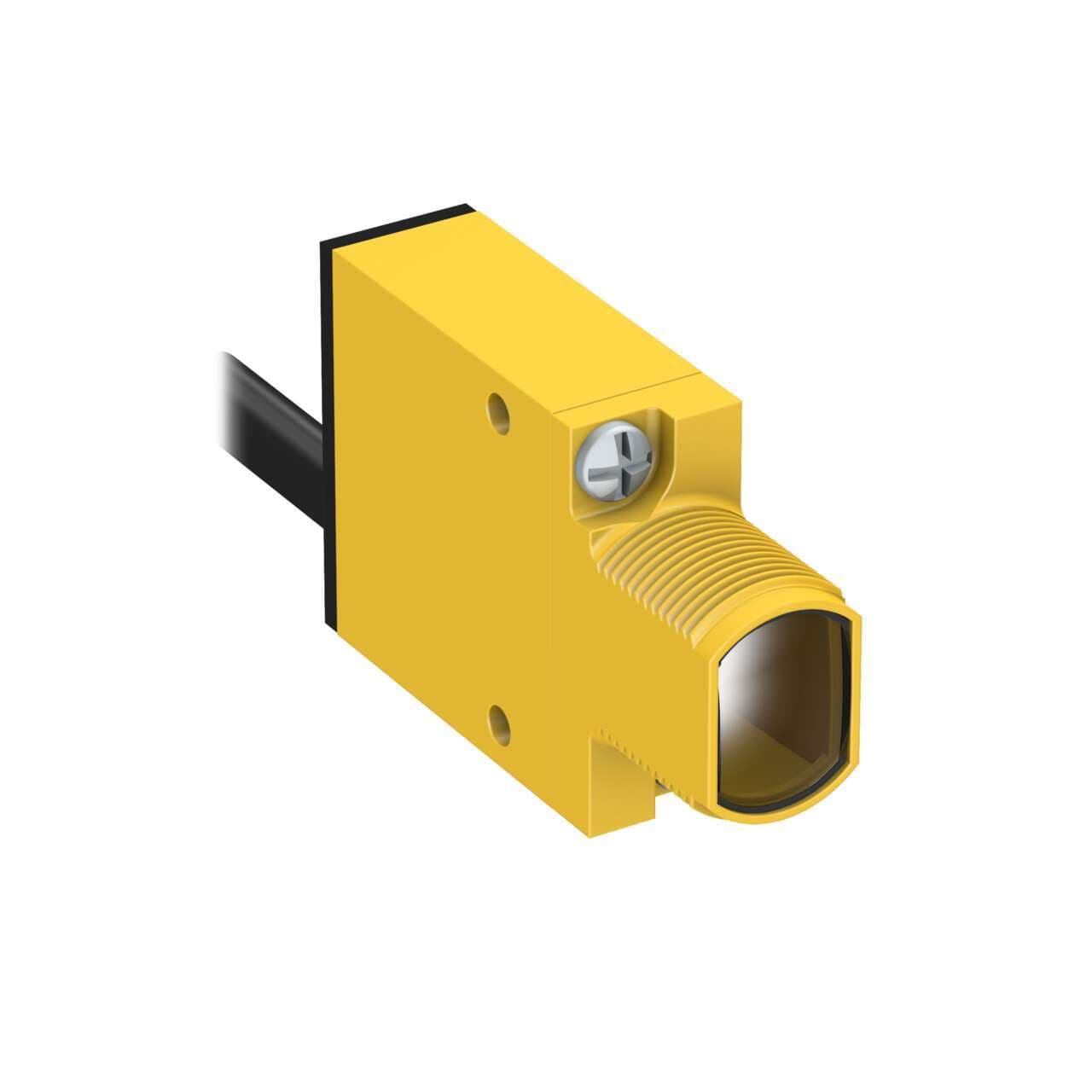

SM31ELQDP Banner Proximity Sensors

Name: SM31ELQDP
Brand: Banner
Price: 102 USD
Availability: InStock

Part#:SM31ELQDP

Manufacturer:Banner

Alt. Part#:29535

Product Lifecycle:Active

In-stock parts: 8

Nov 16, 2024

MINI-BEAM: Emitter; Range: 30 m; Input: 10-30 V dc; Output: Not Applicable; 4-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM31ELQDP Banner price in the box on the right side or send a quick quote.

Product Details

Weight
7.711064 g
Country Of Origin
US
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Feature: Audible
No
Feature: Encapsulated
Yes
Opposed Mode Emitter/Receiver
Emitter
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Barrel Diameter (mm)
18
Adjustments
Potentiometer
Lens Material
Acrylic
NEMA Rating
NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
Delay at Power-up (ms)
100
Max Op. Relative Humidity [%]
90% @ 50°C
IP Rating
IP67
Number of Pins
4
Repeatability (µs)
140

Max Op. Temp. (°C)

Operation

N/A

Special Feature: Water Detection

Special Feature: Intrinsically Safe

Quick Disconnect Type

M12 (Euro)

Output response time (ms)

Connection

Pigtail QD

Special Feature: Remote Teach

Min Op. Temp. (°C)

-20

Power Supply/Supply Voltage

10-30 V dc

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Emitter

Power

Sensing Beam

Infrared LED

Cable Length (m)

0.15

Housing Style

Rectangular w/M18 Mount

Max Sensing Distance (mm)

30000

Sensing Mode (General)

Opposed

Outputs

N/A

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector

Order code / Manufacturer SKU

29535

Thread size

M18

Design

through-beam system / opposed mode

Ambient air temperature for operation

-20...+70 °C

Mounting mode

Threaded mount

Compliant with standard(s)

cURus CSA CE

Sub-range name

SM312

Light Color

Infrared (IR)

Response time

1ms / 0.001 s

Product series / family name

MINI-BEAM series

Shape

Rectangular

Functions

Photo-electric emitter red LED (power ON) potentiometer adjustment

Degree of protection

IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13

Main function

Sensor (Photo-electric)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Primary brand

Banner Engineering

Material

thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SM31ELQDP Description

Banner Engineering SM31ELQDP is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor functions as an emitter alone, housed in a thermoplastic body with an acrylic lens. It features a pre-wired connection with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. The SM31ELQDP operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and is mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a high degree of protection with ratings of IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12. The sensor has a rectangular shape, can sense objects up to 30m away, emits infrared (IR) light, and responds in 1ms / 0.001 s.
