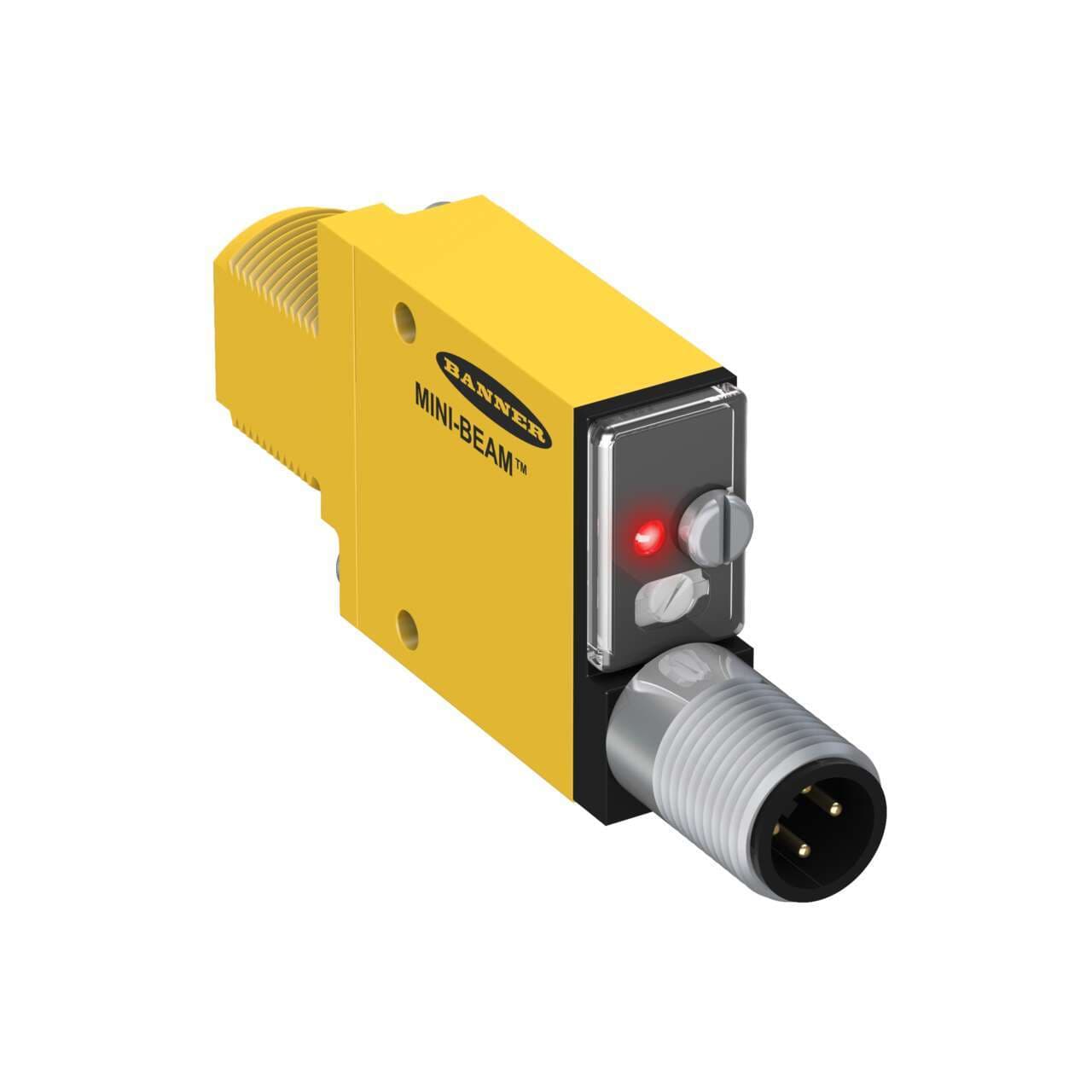

SM312DQD Banner Proximity Sensors

SM312DQD on Powermatic Associates
Banner

Part#:SM312DQD

Alt. Part#:26834

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Only 4 left in stock. Order Now!

Mar 12, 2025

Product description

MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    61.23492 g
  • Country Of Origin
    US
  • IO Link
    No
  • Feature: Audible
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • IP Rating
    IP67
  • Number of Pins
    4
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    100
  • Repeatability (µs)
    300
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    380
  • Outputs
    Bipolar (NPN & PNP)
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Mode (General)
    Proximity
  • Power
    DC
  • Sensing Beam
    Infrared LED
  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    SM312
  • Sensing distance
    380mm
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -20...+70 °C
  • Product series / family name
    MINI-BEAM series
  • Thread size
    M18
  • Operating mode
    Light-ON Dark-ON
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Material
    thermoplastic housing Acrylic lns.
  • Primary brand
    Banner Engineering
  • Design
    diffuse mode
  • Light Color
    Infrared (IR)
  • Degree of protection
    IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
  • Compliant with standard(s)
    cURus CSA CE
  • Functions
    Photo-electric sensor red LED (power ON) potentiometer adjustment
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Response time
    1ms / 0.001 s
  • Order code / Manufacturer SKU
    26834

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312DQD on Powermatic Associates is $148.00. Order now.


About the product

Banner Engineering SM312DQD is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values, and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a high degree of protection, rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, making it suitable for a wide range of environments. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). It provides a sensing distance of 380mm and uses infrared (IR) light, with a response time of 1ms / 0.001 s. The operating modes available are Light-ON and Dark-ON.
