SM312DBZQD Banner Proximity Sensors

SM312DBZQD on Powermatic Associates
Banner

Part#:SM312DBZQD

Alt. Part#:26914

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

MINI-BEAM: Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    70.760352 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Encapsulated
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Barrel Diameter (mm)
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Number of Pins
    4
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Repeatability (µs)
    300
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    Bipolar (NPN & PNP)
  • Max Sensing Distance (mm)
    300
  • Housing Style
    Rectangular
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Infrared LED
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312DBZQD on Powermatic Associates is $148.00. Order now.


About the product

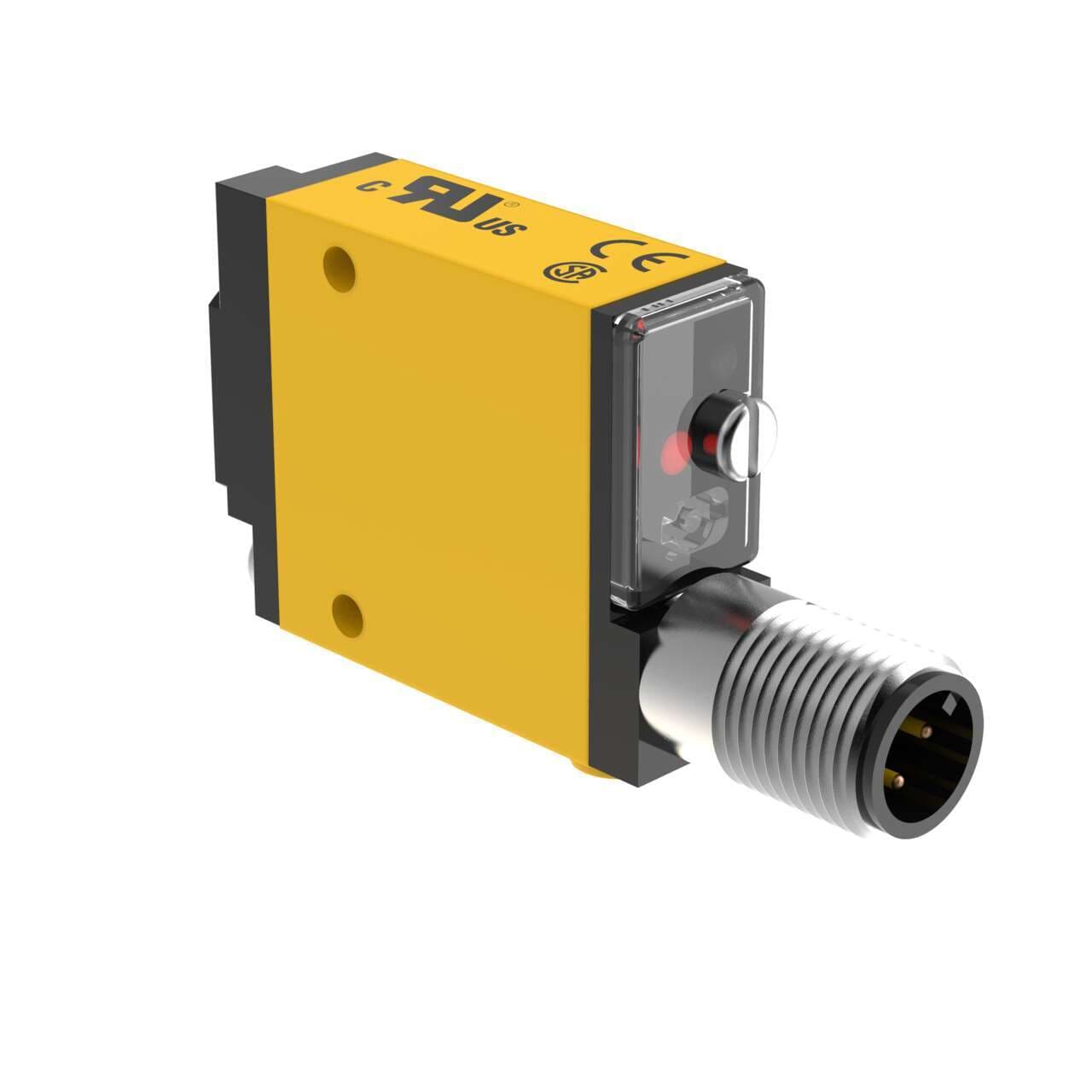

Banner Engineering SM312DBZQD is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -20 to +70°C. The SM312DBZQD offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, ensuring durability in various environmental conditions. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor) and has a sensing distance of 300mm. The sensor emits infrared (IR) light and has a response time of 1ms / 0.001 s, with operating modes that include Light-ON and Dark-ON.
