SM312CVMHSQD
Banner
Product Lifecycle: Active

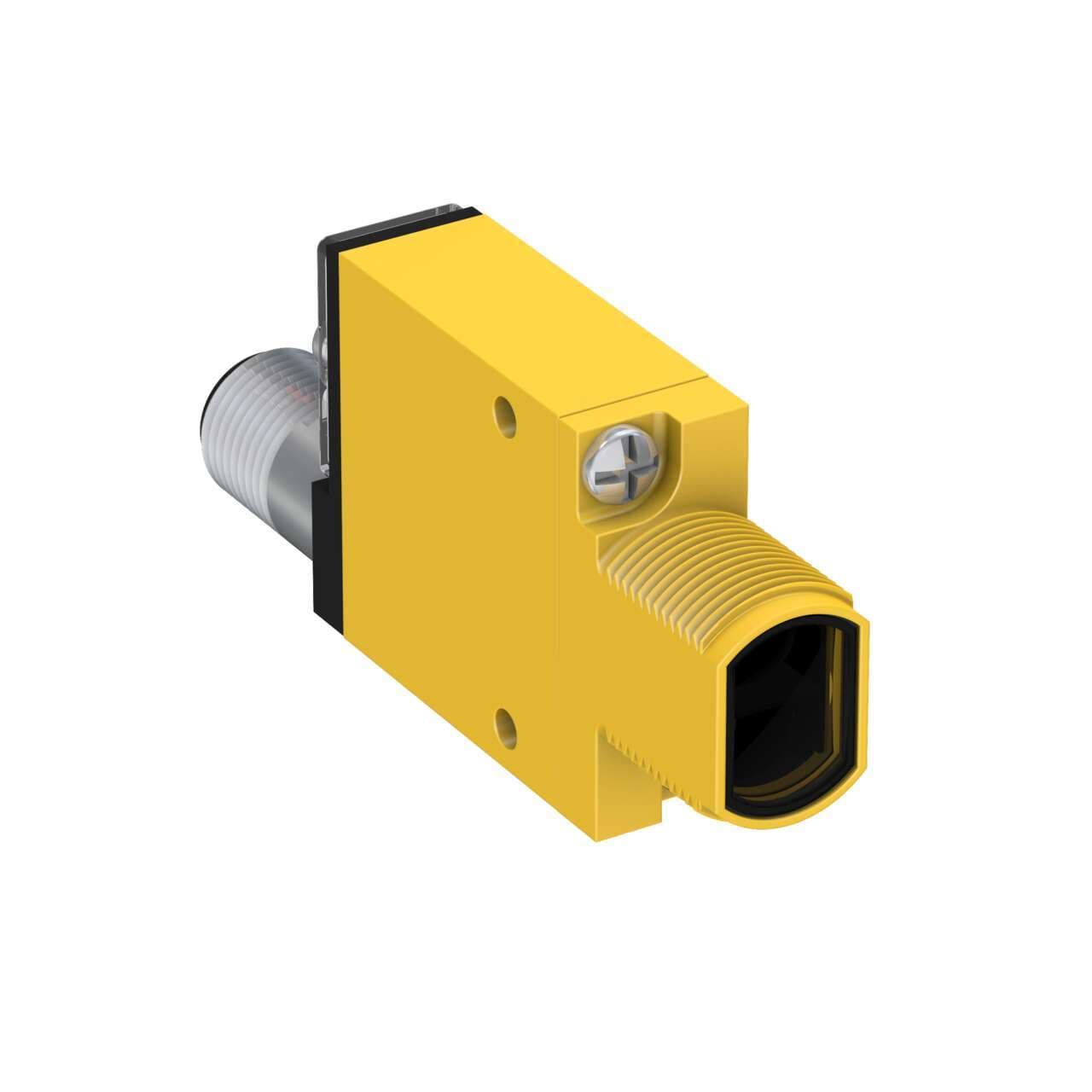

Banner Engineering SM312CVMHSQD is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor), with a sensing distance of 16mm. It emits visible red light and has a response time of 0.3ms / 0.0003 s, supporting both Light-ON and Dark-ON operating modes.
![SM312CVMHSQD](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F0560f2b7-01d7-4ed9-872e-0d506a79996a.jpeg&w=3840&q=75)
Banner Engineering SM312CVMHSQD is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor), with a sensing distance of 16mm. It emits visible red light and has a response time of 0.3ms / 0.0003 s, supporting both Light-ON and Dark-ON operating modes.
Product details
- IO LinkNo
- Feature: Chemical ResistantNo
- DeviceNetNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedYes
- Opposed Mode Emitter/ReceiverN/A
- Feature: Timing (Hold/Delay)No
- IndicatorLEDs
- Barrel Diameter (mm)18
- AdjustmentsPotentiometer
- Lens MaterialAcrylic
- IP RatingIP67
- NEMA RatingNEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Max Op. Relative Humidity [%]90% @ 50°C
- Number of Pins4
- Repeatability (µs)300
- Sensing Beam Wavelength650
- Delay at Power-up (ms)100
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachNo
- Special Feature: Intrinsically SafeNo
- Output response time (ms)0.3
- Max Op. Temp. (°C)70
- OperationLight/Dark Operate
- Min Op. Temp. (°C)-20
- Quick Disconnect TypeM12 (Euro)
- ConnectionIntegral QD
- Power Supply/Supply Voltage10-30 V dc
- OutputsBipolar (NPN & PNP)
- Housing StyleRectangular w/M18 Mount
- Sensing Mode (Detailed)Convergent
- Sensing Mode (General)Proximity
- Primary Housing MaterialThermoplastic
- Max Sensing Distance (mm)16
- Input/OutputDiscrete
- PowerDC
- Sensing BeamVisible Red LED
