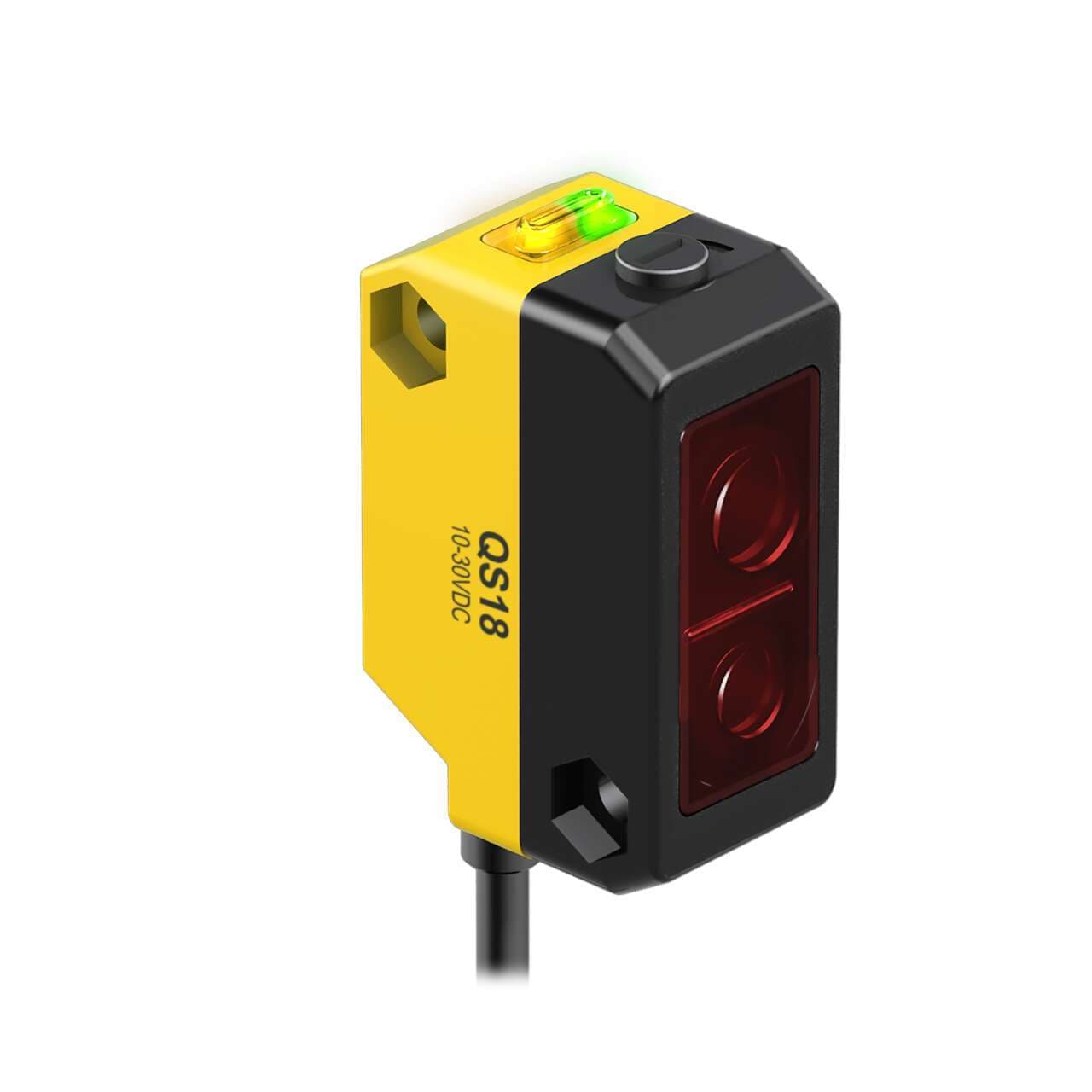

QS18AB6AF300Q Banner Proximity Sensors

QS18AB6AF300Q on Powermatic Associates
Banner

Part#:QS18AB6AF300Q

Manufacturer:Banner

Alt. Part#:11459

Product Lifecycle:Active

In-stock parts: 1

Nov 16, 2024

WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Light Operate; 150 mm (6 in) M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18AB6AF300Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    No
  • Indicator
    LEDs
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    N/A
  • IP Rating
    IP67
  • Adjustments
    Mechanical Screw
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Lens Material
    Acrylic
  • Number of Pins
    4
  • NEMA Rating
    NEMA 6
  • Delay at Power-up (ms)
    200
  • Repeatability (µs)
    250
  • Sensing Beam Wavelength
    640
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    2.5
  • Min Op. Temp. (°C)
    -20
  • Operation
    Light Operate
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    55
  • Quick Disconnect Type
    M8 (Pico)
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Style
    Rectangular
  • Input/Output
    Discrete
  • Primary Housing Material
    ABS
  • Outputs
    Bipolar (NPN & PNP)
  • Max Sensing Distance (mm)
    300
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Power
    DC
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18AB6AF300Q Description

Banner Engineering QS18AB6AF300Q is a sensor with the main function of adjustable-field photo-electric sensing. It operates within an ambient air temperature range of -20 to +55 °C and features a background suppression system with screw adjustment. This sensor is designed with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. It belongs to the QS18..AF mechanically adjustable background suppression series and offers a degree of protection rated at IP67 NEMA 6. The supply voltage required for operation is 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens. The sensing distance ranges from 30 to 300mm, utilizing visible red light for detection. It operates in Light-ON mode and includes 1 x digital output (PNP/NPN transistor) with a response time of 2.5ms / 0.0025 s.

Related documents QS18AB6AF300Q Specs

QS18AB6AF300Q 146923.pdf
