573482 Festo Directional Control Valves

573482 on Powermatic Associates
Festo

Part#:573482

Manufacturer:Festo

Alt. Part#:VUVG-B14-M52-AZT-F-1T1L

Product Lifecycle:Active

In-stock parts: 2

Nov 16, 2024

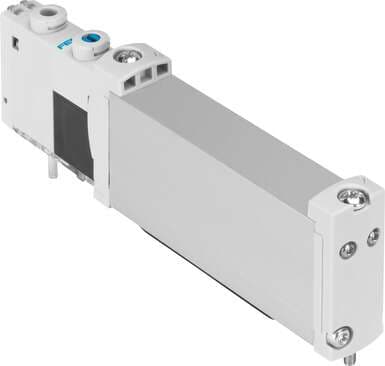

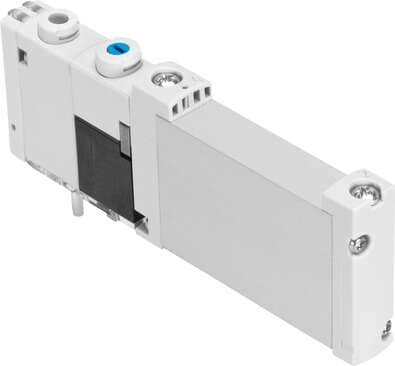

solenoid valve VUVG-B14-M52-AZT-F-1T1L Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 14 mm, Standard nominal flow rate: 500 l/min, Operating pressure: -0,9 - 10 bar

About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 573482 Festo price in the box on the right side or send a quick quote.

Product Details

  • Max. switching frequency
    3 Hz
  • Lap
    Overlap
  • Pneumatic working port
    Flange
  • Reset method
    Pneumatic spring
  • Degree of protection
    IP65 IP67
  • Operating pressure
    -0.9 bar ... 10 bar
  • Actuation type
    Electrical
  • Operating voltage
    24V DC
  • Type code
    VUVG
  • Flow direction
    Reversible
  • Design
    Piston gate valve
  • Sealing principle
    Soft
  • Pilot pressure
    1.5 bar ... 8 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Type of mounting
    On terminal strip
  • Seals material
    HNBR NBR
  • Certification
    c CSA us (OL) c UL us - Recognized (OL)
  • Mounting position
    Any
  • Manual override
    Detenting Non-detenting
  • Switching time off
    26 ms
  • Max. negative test pulse on 1 signal
    3000 µs
  • Coil characteristics
    22 V DC: 1.0 W
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Electrical connection
    Via sub-base
  • Valve function
    5/2, monostable
  • Valve size
    14 mm
  • Pilot pressure MPa
    0.15 MPa ... 0.8 MPa
  • Standard nominal flow rate
    500 l/min
  • Exhaust air function
    With flow control option
  • Type of control
    Pilot-controlled
  • Signal status display
    LED
  • On switching time
    13 ms
  • Permissible voltage fluctuations
    +/- 10 %
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Temperature of medium
    -5 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Pilot air supply port
    External
  • Symbol
    00991053
  • Duty cycle
    100%
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Ambient temperature
    -5 °C ... 60 °C
  • Housing material
    Wrought aluminum alloy
  • Max. positive test pulse with 0 signal
    1600 µs
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Product weight
    91 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 573482 Specs

573482 573482 DataSheet.pdf

This item can ship within 24h!

Manufacturer warranty

$89.84

Stock:

2

Select Qty:

$89.84

$89.84 each
