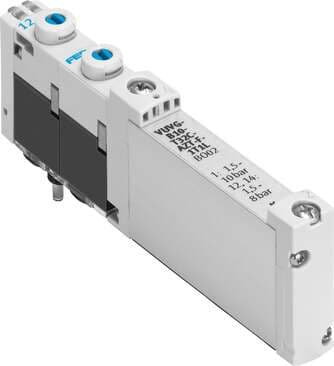

573410 Festo Directional Control Valves

Product Details

• Signal status display
  LED
• Product weight
  59 g
• Type of mounting
  On terminal strip
• Pilot pressure MPa
  0.15 MPa ... 0.8 MPa
• Valve size
  10 mm
• Design
  Piston gate valve
• Degree of protection
  IP65 IP67
• Type code
  VUVG
• Certification
  c CSA us (OL) c UL us - Recognized (OL)
• Switching time off
  20 ms
• Coil characteristics
  22 V DC: 1.0 W
• Temperature of medium
  -5 °C ... 60 °C
• Valve function
  2x3/2, closed, monostable
• Standard nominal flow rate
  150 l/min
• Reset method
  Pneumatic spring
• Mounting position
  Any
• Pilot air supply port
  External
• Max. negative test pulse on 1 signal
  3000 µs
• Max. positive test pulse with 0 signal
  1600 µs
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Operating pressure
1.5 bar ... 10 bar
Pneumatic working port
Flange
Sealing principle
Soft
Manual override
Detenting Non-detenting
Max. switching frequency
3 Hz
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Seals material
HNBR NBR
Lap
Overlap
Actuation type
Electrical
Operating voltage
24V DC
Exhaust air function
With flow control option
Symbol
00992905
Type of control
Pilot-controlled
On switching time
8 ms
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Via sub-base
Note on materials
RoHS-compliant
Pilot pressure
1.5 bar ... 8 bar
Permissible voltage fluctuations
+/- 10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 60 °C
Housing material
Wrought aluminum alloy
