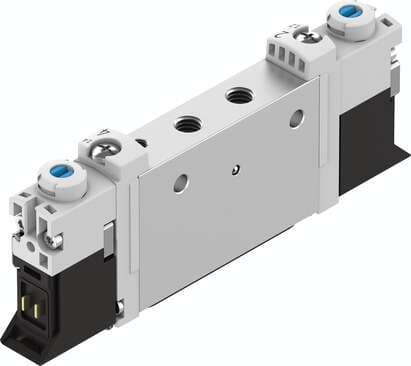

566496 Festo Directional Control Valves

Product Details

• Operating pressure
  1.5 bar ... 8 bar
• Standard nominal flow rate
  560 l/min
• Type code
  VUVG
• Pilot pressure MPa
  0.15 MPa ... 0.8 MPa
• Operating voltage
  24V DC
• Sealing principle
  Soft
• Suitability for vacuum
  no
• Max. negative test pulse on 1 signal
  900 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection 2
  G1/8
• Pneumatic connection 5
  G1/8
• Pneumatic connection 4
  G1/8
• Lap
  Overlap
• Pneumatic working port
  G1/8
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Nominal width
  4.6 mm
• Symbol
  00992904
• Max. positive test pulse with 0 signal
  700 µs
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Restricted ambient and media temperature
  -5 - 50 °C Without holding power reduction
Electrical connection
Via electrical sub-base
Seals material
HNBR NBR
Actuation type
Electrical
Design
Piston gate valve
Degree of protection
IP40 With plug socket
Mounting position
Any
Pilot air supply port
Internal
Switching time off
25 ms
Duty cycle
100%
Coil characteristics
24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
Optionally: With through-hole
Note on materials
RoHS-compliant
Valve function
2x3/2, closed, monostable
Valve size
14 mm
Reset method
Pneumatic spring
Exhaust air function
With flow control option
Type of control
Pilot-controlled
On switching time
9 ms
Permissible voltage fluctuations
+/- 10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
89 g
Pneumatic connection 1
G1/8
Housing material
Wrought aluminum alloy
Manual override
Detenting Covered
Pilot pressure
1.5 bar ... 8 bar
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 60 °C
Ambient temperature
-5 °C ... 60 °C
Pneumatic connection 3
G1/8
