PAXT0010 Red Lion Industrial Automation Components

PAXT0010 on Powermatic Associates
Red Lion

Part#:PAXT0010

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 20, 2025

Product description

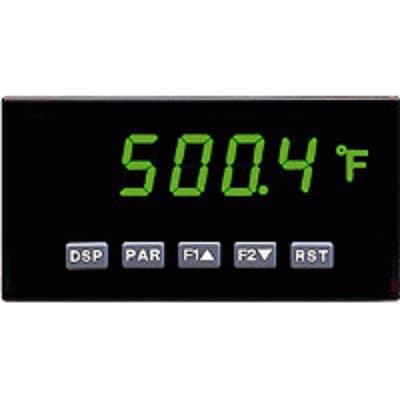

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

Product Details

  • Analog outputs
    1 x analog output (retransmission)
  • Display
    1 row x 5-digits red characters (14.2mm / 0.56" high) LED display
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Primary brand
    Red Lion
  • Degree of protection
    IP65 NEMA 4X
  • Order code / Manufacturer SKU
    PAXT0010
  • Functions
    Universal digital temperature meter
  • Benefits
    Process / voltage / current / temperature / strain gage inputs Variable intensity display 16 point scaling for non-linear processes Programmable function keys/user inputs 9-digits totalizer (integrator) with batching Optional custom units overlay with bac
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Sub-range name
    PAX series
  • Supply voltage (DC)
    11-36Vdc (12Vdc / 24Vdc)
  • Product series / family name
    Process indicators
  • Frequency
    20Hz analog input sampling rate
  • Main function
    Thermometer (Digital)
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Design
    3 user inputs 1/8 DIN horizontal (96x48mm) 14.2mm red digits communication capability
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / Pt100 / Ni120 RTDs DC; 16-bits conversion; 0.12%...0.7% accuracy)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PAXT0010 Related Documents

Red Lion - PAX ANALOG - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

CBLMAT02 on Powermatic Associates

CBLMAT02

Red Lion

Red Lion CBLMAT02 is a communication cable designed to connect Graphite, DSP, G3, and Modular Controller units to Matsushita FP0. It features a 5-pin male connector on one end and an RJ12 connector on the other, with a total length of 10 feet (3.05 meters). This cordset is specifically crafted for facilitating communication between the mentioned devices.

3 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

16 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
104TX on Powermatic Associates

104TX

Red Lion

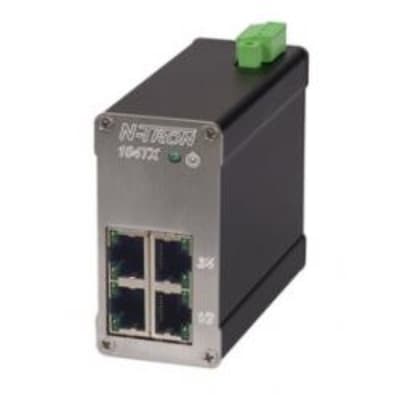

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

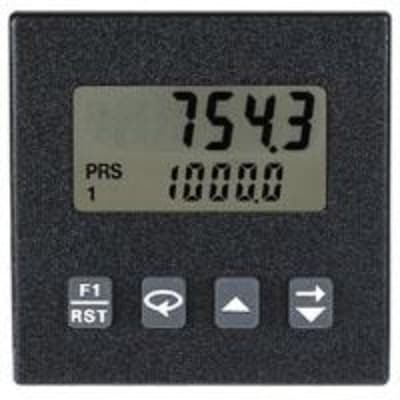

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).
