Product description

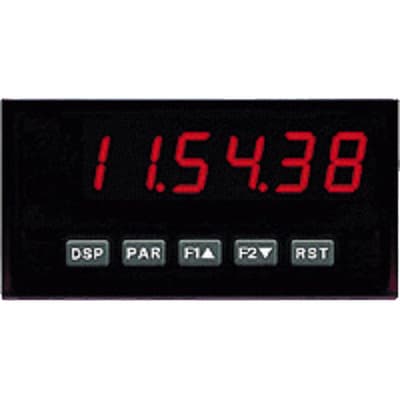

Red Lion PAXTM000 is a digital timer from the PAX series, designed with a 1/8 DIN (96x48mm) form factor featuring 14.2mm red digits and communication capability. This timer offers a degree of protection rated at IP65 NEMA 4X, suitable for various industrial environments. It operates on a supply voltage range of 11-36Vdc, accommodating both 12Vdc and 24Vdc systems. Additionally, it is equipped with 3 x digital inputs (Sink/Source) for user input, enhancing its functionality and integration capabilities within automation systems.

Product Details

  • Primary brand
    Red Lion
  • Display
    1 row x 6-digits red characters (14.2mm / 0.56" high) LED display
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Sub-range name
    PAX series
  • Functions
    Digital timer
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Order code / Manufacturer SKU
    PAXTM000
  • Main function
    Timer (Digital)
  • Degree of protection
    IP65 NEMA 4X
  • Product series / family name
    Process timers
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Design
    1/8 DIN (96x48mm) 14.2mm red digits communication capability

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PAXTM000 Related Documents

Red Lion - PAXCKTM - Product Manual.pdf
