HGL36020 Schneider Electric Industrial Automation Components

HGL36020 on Powermatic Associates
Schneider Electric

Part#:HGL36020

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 2 left in stock. Order Now!

Apr 16, 2025

Product description

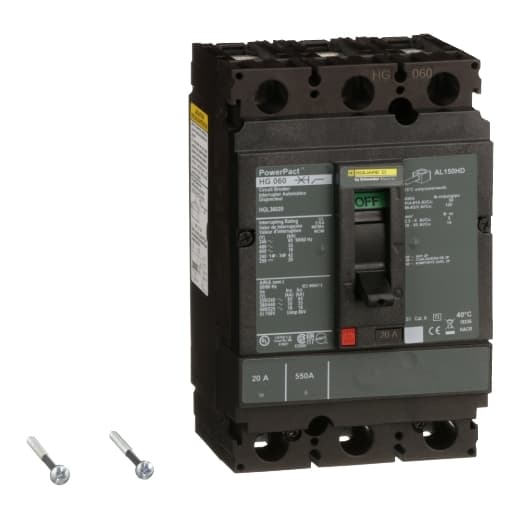

Square D by Schneider Electric HGL36020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGL sub-range. It features a PowerPact H-Frame 150 TMD design with 3 poles (3P) and a rated current of 20A. This breaker is designed for 600Vac/500Vdc with a thermal protection for overload and magnetic protection for short-circuit, ensuring operation within its rated insulation voltage of 750 V and a rated voltage of 600Vac 600Y/347Vac. It supports a mounting mode of individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The connection type includes lugs on both load and line sides, and it operates with a toggle (manual) mechanism. The degree of protection is IP40. Protection settings are over-current fixed at 20A, short-circuit hold current fixed at 350A, and short-circuit trip current fixed at 750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 20 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all according to UL489. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    6.4 in (162.56 mm)
  • Width
    4.12 in (104.65 mm)
  • Magnetic Hold Current
    350 A
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Breaking Capacity Code
    G
  • Magnetic Tripping Current
    750 A
  • Line Rated Current
    20 A
  • Range Of Product
    PowerPact H
  • Mounting Mode
    Unit mount

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36020 on Powermatic Associates is $1,493.00. Order now.
