RK 4.4T-3 Turck Cordsets

Name: RK 4.4T-3
Brand: Turck
Price: 35.2 USD
Availability: InStock

Turck RK 4.4T-3 RK 4.4T-3 Actuator and Sensor Cordset, Connection Cable

Part#:RK 4.4T-3

Manufacturer:Turck

Alt. Part#:U2167-1

Product Lifecycle:Active

In-stock parts: 40

Sep 28, 2024

RK 4.4T-3 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RK 4.4T-3 Turck price in the box on the right side or send a quick quote.

Product Details

Cable length (L)
3.0 m
Cable Jacket Color
Gray
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Connector A
M12 × 1
Current
4 A
Number of Conductors
4
Connector A - Style
Straight, Female
Cable Jacket Material
PVC
Material coupling/housing A
Brass
Voltage
250 V
Application
Actuator and Sensor
Connector A - Number of Pins
4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RK 4.4T-3 Description

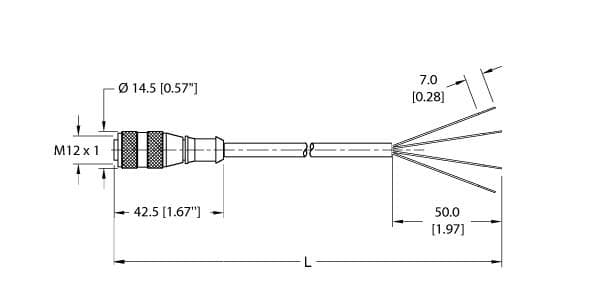

Turck RK 4.4T-3 is a single-ended mating cable/cordset designed for automation applications, featuring a 4-pin M12 eurofast female connector with T-barb fitting to bare end flying leads. This cable is encased in a gray TPE jacket with a nickel-plated brass coupling nut, ensuring durability and secure connections. It measures 3 meters (9 feet) in length and has a cable sheath outer diameter of 5.3mm. The RK 4.4T-3 is capable of handling a rated current of 4A and a rated voltage of 250Vac. Its wire cross-section is 4 x #22AWG, suitable for various industrial applications. This part offers a high degree of protection with ratings of IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for use in environments requiring dust and water resistance.

$35.20

Stock:

Select Qty:

$35.20

$35.20 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
