Schneider Electric

Part#:AZ5DE015

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

93 in stock

Apr 15, 2025

Product description

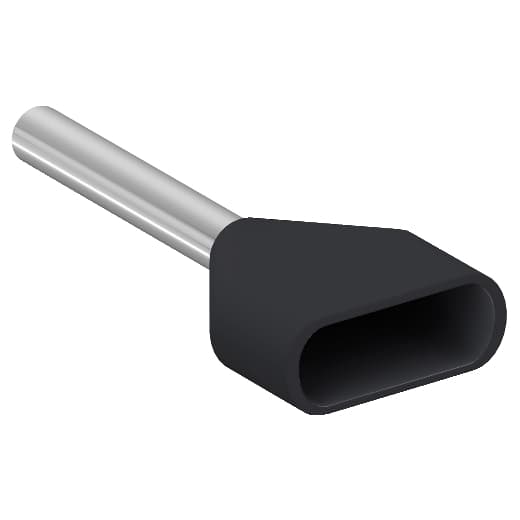

Schneider Electric - AZ5DE015

Product Details

  • Net Weight
    0.34 lb(US) (0.155 kg)
  • Tube Length
    0.31 in (8 mm)
  • Length
    0.59 in (15 mm)
  • AWG Gauge
    AWG 16
  • Tube Diameter
    0.10 in (2.5 mm)
  • Bezel Size
    Ø 3.6 x 6.6 mm
  • Number Of Cables
    2
  • Tube Material
    Copper ISO 1337
  • Bezel Material
    Halogen-free plastic
  • Color
    Black
  • Product Or Component Type
    Cable end
  • Additional Information
    Without marker tag holder
  • Cable End Size
    Medium
  • Cable Cross Section
    0.00 in² (1.5 mm²)
  • Quantity Per Set
    5 sets of 100
  • Standards
    NF C 63-023
  • Cable End Type
    Twin conductor
  • Range Of Product
    Linergy
  • Type Of Packing
    Dispenser pack

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZ5DE015 on Powermatic Associates is $0.26. Order now.

AZ5DE015 Related Documents

Catalog-1631034613168.pdfInstruction Sheet-1631034613160.pdfProduct Datasheet-1631034613166.pdf
