LC1DT20BL Schneider Electric Industrial Automation Components

Name: LC1DT20BL
Brand: Schneider Electric
Price: 158 USD
Availability: InStock

Part#:LC1DT20BL

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 2 left in stock. Order Now!

Mar 14, 2025

Product description

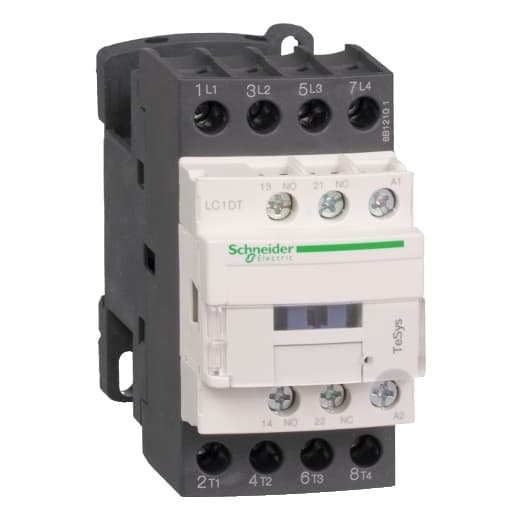

Schneider Electric LC1DT20BL is a magnetic contactor from the Deca sub-range, designed with a low-consumption coil that uses less than 2.4W. It features screw connections for secure installation and operates with 4 poles (4NO) capable of handling a rated current of 20A under AC-1 conditions. This contactor is designed for DIN rail mounting, ensuring a compact and efficient setup with a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage range of 19.2-30Vdc, nominally at 24Vdc, which is 0.8 to 1.25 times the control voltage (Uc). The LC1DT20BL can handle a rated operating voltage (Ue) up to 690 V and is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for instantaneous operation. The contacts are designed to withstand a rated impulse voltage (Uimp) of 6 kV. With mechanical durability rated at 15 million operations at no load, this contactor is built for longevity. It supports a phase-to-phase rated voltage (AC) of 690 V and maintains a power consumption of 2.4 W.

Product Details

Product Certifications
BV CSA GOST GL CCC UL DNV LROS (Lloyds register of shipping) RINA
[Icw] Rated Short-Time Withstand Current
30 A 104 °F (40 °C) - 10 min power circuit 61 A 104 °F (40 °C) - 1 min power circuit 105 A 104 °F (40 °C) - 10 s power circuit 210 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circu
[Ui] Rated Insulation Voltage
Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lb
Associated Fuse Rating
10 A gG signalling circuit IEC 60947-5-1 25 A gG <= 690 V type 1 power circuit 20 A gG <= 690 V type 2 power circuit
Control Circuit Voltage Limits
0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
Irms Rated Making Capacity
140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 250 A 440 V power circuit IEC 60947
Connections - Terminals
Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
Standards
CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Operating Time
65.45...88.55 ms closing 20...30 ms opening
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 20 A 140 °F (60 °C) power circuit
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
Mounting Support
Rail Plate
Minimum Switching Voltage
17 V signalling circuit
Hold-In Power Consumption In W
2.4 W 68 °F (20 °C)
Insulation Resistance
> 10 MOhm signalling circuit
Minimum Switching Current
5 mA signalling circuit

Signalling Circuit Frequency

25...400 Hz

Maximum Operating Rate

3600 cyc/h 140 °F (60 °C)

Mechanical Durability

30 Mcycles

Time Constant

40 ms

Inrush Power In W

2.4 W 68 °F (20 °C))

Coil Technology

Built-in bidirectional peak limiting diode suppressor

Front Cover

With

Power Dissipation Per Pole

1.56 W AC-1

Average Impedance

2.5 mOhm - Ith 20 A 50 Hz power circuit

Rated Breaking Capacity

250 A 440 V power circuit IEC 60947

Overvoltage Category

III

[Uc] Control Circuit Voltage

24 V DC

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Auxiliary Contact Composition

1 NO + 1 NC

Control Circuit Type

DC low consumption

[Ie] Rated Operational Current

20 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit

Poles Description

Product Or Component Type

Contactor

Utilisation Category

AC-1

Power Pole Contact Composition

4 NO

Device Short Name

LC1D

Product Name

TeSys D

Range

TeSys

Contactor Application

Resistive load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1DT20BL on Powermatic Associates is $158.00. Order now.
