RXZE2M114M Schneider Electric Industrial Automation Components

RXZE2M114M on Powermatic Associates
Schneider Electric

Part#:RXZE2M114M

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

8 in stock

Apr 3, 2025

Product description

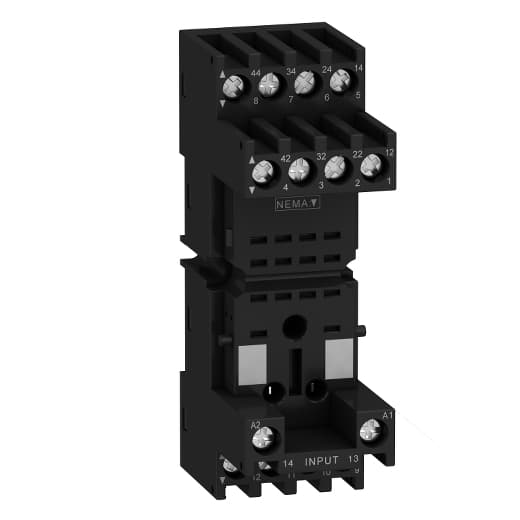

Schneider Electric RXZE2M114M is a plug-in socket within the RXZ sub-range designed for a rated current of 10 A and an operational ambient air temperature range of -40 to +55 °C. It features a degree of protection classified as IP20 and is equipped with connector type terminals. The socket is specified for a rated voltage (AC) of 250 V, phase-to-neutral.

Product Details

  • Connections - Terminals
    Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5
  • Product Compatibility
    Plug-in relay RXM 2 C/O Plug-in relay RXM 4 C/O
  • Range Of Product
    Harmony Electromechanical Relays Harmony Timer Relays
  • Fixing Mode
    By screw panel) Clip-on 35 mm symmetrical DIN rail)
  • Width
    1.06 in (27 mm)
  • Net Weight
    0.12 lb(US) (0.056 kg)
  • Marking
    CE
  • Tightening Torque
    < 1 N.m M3
  • [Ue] Rated Operational Voltage
    < 250 V
  • Device Short Name
    RXZ
  • Shape Of Pin
    Flat
  • [Ith] Conventional Free Air Thermal Current
    10 A
  • Contact Terminal Arrangement
    Mixed
  • Sale Per Indivisible Quantity
    10
  • Product Or Component Type
    Socket

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXZE2M114M on Powermatic Associates is $6.10. Order now.
