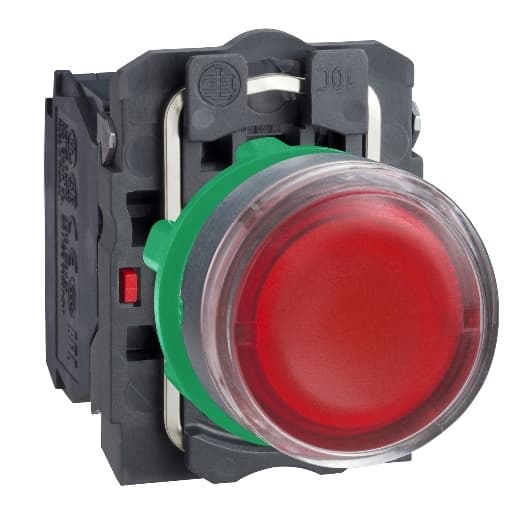

XB5AW34B5 Schneider Electric Industrial Automation Components

Product Details

• [Ie] Rated Operational Current
  3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
• Electrical Durability
  1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
• Operating Travel
  0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
• Electrical Reliability
  Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
• Connections - Terminals
  Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
• Terminals Description ISO N°1
  (21-22)NC (13-14)NO
• Operating Force
  3.5 N NC changing electrical state 3.8 N
• Current Consumption
  18 mA
• Device Presentation
  Complete product
• Surge Withstand
  1 kV IEC 61000-4-5
• Service Life
  100000 h at rated voltage and 25 °C
• Signalling Type
  Steady
• Supply Voltage Limits
  19.2…30 V DC 21.6…26.4 V AC
• [Uimp] Rated Impulse Withstand Voltage
  6 kV EN/IEC 60947-1
• Short-Circuit Protection
  10 A cartridge fuse gG EN/IEC 60947-5-1
• [Ui] Rated Insulation Voltage
  600 V 3)EN/IEC 60947-1
• [Ith] Conventional Free Air Thermal Current
  10 A EN/IEC 60947-5-1
• Tightening Torque
  7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
• Contacts Material
  Silver alloy (Ag/Ni)
• Shape Of Screw Head
  Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
Mechanical Durability
10000000 cycles
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Net Weight
0.12 lb(US) (0.056 kg)
Contacts Usage
Standard contacts
Depth
2.24 in (57 mm)
Positive Opening
With EN/IEC 60947-5-1 appendix K
Cap/Operator Or Lens Colour
Red
Width
1.18 in (30 mm)
Bulb Base
Integral LED
Height
1.65 in (42 mm)
Operator Additional Information
With plain lens
Contact Operation
Slow-break
[Us] Rated Supply Voltage
24 V
Light Source
Protected LED
Contacts Type And Composition
1 NO + 1 NC
Operator Profile
Red flush, unmarked
Mounting Diameter
0.87 in (22 mm)
Bezel Material
Dark grey plastic
Type Of Operator
spring return
Shape Of Signaling Unit Head
Round
Head Type
Standard
Sale Per Indivisible Quantity
1
Range Of Product
Harmony XB5
Product Or Component Type
Illuminated push-button
Fixing Collar Material
Plastic
Device Short Name
XB5
