XB5AA42 Schneider Electric Industrial Automation Components

Name: XB5AA42
Brand: Schneider Electric
Price: 38.5 USD
Availability: InStock

Part#:XB5AA42

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

In-stock parts: 2

Dec 21, 2024

Schneider Electric XB5AA42 is a flush push-button designed for various automation applications. This component, part of the XB5 range, features a plastic body and bezel with a diameter of 22 mm. It is equipped with 1 NC (Normally Closed) auxiliary contact and offers short-circuit protection through a 10A gG cartridge fuse. The XB5AA42 has a rated impulse voltage (Uimp) of 6 kV and provides a degree of protection rated at IP66, NEMA 4X, and NEMA 13, ensuring its suitability for demanding environments. It supports a control circuit rated current (Ith) of 10 A at 120Vac (AC-15), 6 A at 240Vac (AC-15), 3 A at 600Vac (AC-15), 1.2 A at 125Vdc (DC-13), 0.55 A at 250Vdc (DC-13), and 0.27 A at 600Vdc (DC-13). The XB5AA42 is designed for easy installation with screw-clamp terminals and requires an operating force of 3.5 N. It offers mechanical durability of 5,000,000 operations at no load and electrical durability of 1,000,000 operations with load, operating in a spring-return (impulse/momentary) mode.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the XB5AA42 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted flat Ø 5.5 mm
Electrical Durability
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles D
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Bezel Material
Plastic Dark grey plastic
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.17 in (4.3 mm) total travel)
Compatibility Code
XB5
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
GCR BRIDGE
XB5AACUST01
Tightening Torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
Customizable
Yes
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Device Presentation
Complete product
Contacts Material
Silver alloy (Ag/Ni)
Mechanical Durability
10000000 cycles
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force
3.5 N NC changing electrical state
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Positive Opening
With conforming to EN/IEC 60947-5-1 appendix K

Contacts Usage

Standard contacts

Net Weight

0.08 lb(US) (0.037 kg)

Terminals Description ISO N°1

(21-22)NC

Depth

2.05 in (52 mm)

Resistance To High Pressure Washer

1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Width

1.18 in (30 mm)

Height

1.65 in (42 mm)

Contact Operation

Slow-break

Contacts Type And Composition

1 NC

Range Of Product

Harmony XB5

Operator Profile

Red flush, unmarked

Fixing Collar Material

Plastic

Product Or Component Type

Push-button

Mounting Diameter

0.87 in (22 mm)

Sale Per Indivisible Quantity

Type Of Operator

spring return

Shape Of Signaling Unit Head

Round

Head Type

Standard

Device Short Name

XB5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

$38.50

Stock:

Select Qty:

$38.50

$38.50 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

XB5AW33B5

Verified stock: 2

Schneider Electric XB5AW33B5 is an illuminated flush push-button designed for automation applications, part of the XB5 range. This push-button features a plastic body and bezel with a round shape and a plain lens. It offers a degree of protection rated at IP66, making it suitable for use in environments where dust and water resistance are necessary. The push-button operates with a spring-return mechanism, providing an impulse or momentary action. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, ensuring versatile connectivity options. The XB5AW33B5 is equipped with an integral LED for illumination, with the light color being green. It supports a supply voltage of 24 V, both AC and DC, and is compatible with network frequencies of 50/60 Hz. The diameter of the push-button is 22 mm, and it utilizes screw-clamp terminals for secure electrical connections.

Schneider Electric

XB5AW36B5

Verified stock: 2

Schneider Electric XB5AW36B5 is an illuminated flush push-button designed for automation applications, featuring an integral LED for visibility. This push-button is part of the XB5 sub-range and is constructed from plastic for both the body and bezel, ensuring compatibility with various industrial environments. It is round in shape and offers a degree of protection rated at IP66, making it suitable for use in conditions where dust and water resistance are necessary. The push-button operates at a network frequency of 50/60 Hz and has a diameter of 22 mm. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for flexible connectivity options. The supply voltage required for both AC and DC is 24 V. The light color emitted by the integral LED is blue, providing clear indication of operation. Connection to electrical circuits is facilitated by screw-clamp terminals, and the operating mode is spring-return (impulse/momentary), which is ideal for applications requiring momentary activation. The type of lens used is plain, focusing on straightforward functionality and ease of use.

Schneider Electric

XB5AS8445

Verified stock: 2

Schneider Electric XB5AS8445 is a push-button designed for emergency switching OFF (ESO) or shutdown (ESD) applications, part of the XB5 range. This emergency push-button features a plastic body and bezel with a round shape. It offers a degree of protection rated at IP66, ensuring durability against dust and water ingress. The mushroom head of the button has a diameter of 22 mm, while the overall diameter is 40 mm. It is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for circuit control. The XB5AS8445 utilizes screw-clamp terminals for secure wire connections and supports both turn-to-release and stay-put (maintained/latched) operating modes for versatile application use.

Schneider Electric

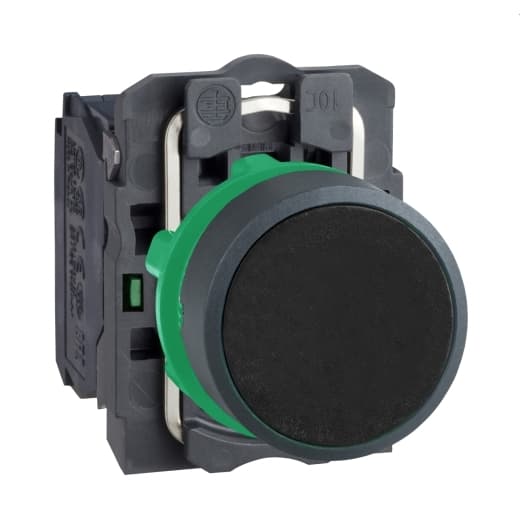

XB5AA21
