PAXT0000 Red Lion Industrial Automation Components

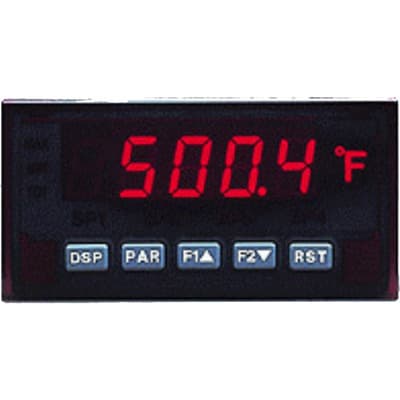

Red Lion PAXT0000 Red Lion PAXT0000 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs and a 1/8 DIN horizontal configuration measuring 96mm in width and 48mm in height (3.80" x 1.95"). It features 14.2mm red digits and has communication capability. This thermometer offers an IP65 NEMA 4X degree of protection and operates on a supply voltage of 11-36Vdc, including 12Vdc and 24Vdc options. It supports a 20Hz analog input sampling rate and includes 1 analog input that accommodates a variety of signals including 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it features 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission.
Red Lion

Part#:PAXT0000

Manufacturer:Red Lion

Product Lifecycle:Active

Get a quick Quote!

Red Lion PAXT0000 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs and a 1/8 DIN horizontal configuration measuring 96mm in width and 48mm in height (3.80" x 1.95"). It features 14.2mm red digits and has communication capability. This thermometer offers an IP65 NEMA 4X degree of protection and operates on a supply voltage of 11-36Vdc, including 12Vdc and 24Vdc options. It supports a 20Hz analog input sampling rate and includes 1 analog input that accommodates a variety of signals including 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it features 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission.

About the manufacturer: Red Lion is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Check out the PAXT0000 Red Lion price in the box on the right side or send a quick quote.

Product Details

  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / Pt100 / Ni120 RTDs DC; 16-bits conversion; 0.12%...0.7% accuracy)
  • Order code / Manufacturer SKU
    PAXT0000
  • Sub-range name
    PAX series
  • Design
    3 user inputs 1/8 DIN horizontal (96x48mm) 14.2mm red digits communication capability
  • Frequency
    20Hz analog input sampling rate
  • Main function
    Thermometer (Digital)
  • Product series / family name
    Process indicators
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Degree of protection
    IP65 NEMA 4X
  • Functions
    Universal digital temperature meter
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Benefits
    Process / voltage / current / temperature / strain gage inputs Variable intensity display 16 point scaling for non-linear processes Programmable function keys/user inputs 9-digits totalizer (integrator) with batching Optional custom units overlay with bac
  • Display
    1 row x 5-digits red characters (14.2mm / 0.56" high) LED display
  • Analog outputs
    1 x analog output (retransmission)
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents PAXT0000 Specs

PAXT0000 Red Lion - PAX ANALOG - Product Manual.pdf

Manufacturer warranty

$275.00
