PAXTM100 Red Lion Industrial Automation Components


Part#:PAXTM100
Manufacturer:Red Lion
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

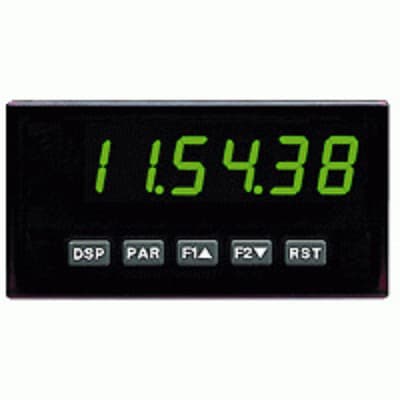

Red Lion PAXTM100 is a digital timer from the PAX series, designed with a 1/8 DIN (96x48mm) form factor and features 14.2mm green digits with communication capability. This timer offers a degree of protection rated at IP65 NEMA 4X, suitable for various industrial environments. It operates on a supply voltage range of 11-36Vdc, accommodating both 12Vdc and 24Vdc systems. Additionally, it is equipped with 3 x digital inputs (Sink/Source) for user input, enhancing its versatility in application. The dimensions of the PAXTM100 are specified as 1/8 DIN horizontal, measuring W96mm x H48mm (3.80" x 1.95").
Product Details
- Primary brand Red Lion
- Supply voltage (AC) 85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
- Functions Digital timer
- Main function Timer (Digital)
- Sub-range name PAX series
- Product series / family name Process timers
- Display 1 row x 6-digits green characters (14.2mm / 0.56" high) LED display
- Degree of protection IP65 NEMA 4X
- Design 1/8 DIN (96x48mm) 14.2mm green digits communication capability
- Dimensions 1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
- Digital inputs 3 x digital inputs (Sink/Source) (USER INPUT)
- Compliant with standard(s) CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
- Order code / Manufacturer SKU PAXTM100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
