104TX Red Lion Industrial Automation Components

104TX on Powermatic Associates
Red Lion

Part#:104TX

Manufacturer:Red Lion

Product Lifecycle:Active

In-stock parts: 2

Nov 16, 2024

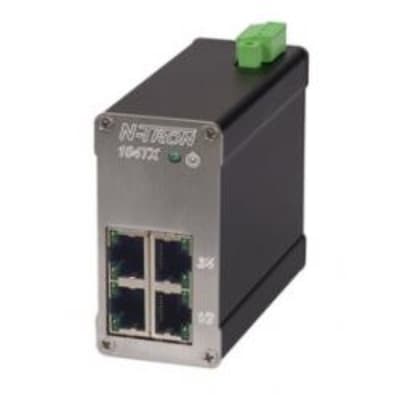

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

About the manufacturer: Red Lion is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Check out the 104TX Red Lion price in the box on the right side or send a quick quote.

Product Details

  • Primary brand
    Red Lion
  • Functions
    Industrial Ethernet switch
  • Sub-range name
    N-Tron 100 series
  • Speed
    Maximum throughput 800Mbit/s
  • Replaces
    NT104TX0
  • Secondary brand
    N-Tron
  • Main function
    Ethernet Switch
  • Mounting mode
    DIN rail
  • Ambient air temperature for operation
    -40...+80 °C
  • Product series / family name
    Ethernet switches
  • Communication protocol
    Ethernet
  • Material
    Metallic case
  • Degree of protection
    IP30
  • Connection capacity
    4-ports
  • Connection type
    4 x RJ45 ports (10/100BaseTX)
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2M Hours ESD Protection Diodes on RJ-45 Ports Surge Protection Diodes on Power Inputs
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Order code / Manufacturer SKU
    104TX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 104TX Specs

104TX Red Lion - N-Tron 105M12 108M12 Unmanaged switches - Product Manual.pdf
104TX Red Lion - N-Tron 100 Series Unmanaged switches - Product Manual.pdf
