159596 Festo Pneumatic Components

Name: 159596
Brand: Festo

Part#:159596

Alt. Part#:FMA-40-10-1/4-EN

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 20, 2025

Product description

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

Product Details

Symbol
00991463
Pressure gauge nominal size
40
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Measurement accuracy class
2.5
Note on materials
RoHS-compliant
Materials in contact with the media
Brass
Fastening ring material
Steel
Information on operating and pilot media
No acetylene No oxygen
Type of mounting
Front panel mounting
Degree of protection
IP43
Connection position
Centered on rear side
Housing material
ABS
Type code
FMA
Operating medium
Inert gas Neutral liquids
Temperature of medium
-20 °C ... 60 °C
Material of screwed trunnion
Brass
Conforms to standard
EN 837-1
Intermittent load factor
0.66
Pneumatic connection
G1/4
Product weight
80 g

Display range

0 bar ... 10 bar

Design

Bourdon tube pressure gauge

Operating pressure

0 bar ... 10 bar

Ambient temperature

-20 °C ... 60 °C

Inspection window material

SAN

Housing colour

Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

159596 Related Documents

159596 DataSheet.pdf

Similar products from: Festo Pneumatic Components

550481

Festo

plug socket with cable KMYZ-4-2,5-B-EX Combination of MSZB and MSZC connection. Maritime classification: see certificate, Mounting type: On solenoid valve with M2 central screw, Assembly position: Any, Product weight: 34,5 g, Electrical connection: (* Plu

8 in stock

2950

Festo

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, monostable, Type of actuation: mechanical, Standard nominal flow rate: 175 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat

852 in stock

1589339

Festo

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

3 in stock

195495

Festo

retainer GR-H-QS-3-4 For mounting the one-way flow control valves with screws, series GR/GRO-QS-... Materials note: Free of copper and PTFE

4 in stock

184318

Festo

low consumption air gun LSP-1/4-C Made of plastic. Exhaust-air function: Air jet can be dosed, Operating pressure: 0 - 10 bar, Standard nominal flow rate: 120 l/min, Sound pressure level: 90 dB(A), Ambient temperature: -10 - 50 °C

11 in stock

GRLA-G1/8-QB-1/4-U-M

Festo

Festo GRLA-G1/8-QB-1/4-U-M is a metal exhaust air pneumatic flow control valve designed for precise control of air exhaust in pneumatic systems. It features a slotted head screw suitable for 32mm and 40mm pistons. This valve offers a G1/8" threaded pneumatic connection compatible with 1/4" outer diameter tubing. It is part of the GRLA series and is characterized by its 1-way valve function, facilitating directional control of airflow within the system.

12 in stock

Manufacturer warranty

159596 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 159596 with other Pneumatic Components products

Symbol

Pressure gauge nominal si...

Explosion prevention and ...

Measurement accuracy clas...

Note on materials

Materials in contact with...

Fastening ring material

Information on operating ...

Type of mounting

Degree of protection

Selected product

1 in stock

159596

Festo

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 ...

Symbol00991463

Pressure gauge nominal size40

Explosion prevention and protectionObserve the information on t...

Measurement accuracy class2.5

Note on materialsRoHS-compliant

Materials in contact with the mediaBrass

Fastening ring materialSteel

Information on operating and pilot mediaNo acetylene No oxygen

Type of mountingFront panel mounting

Degree of protectionIP43

1 in stock

11914

Festo

front panel valve SV-5-M5-B Valve function: 5/2 monostable, Type of actuation: manual, Standard nomi...

Symbol00991339

Pressure gauge nominal size-

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingFront panel mounting With th...

Degree of protection-

852 in stock

2950

Festo

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, mon...

Symbol00991118

Pressure gauge nominal size-

Explosion prevention and protection-

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingWith through-hole

Degree of protection-

4 in stock

8080960

Festo

selector valve VHEF-E-B52-G18 Valve function: 5/2 bistable, Type of actuation: manual, Width: 20 mm,...

Symbol00995881

Pressure gauge nominal size-

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingOptionally: With through-hol...

Degree of protection-

1 in stock

11914

Festo

front panel valve SV-5-M5-B Valve function: 5/2 monostable, Type of actuation: manual, Standard nomi...

Symbol00991339

Pressure gauge nominal size-

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingFront panel mounting With th...

Degree of protection-

852 in stock

2950

Festo

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, mon...

Symbol00991118

Pressure gauge nominal size-

Explosion prevention and protection-

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingWith through-hole

Degree of protection-

4 in stock

8080960

Festo

selector valve VHEF-E-B52-G18 Valve function: 5/2 bistable, Type of actuation: manual, Width: 20 mm,...

Symbol00995881

Pressure gauge nominal size-

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingOptionally: With through-hol...

Degree of protection-

1 in stock

11914

Festo

front panel valve SV-5-M5-B Valve function: 5/2 monostable, Type of actuation: manual, Standard nomi...

Symbol00991339

Pressure gauge nominal size-

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingFront panel mounting With th...

Degree of protection-

852 in stock

2950

Festo

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, mon...

Symbol00991118

Pressure gauge nominal size-

Explosion prevention and protection-

Measurement accuracy class-

Note on materials-

Materials in contact with the media-

Fastening ring material-

Information on operating and pilot media-

Type of mountingWith through-hole

Degree of protection-

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Components that are pneumatic are crucial elements of a pneumatic system, using compressed air to manage movements and carry out a range of tasks in industries like manufacturing, construction, and automation.

Relevant products

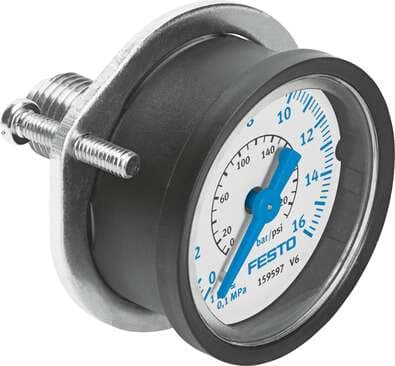

159597

Verified stock: 0

flanged pressure gauge FMA-40-16-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

Festo

159576

Verified stock: 0

filter LF-3/8-D-MIDI With metal bowl guard. Size: Midi, Series: D, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm, Condensate drain: manual rotary

Festo

159585

Verified stock: 0

filter regulator LFR-1/2-D-MIDI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

Festo

159588

Verified stock: 0

service unit FRC-3/8-D-MIDI Filter/regulator/lubricator combination, 40 µm filter, with metal bowl guard. With manual condensate drain. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Condensate drain: ma

Festo

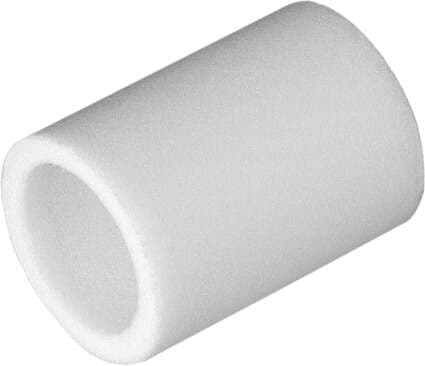

159594
