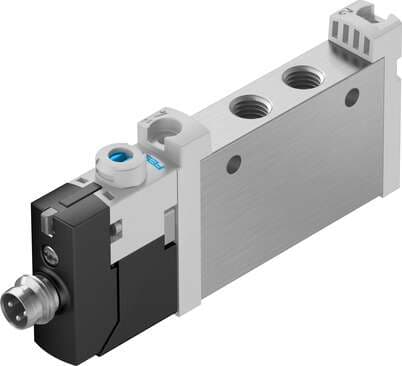

573417 Festo Directional Control Valves

Product Details

• Valve size
  10 mm
• Design
  Piston gate valve
• Exhaust air function
  With flow control option
• Mounting position
  Any
• Pilot pressure
  3 bar ... 8 bar
• Coil characteristics
  22 V DC: 1.0 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Type of mounting
  On terminal strip
• Operating pressure
  -0.9 bar ... 8 bar
• Pneumatic working port
  Flange
• Sealing principle
  Soft
• Symbol
  00991025
• Max. switching frequency
  3 Hz
• Max. positive test pulse with 0 signal
  1600 µs
• Permissible voltage fluctuations
  +/- 10 %
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Housing material
  Wrought aluminum alloy
• Lap
  Overlap
• Pilot pressure MPa
  0.3 MPa ... 0.8 MPa
• Degree of protection
  IP65 IP67
Certification
c CSA us (OL) c UL us - Recognized (OL)
Type of control
Pilot-controlled
Signal status display
LED
On switching time
12 ms
Max. negative test pulse on 1 signal
3000 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 60 °C
Note on materials
RoHS-compliant
Actuation type
Electrical
Standard nominal flow rate
220 l/min
Reset method
Mechanical spring
Flow direction
Reversible
Pilot air supply port
External
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 60 °C
Seals material
HNBR NBR
Valve function
5/2, monostable
Operating voltage
24V DC
Type code
VUVG
Manual override
Detenting Non-detenting
Switching time off
30 ms
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
53 g
Electrical connection
Via sub-base
