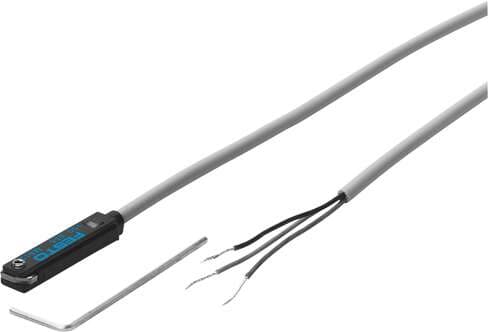

175404 Festo Proximity Sensors

Name: 175404
Brand: Festo

Part#:175404

Alt. Part#:SME-8-K5-LED-24

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Mar 14, 2025

Product description

proximity sensor SME-8-K5-LED-24 Electric, with reed contact, for drives with T-slot, with cable. Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Materials

Product Details

Symbol
00991620
Ambient temperature
-40 °C ... 70 °C
Switch-off time
0.03 ms
Max. output current
500 mA
DC operating voltage range
12 V ... 30 V
Connection outlet orientation
Longitudinal
Tightening torque
0.2 Nm
Switching status indication
LED yellow
Design
for T-slot
CE marking (see declaration of conformity)
As per EU EMC directive
Switching output
Contact-based, bipolar
Max. switching frequency
800 Hz
Overload protection
Not available
Cable length
5 m
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Surge resistance
0.8 kV
Switching element function
N/O contact
On time
≤ 0.5 ms
Voltage drop
0 V
Short-circuit protection
no

Electrical connection

3-wire Cable

Housing material

Epoxy resin High-alloy stainless steel

Contamination level

Conforms to standard

EN 60947-5-2

Note on materials

Free of copper and PTFE RoHS-compliant

Reproducibility of switching value

+/- 0.1 mm

Min. switching capacity AC

10 VA

Reverse polarity protection

Material of cable sheath

TPE-U(PUR)

Type of mounting

Clamped in T slot Can be inserted in slot lengthwise

Degree of protection

IP65 IP67

Type code

SME

Certification

RCM compliance mark

Measuring principle

Magnetic reed

Max. switching capacity DC

10 W

Operating voltage range AC

12 V ... 30 V

Product weight

60 g

Insulation voltage

50 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
