160251 Festo Proximity Sensors

160251 on Powermatic Associates
Festo

Part#:160251

Manufacturer:Festo

Alt. Part#:SME-8-O-K-LED-24

Product Lifecycle:Active

In-stock parts: 2

Nov 16, 2024

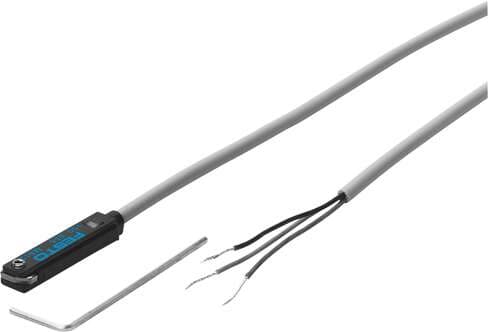

proximity sensor SME-8-O-K-LED-24 Electric, with reed contact, N/C contact, for drives with T-slot, with cable. Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for E

About the manufacturer: Festo is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 160251 Festo price in the box on the right side or send a quick quote.

Product Details

  • Short-circuit protection
    no
  • Connection outlet orientation
    Longitudinal
  • Conforms to standard
    EN 60947-5-2
  • Measuring principle
    Magnetic reed
  • Reproducibility of switching value
    +/- 0.1 mm
  • On time
    2 ms
  • Type code
    SME
  • Certification
    RCM compliance mark
  • Ambient temperature
    -40 °C ... 60 °C
  • Switch-off time
    0.2 ms
  • Min. switching capacity AC
    1.5 VA
  • Tightening torque
    0.2 Nm
  • Switching output
    Contact-based, bipolar
  • Voltage drop
    ≤ 2.5 V
  • Operating voltage range AC
    12 V ... 30 V
  • Cable length
    7.5 m
  • Housing material
    Epoxy resin High-alloy stainless steel
  • Product weight
    50 g
  • Insulation voltage
    50 V
  • Design
    for T-slot
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Switching element function
    N/C contact
  • Max. output current
    50 mA
  • Overload protection
    Not available
  • DC operating voltage range
    12 V ... 30 V
  • Reverse polarity protection
    no
  • Switching status indication
    LED yellow
  • Symbol
    00991147
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Max. switching capacity DC
    1.5 W
  • Electrical connection
    3-wire Cable
  • Type of mounting
    Clamped in T slot Can be inserted in slot lengthwise
  • Ambient temperature with flexible cable installation
    -5 °C ... 60 °C
  • Contamination level
    3
  • Material of cable sheath
    TPE-U(PUR)
  • Degree of protection
    IP67
  • Surge resistance
    0.8 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 160251 Specs

160251 160251 DataSheet.pdf
