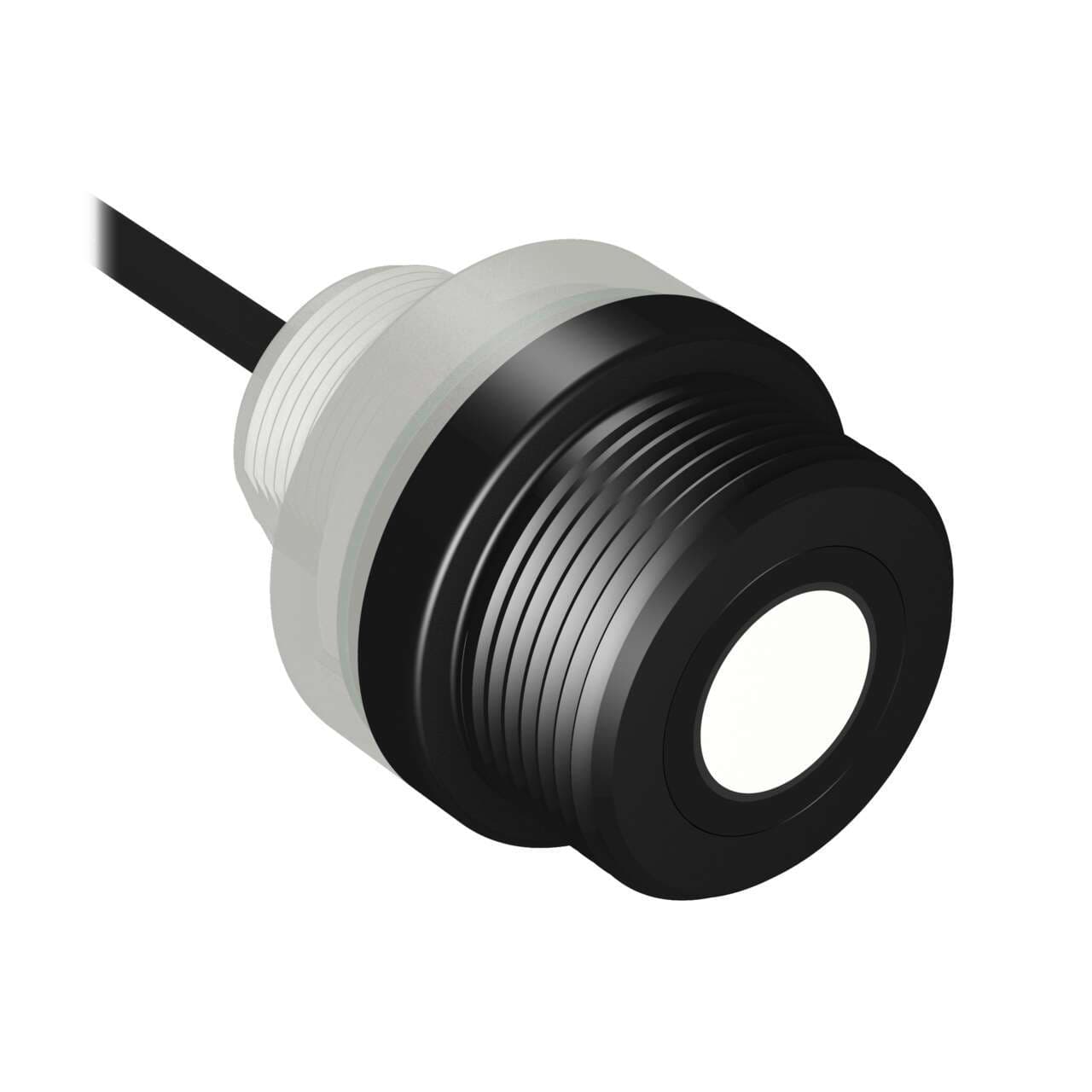

K50UX1CRA Banner Ultrasonic Sensors
Part#:K50UX1CRA
Alt. Part#:94613
Manufacturer:Banner
Category:Ultrasonic Sensors
Product Lifecycle:Active
Product description
K50 Ultrasonic Sensor; 1-Wire Serial Interface; Range: 300 mm - 3 m (11.8 in to 118 in); 230 mm (9 in) M12 Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin US
- Profibus No
- 1-wire Serial Interface Yes
- RS-485 No
- RS-232 No
- PROFINET No
- IO Link No
- Feature: Chemical Resistant No
- Common Ethernet Protocol No
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Feature: Clear Object Detection Yes
- Power/Current Consumption (exclusive of load) 180 uA (Default Sensing); 40 uA (Disabled Sensing); 3.3 mA (Active Comms)
- Barrel Diameter (mm) 50
- Min Operating Temperature (°C) -40
- Max Operating Temperature (°C) 70
- Output Protection Protected against short circuit conditions
- Minimum Sensing Distance (mm) 300
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Max Sensing Distance (mm) 3000
- Wireless Yes
- SSI No
- Application: Ultrasonic Yes
- Ultrasonic Frequency (kHz) 114
- Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
- IP Rating IP67
- NEMA Rating NEMA 6
- Max Discrete (Switched) Output (mA) 10
- Output Saturation Voltage NPN Outputs < 0.7 V at 20 mA
- Number of Pins 5
- Adjustments Software
- Power Supply 3.5-5.5 V dc
- Analog Resolution/Discrete Repeatability 0.1% of distance (1.5 min)
- Quick Disconnect Type M12 (Euro)
- Connection Pigtail QD
- Indicator LED(s)
- Sensing Mode (General) Proximity
- Max Measurement Range >1 m - <=20 m
- Sensing Mode (Detailed) Time of Flight
- Cable Length (m) 0.15
- PC Configurable No
- Input/Output Serial
- Power DC
- Housing Style Barrel
- RS-422 No
- Feature: Timing (Hold/Delay) No
- Delay at Power-up (ms) 10000
- Temperature Effect (mm/°C) 0.02% of sensing distance/°C
- Primary Housing Material PBT
- Device Type Sensor
- Sensing Beam Ultrasonic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50UX1CRA on Powermatic Associates is $384.00. Order now.
About the product
Banner Engineering K50UX1CRA is a wireless ultrasonic distance sensor belonging to the K50U series. It features a time-of-flight system and a 1-wire serial interface for software adjustments. This sensor is designed with an M50 cylindrical threaded/barrel shape and is constructed with a thermoplastic housing. It comes pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector. The K50UX1CRA operates on a supply voltage of 3.5Vdc to 5.5Vdc, with a nominal voltage of 5Vdc. It is designed to function within an ambient air temperature range of -40 to +70 degrees Celsius. This sensor offers a degree of protection rated at IP67 and NEMA 6, ensuring its durability in various environmental conditions. The thread size is M50, and it can sense distances ranging from 10cm to 1m. The transmission frequency of the K50UX1CRA is 114kHz.
