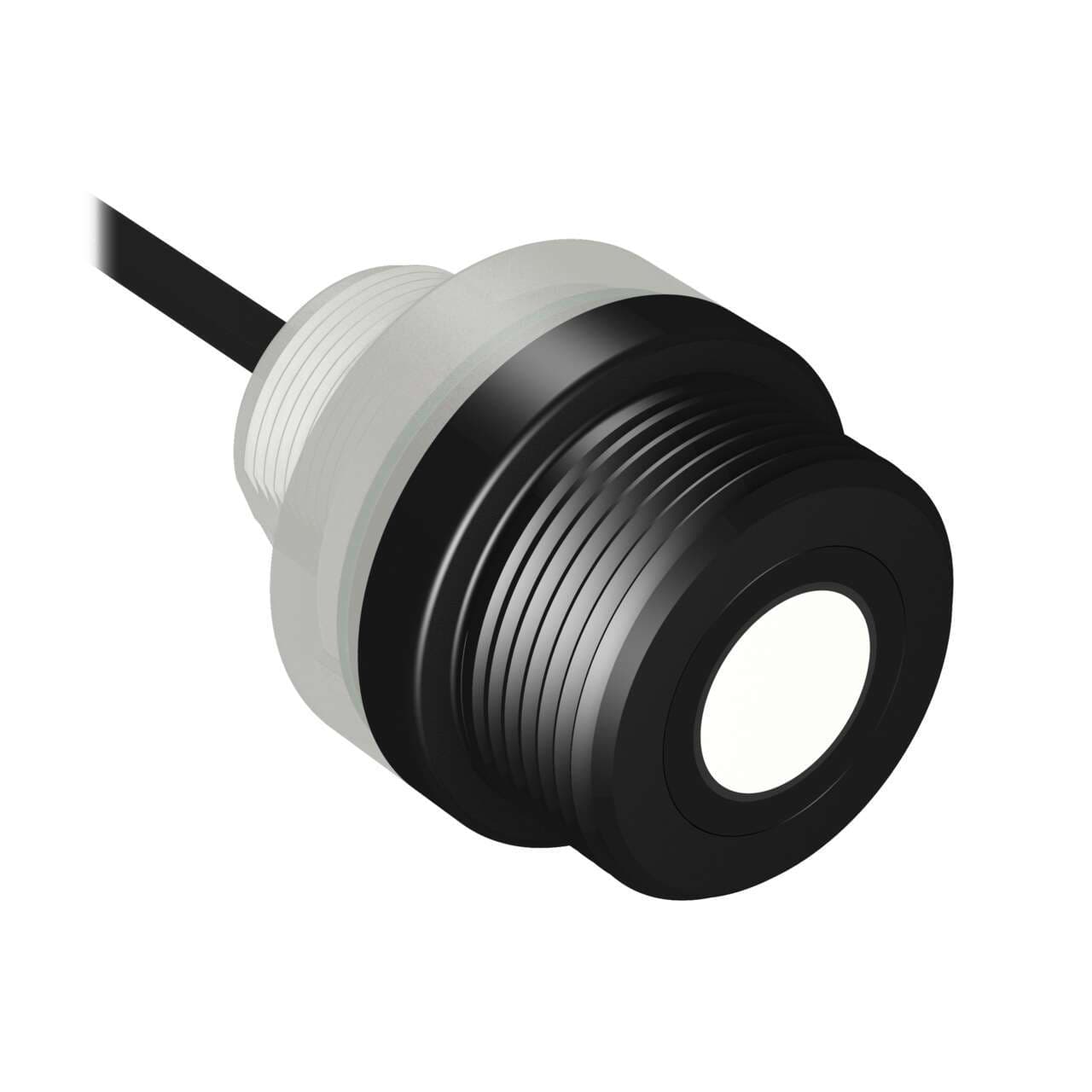

K50UX2CRA Banner Ultrasonic Sensors

Product Details

• Weight
  113.398 g
• Country Of Origin
  US
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-422
  No
• Wireless
  Yes
• RS-232
  No
• RS-485
  Yes
• PROFINET
  No
• Common Ethernet Protocol
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Barrel Diameter (mm)
  50
• Feature: Clear Object Detection
  Yes
• Application: Ultrasonic
  Yes
• Feature: Timing (Hold/Delay)
  No
• Power/Current Consumption (exclusive of load)
  11.3 mA @ 30 V dc
• Ultrasonic Frequency (kHz)
  114
• Feature: Chemical Resistant
  No
• Min Operating Temperature (°C)
  -40
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Max Operating Temperature (°C)
70
NEMA Rating
NEMA 6
Number of Pins
5
Output Protection
Protected against short circuit conditions
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Adjustments
Software
IP Rating
IP67
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Delay at Power-up (ms)
10000
Primary Housing Material
PBT
Power Supply
3.5-5.5 V dc / 10-30 V dc
Analog Resolution/Discrete Repeatability
0.1% of distance (1.5 min)
Indicator
LED(s)
Max Sensing Distance (mm)
3000
Connection
Pigtail QD
Max Measurement Range
>1 m - <=20 m
Sensing Mode (Detailed)
Time of Flight
PC Configurable
No
Cable Length (m)
0.15
Sensing Beam
Ultrasonic
Power
DC
Input/Output
Serial (Modbus)
Sensing Mode (General)
Proximity
IO Link
No
Minimum Sensing Distance (mm)
300
Quick Disconnect Type
M12 (Euro)
Device Type
Sensor
Housing Style
Barrel
