QS18UPA
Banner
Product Lifecycle: Active

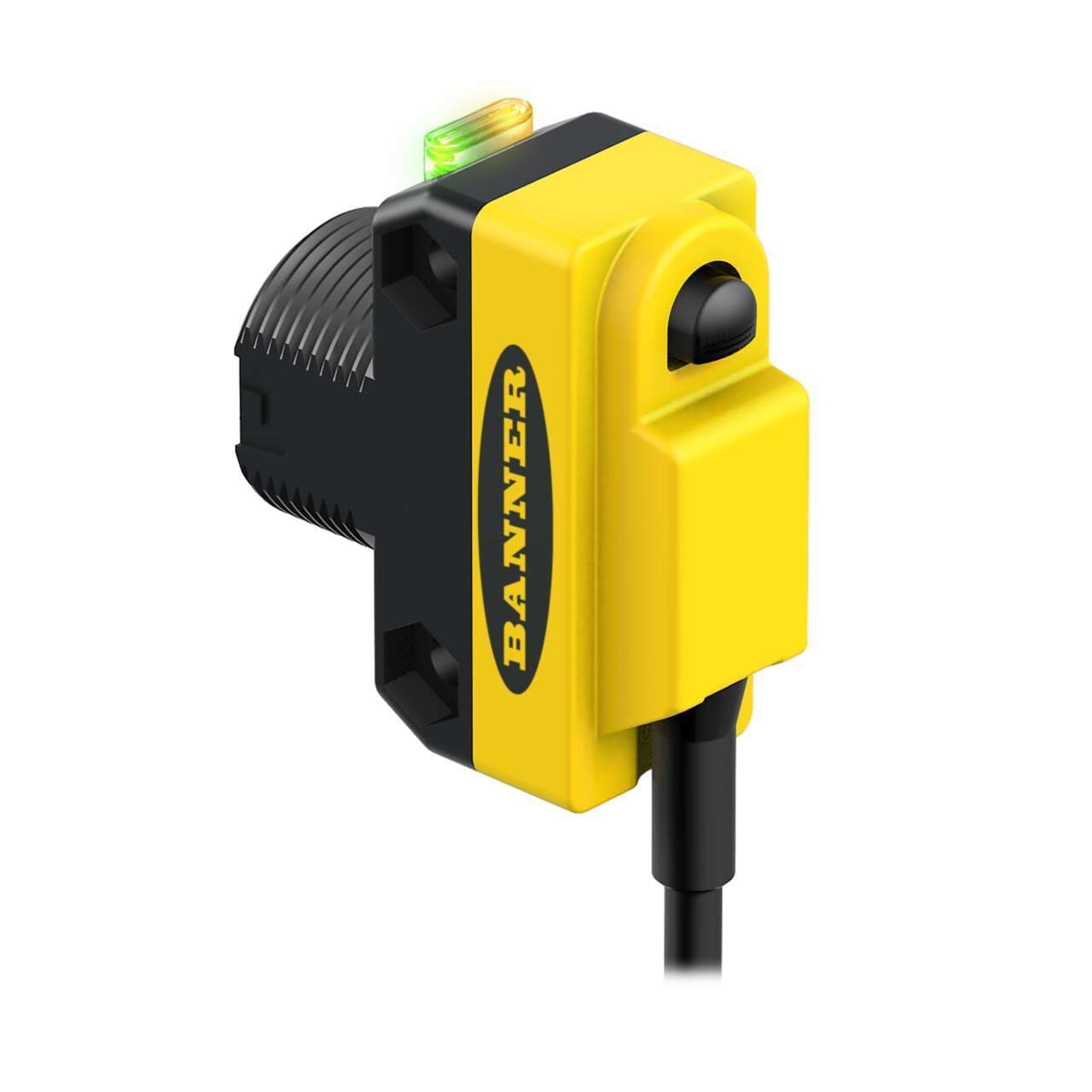

Banner Engineering QS18UPA is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and TEACH mode for precise distance measurement. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. The QS18UPA offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and operates at a 300kHz transmission frequency. The sensor's housing is made from ABS material, providing a robust structure. It has a sensing distance range of 50 to 500mm and includes 1 x digital output (PNP transistor) for connectivity. Additionally, it is equipped with protection functions against short-circuit incidents.
![QS18UPA](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F6369b6b8-0570-4664-9947-11f308fbde1c.jpeg&w=3840&q=75)
Banner Engineering QS18UPA is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and TEACH mode for precise distance measurement. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. The QS18UPA offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and operates at a 300kHz transmission frequency. The sensor's housing is made from ABS material, providing a robust structure. It has a sensing distance range of 50 to 500mm and includes 1 x digital output (PNP transistor) for connectivity. Additionally, it is equipped with protection functions against short-circuit incidents.
Product details
- 1-wire Serial InterfaceNo
- ProfibusNo
- WirelessNo
- RS-485No
- RS-422No
- SSINo
- Common Ethernet ProtocolNo
- Application: UltrasonicYes
- IO LinkNo
- Feature: Timing (Hold/Delay)No
- Feature: Chemical ResistantNo
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Ultrasonic Frequency (kHz)300
- Minimum Window Size (mm)5
- Max Off-state Leakage Current (µA)PNP: < 5
- Discrete Output Hysteresis (mm)1.4
- Rep Rate (ms)7.5
- PROFINETNo
- RS-232No
- Feature: Remote TeachYes
- Feature: Clear Object DetectionYes
- Power/Current Consumption (exclusive of load)25 mA max
- Minimum Response Time (ms)15
- Min Operating Temperature (°C)-20
- Barrel Diameter (mm)18
- NEMA RatingNEMA 6P
- Warm-up Time (minutes)5
- Max Op. Relative Humidity Non-Condensing (%)100
- Max Operating Temperature (°C)60
- IP RatingIP67
- Output ProtectionProtected against short circuit conditions
- Max Discrete (Switched) Output (mA)100
- Discrete (Switched) Outputs1 PNP
- Output Saturation Voltage PNP Outputs< 2.0 V at 100 mA
- Output Saturation Voltage NPN Outputs< 1.6 V at 100 mA
- VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Number of Pins4
- Temperature Effect (mm/°C)+/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
- AdjustmentsTeach Button
- Power Supply12-30 V dc
- Minimum Sensing Distance (mm)50
- Delay at Power-up (ms)300
- IndicatorLED(s)
- Input/OutputDiscrete
- Primary Housing MaterialABS
- Max Sensing Distance (mm)500
- Analog Resolution/Discrete Repeatability0.7
- Quick Disconnect TypeNo QD
- ConnectionFlying Leads
- Max Measurement Range>100 mm - <=500 mm
- Cable Length (m)2
- Housing StyleRectangular w/M18 Mount
- Sensing Mode (Detailed)Time of Flight
- PowerDC
- Device TypeSensor
- PC ConfigurableNo
- Sensing BeamUltrasonic
- Sensing Mode (General)Proximity
