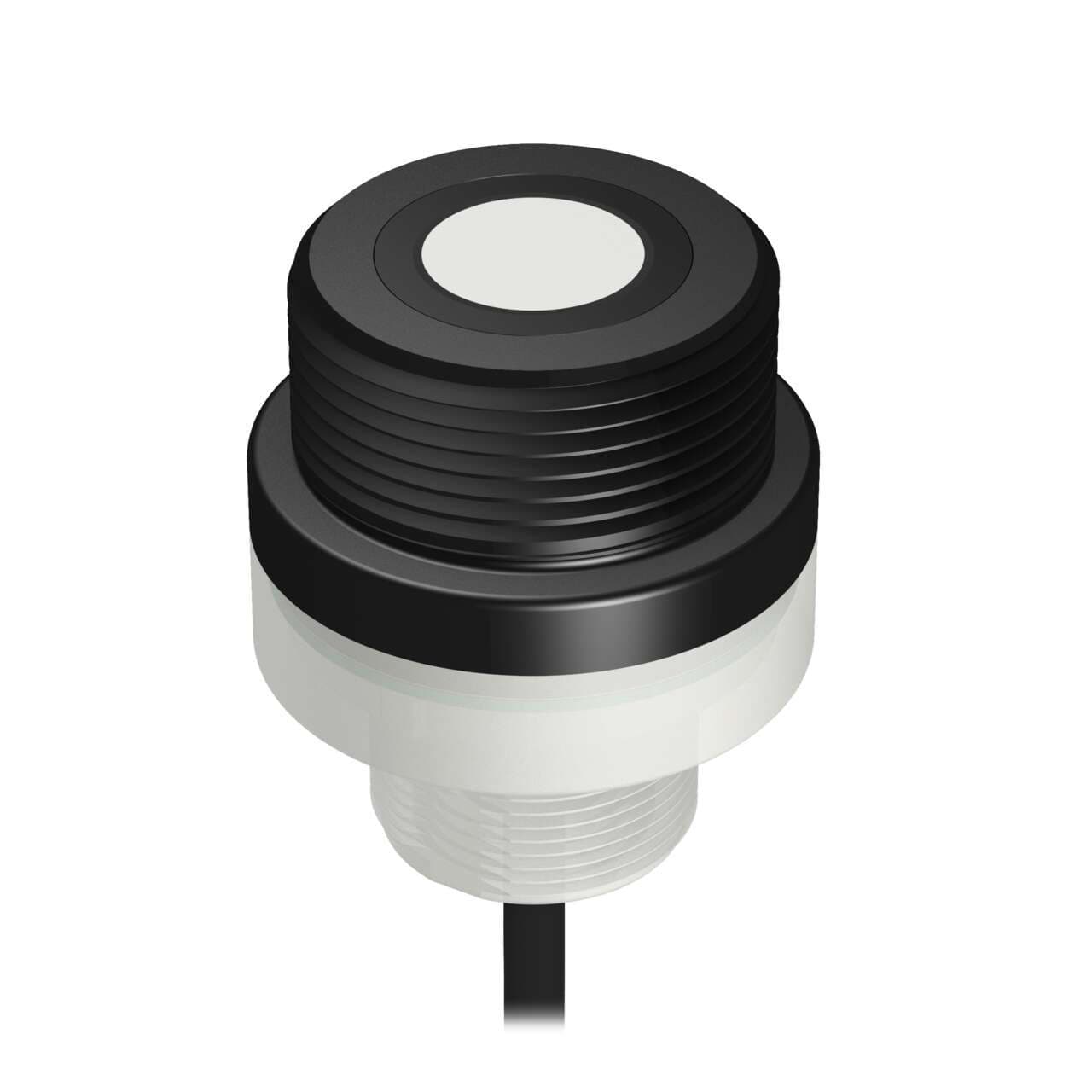

K50UX1ARA Banner Ultrasonic Sensors

Product Details

• Weight
  145.14944 g
• Country Of Origin
  US
• Device Type
  Sensor
• Barrel Diameter (mm)
  50
• Number of Pins
  5
• Cable Length (m)
  0.23
• Profibus
  No
• Wireless
  Yes
• SSI
  No
• 1-wire Serial Interface
  Yes
• PROFINET
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• IO Link
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• Feature: Clear Object Detection
  Yes
• Feature: Chemical Resistant
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Min Operating Temperature (°C)
-40
Feature: Timing (Hold/Delay)
No
Ultrasonic Frequency (kHz)
224
Output Saturation Voltage NPN Outputs
< 0.7 V at 20 mA
Output Protection
Protected against short circuit conditions
Max Operating Temperature (°C)
70
Power/Current Consumption (exclusive of load)
180 uA (Default Sensing); 40 uA (Disabled Sensing); 3.3 mA (Active Comms)
Max Discrete (Switched) Output (mA)
10
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
NEMA Rating
NEMA 6
IP Rating
IP67
Minimum Sensing Distance (mm)
100
Analog Resolution/Discrete Repeatability
0.1% of distance (1.5 min)
Quick Disconnect Type
M12 (Euro)
Max Sensing Distance (mm)
1000
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Adjustments
Software
Power Supply
3.5-5.5 V dc
Delay at Power-up (ms)
10000
Connection
Pigtail QD
Indicator
LED(s)
Input/Output
Serial
Primary Housing Material
PBT
Max Measurement Range
>500 mm - <=1000 mm
Sensing Mode (General)
Proximity
Power
DC
PC Configurable
No
Sensing Beam
Ultrasonic
Sensing Mode (Detailed)
Time of Flight
Housing Style
Barrel
