SMI30AN6RQ Banner Proximity Sensors

SMI30AN6RQ on Powermatic Associates
Banner
  • SMI30AN6RQ
  • SMI30AN6RQ

Part#:SMI30AN6RQ

Alt. Part#:35271

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

SMI30 Series: Receiver - Frequency A; Range: 140 m; Input: 10-30 V dc; Output: Light Operate - I.S. Interface; 3-pin Mini Integral QD

Product Details

  • Weight
    164.653896 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Indicator
    LEDs
  • Feature: Encapsulated
    Yes
  • Feature: Hazardous Area
    Yes
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    30
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    3
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IP Rating
    IP67
  • Repeatability (µs)
    1000
  • Delay at Power-up (ms)
    N/A
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    Yes
  • Operation
    Light Operate
  • Output response time (ms)
    10
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    NPN
  • Max Sensing Distance (mm)
    140000
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Barrel
  • Sensing Mode (Detailed)
    Receiver
  • Sensing Beam
    Infrared LED
  • Sensing Mode (General)
    Opposed
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMI30AN6RQ on Powermatic Associates is $196.00. Order now.

About the product

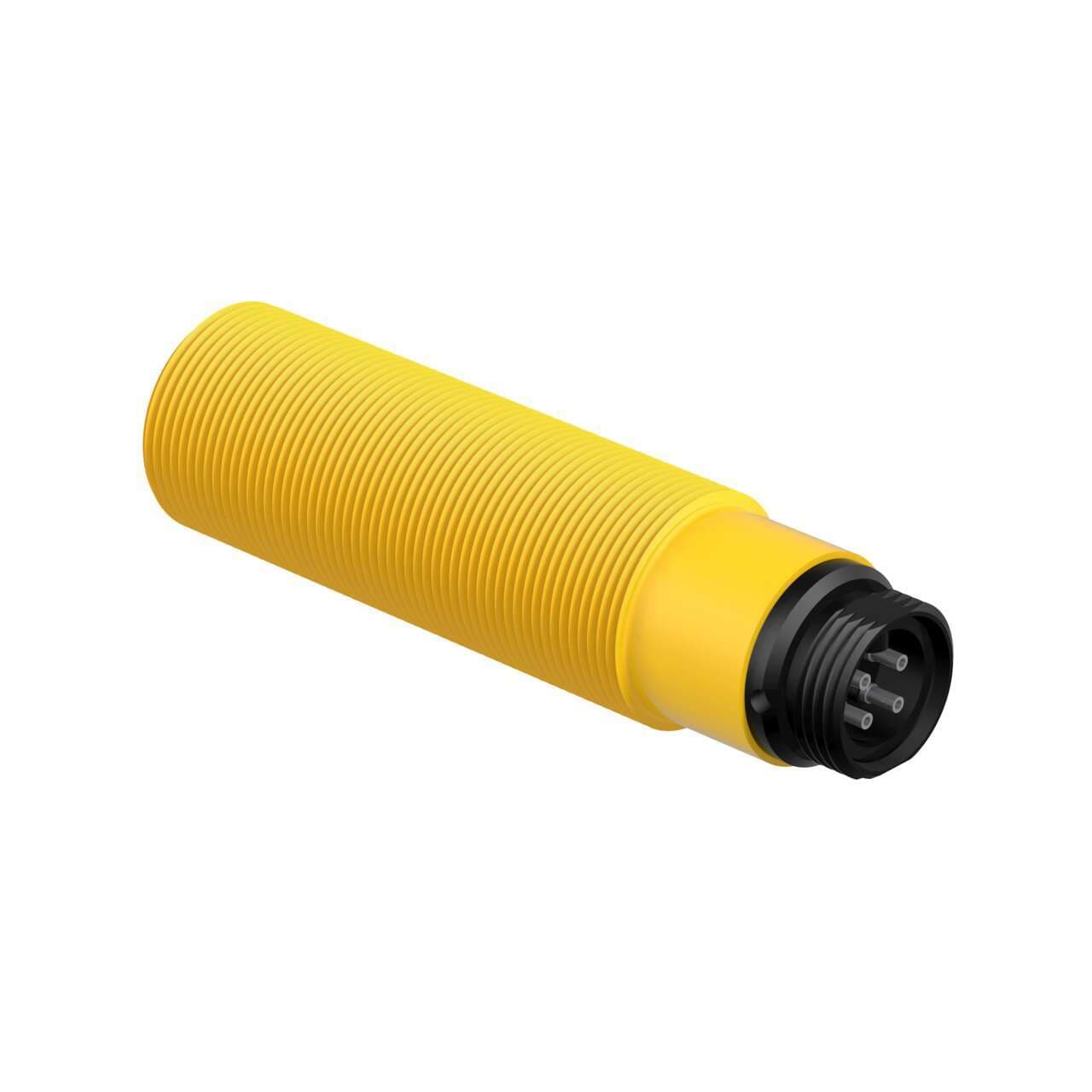

Banner Engineering SMI30AN6RQ is a sensor within the SMI30 series, designed as a through-beam system or opposed mode "A" modulation frequency photo-electric sensor. This intrinsically-safe photo-electric sensor, functioning as the receiver alone, is encased in a thermoplastic housing with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The SMI30AN6RQ features a cylindrical threaded/barrel shape with an M30 thread size. It has one digital output utilizing an NPN transistor, a sensing distance of up to 140 meters, and operates with infrared light at a wavelength of 880 nm. The sensor's response time is 10ms or 0.01 seconds, and it operates in a Light-ON mode.

SMI30AN6RQ Related Documents

35331.pdf
