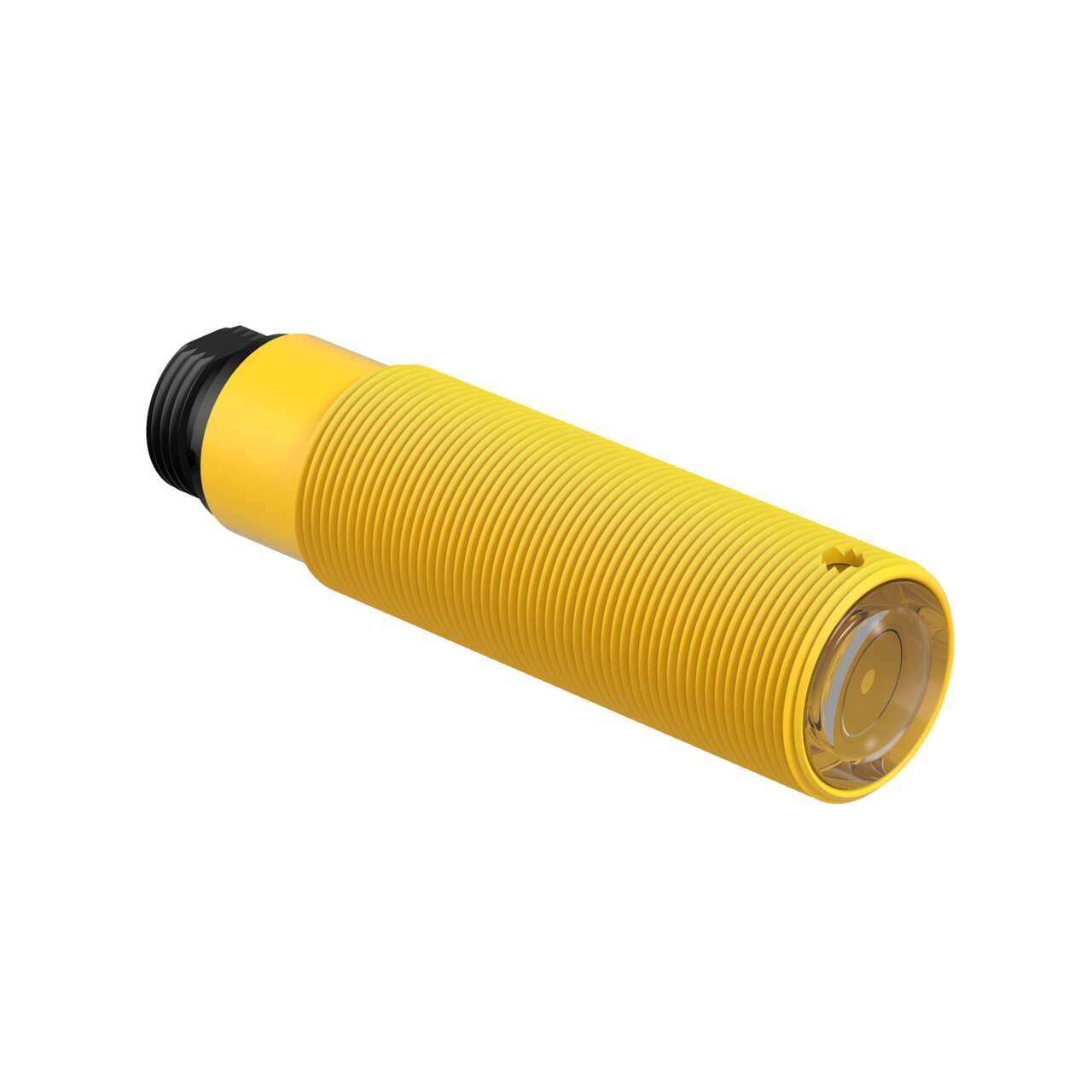

SMI306EBQ Banner Proximity Sensors

Name: SMI306EBQ
Brand: Banner
Price: 197 USD
Availability: BackOrder

Banner SMI306EBQ SMI30 Series: Emitter - Frequency B; Range: 140 m; Input: 10-30 V dc; Output: Not Applicable; 3-pin Mini Integral QD

Part#:SMI306EBQ

Manufacturer:Banner

Alt. Part#:35269

Product Lifecycle:Active

Get a quick Quote!

SMI30 Series: Emitter - Frequency B; Range: 140 m; Input: 10-30 V dc; Output: Not Applicable; 3-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SMI306EBQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
161.5694704 g
Country Of Origin
US
DeviceNet
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
Yes
Feature: Encapsulated
Yes
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
Emitter
Indicator
LEDs
Barrel Diameter (mm)
30
Adjustments
N/A
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6P
IP Rating
IP67
Number of Pins
3
Repeatability (µs)
1600
Delay at Power-up (ms)
N/A

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Yes

Output response time (ms)

Max Op. Temp. (°C)

Operation

N/A

Min Op. Temp. (°C)

-40

Quick Disconnect Type

7/8 in. (Mini)

Connection

Integral QD

Housing Style

Barrel

Max Sensing Distance (mm)

140000

Outputs

N/A

Primary Housing Material

Thermoplastic

Sensing Mode (General)

Opposed

Power Supply/Supply Voltage

10-30 V dc

Sensing Mode (Detailed)

Emitter

Power

Sensing Beam

Infrared LED

Light Color

Infrared (IR)

Response time

10ms / 0.01 s

Sub-range name

SMI30 series

Thread size

M30

Wavelength

880 nm

Main function

Sensor (Photo-electric)

Functions

Intrinsically-safe photo-electric emitter red LED (power ON)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Design

through-beam system / opposed mode

Degree of protection

IP67 NEMA 6P

Primary brand

Banner Engineering

Shape

Cylindrical threaded/barrel

Ambient air temperature for operation

-40...+70 °C

Material

thermoplastic housing Acrylic lns.

Connection type

Pre-equipped with 3-pin 7/8" Mini connector

Benefits

Very high excess gain Highly immune to noise

Order code / Manufacturer SKU

35269

Compliant with standard(s)

CE ATEX Ex cFMus CSA NRTL/C Exia ATEX II 2 G Ex ib IIC T5 Ta I / 1 / Ex ib / IIC / T5 Ta I / 1 / AEx ib / IIC / T5 Ta IEEx Ex ib IIC T5 Ta IEC IECEx FMG 14.0029X ATEX FM12ATEX0094X FM CoC 0003046293 FM CoC 0003046293C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SMI306EBQ Description

Banner Engineering SMI306EBQ is a sensor within the SMI30 series, designed as a through-beam system or opposed mode "B" modulation frequency photo-electric sensor. This intrinsically-safe photo-electric sensor functions as an emitter alone, housed in a thermoplastic material with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. The SMI306EBQ offers a degree of protection rated at IP67 NEMA 6P, ensuring its durability in various environmental conditions. Its M30 cylindrical threaded/barrel shape facilitates easy installation. With a sensing distance of up to 140 meters and a response time of 10ms (0.01 s), this sensor utilizes infrared (IR) light with a wavelength of 880 nm for detection, and it features a thread size of M30.

$197.00

Request a quote, and we will send availability within minutes.

Select Qty:

$197.00

$197.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
