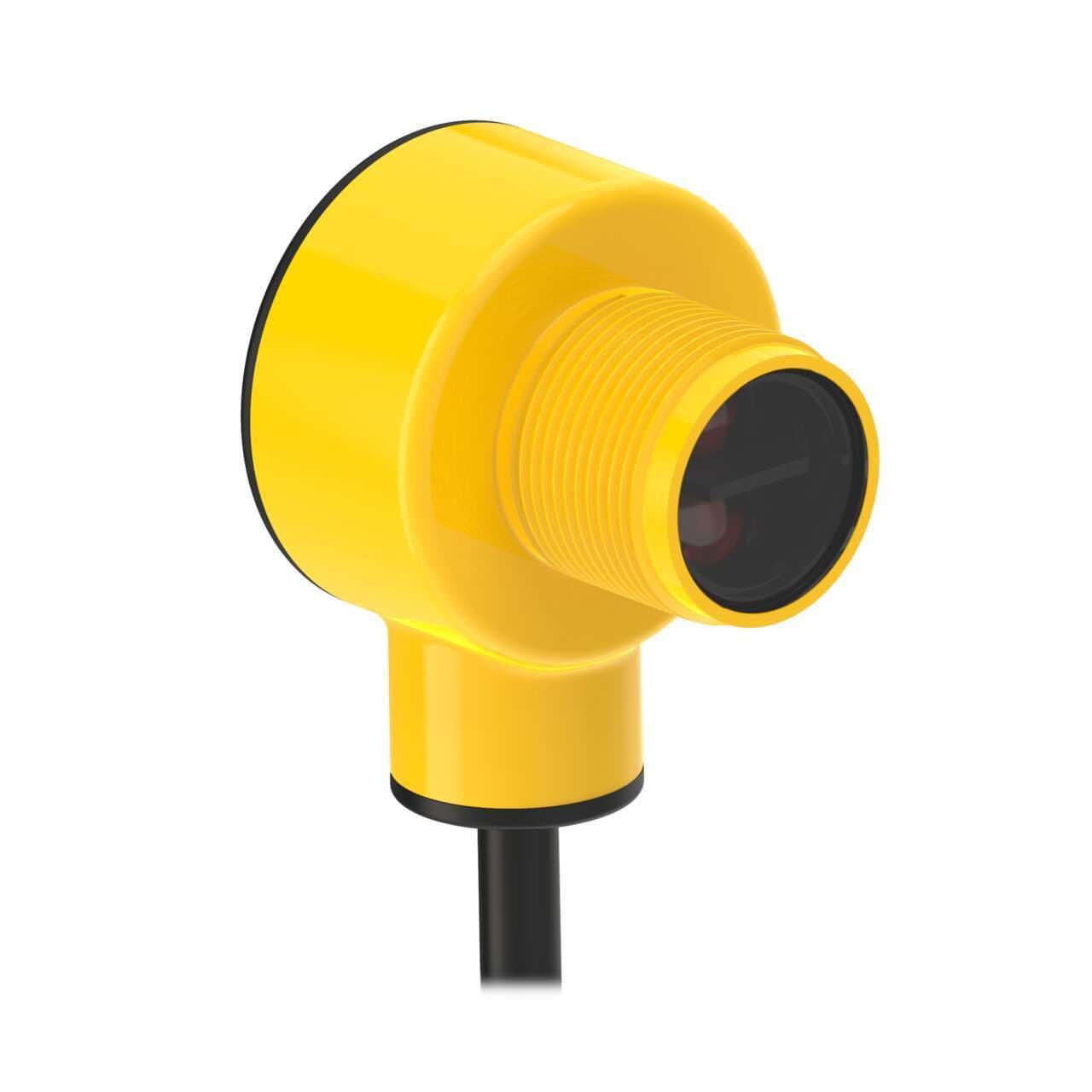

T18-2VPLP-2M Banner Proximity Sensors

T18-2VPLP-2M on Powermatic Associates
Banner

Part#:T18-2VPLP-2M

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:802626

Product Lifecycle:Active

In-stock parts: 5

Dec 7, 2024

T18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: complementary PNP; 2 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T18-2VPLP-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    MX
  • Feature: Timing (Hold/Delay)
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • NEMA Rating
    NEMA 6P
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Indicator
    Indicator LEDs
  • Lens Material
    Acrylic
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • IP Rating
    IP67, IP68, IP69
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    100
  • Number of Pins
    4
  • Delay at Power-up (ms)
    500
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    1.5
  • Sensing Beam Wavelength
    624
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Cable
  • Outputs
    PNP
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    6000
  • Sensing Mode (Detailed)
    Polarized
  • Housing Style
    Barrel
  • Power
    DC
  • Sensing Mode (General)
    Retroreflective
  • Input/Output
    Discrete
  • Sensing Beam
    Visible Red LED
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T18-2VPLP-2M Description

Banner Engineering T18-2VPLP-2M is a polarized photo-electric sensor from the T18-2 series, designed in a retro-reflective mode. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. This sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environmental conditions. The T18-2VPLP-2M has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor; complementary), and provides a sensing distance of up to 6m. It emits visible red light and has a quick response time of 1.5ms / 0.0015 s. This sensor supports both Light-ON and Dark-ON operating modes and is equipped with an M18 thread size.

Related documents T18-2VPLP-2M Specs

T18-2VPLP-2M 201875.pdf

This item can ship within 24h!

Manufacturer warranty
