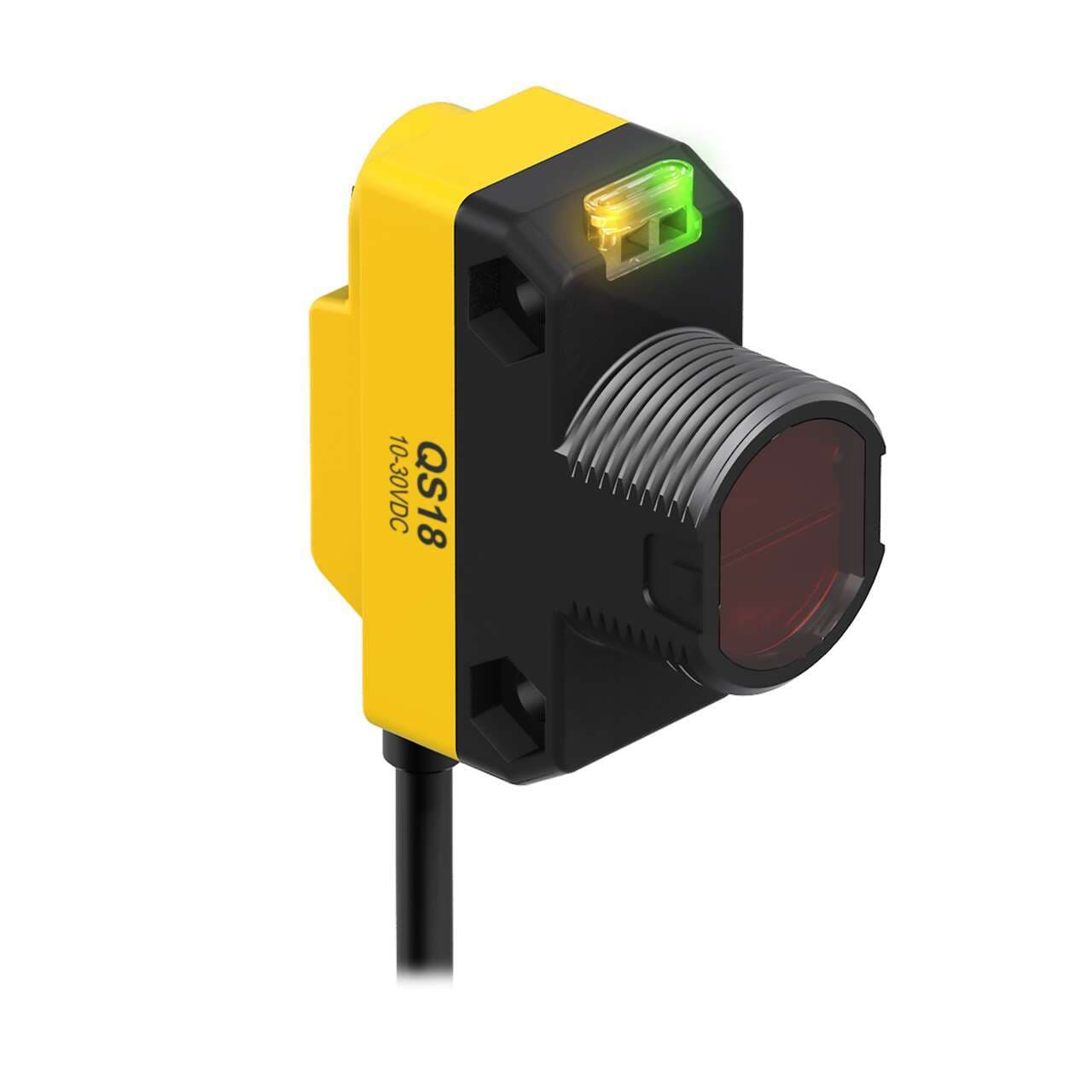

QS18VP6LPQ5 Banner Proximity Sensors

QS18VP6LPQ5 on Powermatic Associates
Banner

Part#:QS18VP6LPQ5

Manufacturer:Banner

Alt. Part#:63188

Product Lifecycle:Active

In-stock parts: 12

Nov 16, 2024

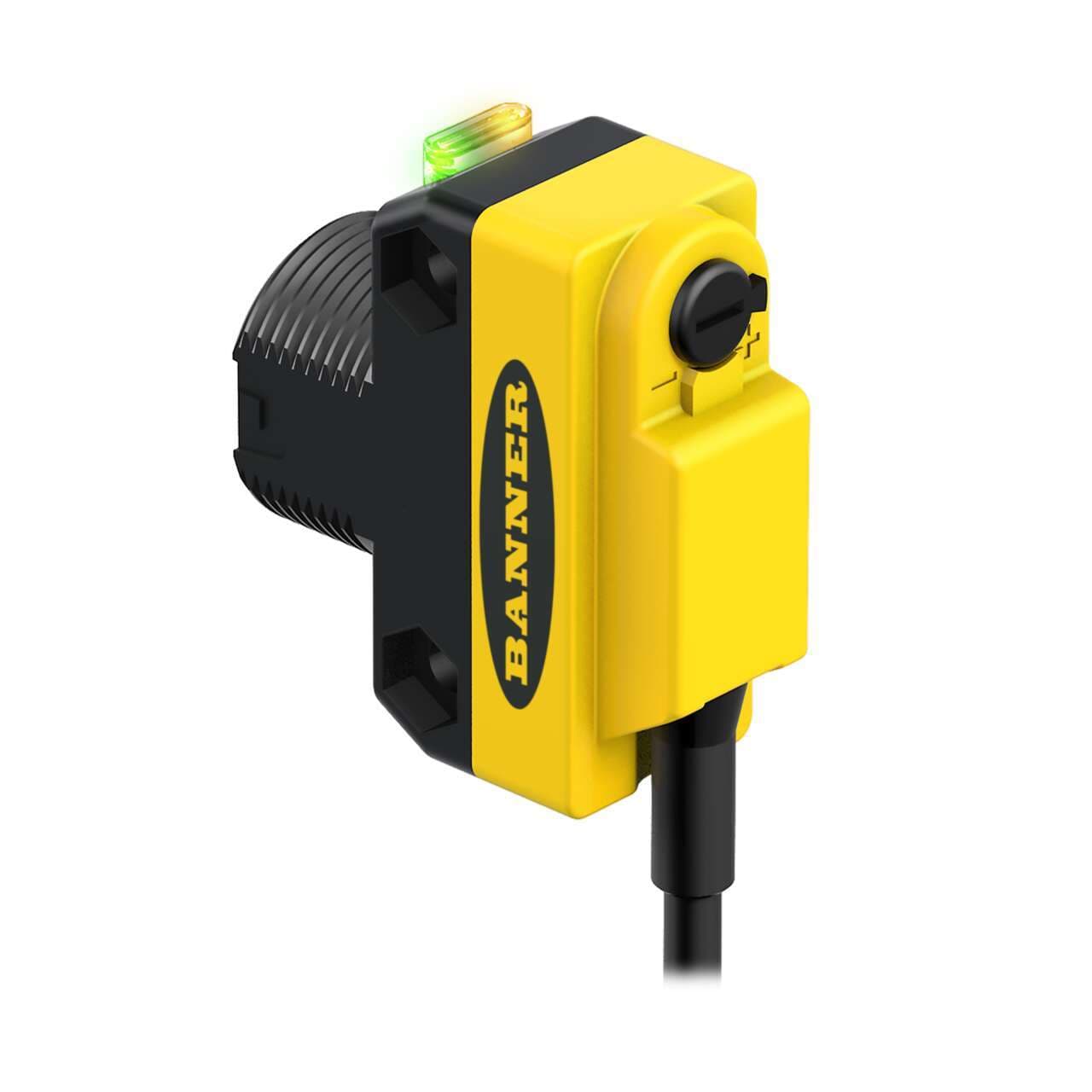

WORLD-BEAM: Polarized Retro; Range: 3.5 m; Input: 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18VP6LPQ5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    MX
  • Feature: Encapsulated
    No
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • Adjustments
    Potentiometer
  • Delay at Power-up (ms)
    100
  • NEMA Rating
    NEMA 6
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • IP Rating
    IP67
  • Repeatability (µs)
    150
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    630
  • Number of Pins
    4
  • Special Feature: Remote Teach
    No
  • Operation
    Light/Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    0.6
  • Power Supply/Supply Voltage
    10-30 V dc
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    3500
  • Housing Style
    Rectangular w/M18 Mount
  • Primary Housing Material
    ABS
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Polarized
  • Sensing Mode (General)
    Retroreflective
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Product series / family name
    WORLD-BEAM series
  • Sensing distance
    3.5m
  • Main function
    Sensor (Photo-electric)
  • Functions
    Polarized photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
  • Light Color
    Visible red
  • Mounting mode
    Threaded mount
  • Compliant with standard(s)
    cURus CE
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    retro-reflective mode
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -20...+70 °C
  • Primary brand
    Banner Engineering
  • Thread size
    M18
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    63188
  • Sub-range name
    QS18 series
  • Shape
    Rectangular
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Digital outputs
    1 x digital output (PNP transistor)
  • Degree of protection
    IP67 NEMA 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18VP6LPQ5 Description

Banner Engineering QS18VP6LPQ5 is a polarized photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is built in a rectangular shape with a thermoplastic housing and an acrylic lens for durability. This sensor employs a retro-reflective mode with potentiometer adjustment for precise control and is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for easy connection. Part of the QS18 series, it offers a sensing distance of up to 3.5m and utilizes visible red light for detection. The QS18VP6LPQ5 operates on a supply voltage of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and includes 1 x digital output (PNP transistor; complementary NO/NC) for flexible output options. It is designed to meet IP67 and NEMA 6 degrees of protection, ensuring operation in various environmental conditions with both Light-ON and Dark-ON operating modes.

Related documents QS18VP6LPQ5 Specs

QS18VP6LPQ5 197052.pdf
