LRD14 Schneider Electric Industrial Automation Components
Part#:LRD14
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Get a quick Quote!

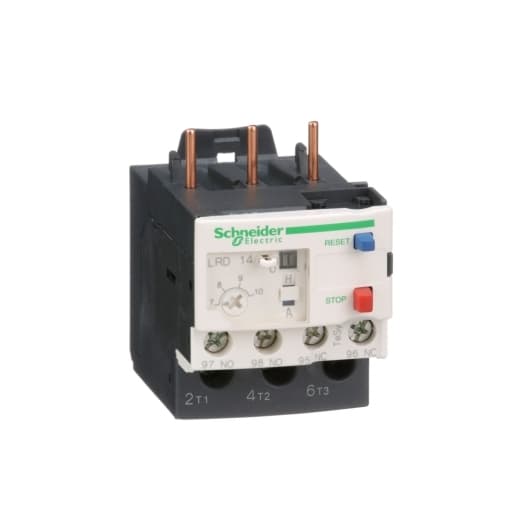

Schneider Electric LRD14, part of the LRD sub-range, is a differential thermal overload relay designed for direct connection to a contactor and features screw-clamp connections for both upstream and outgoing cables, as well as the control circuit. This 3-pole device offers protection functions classified as Class 10A, with a rated current of 7-10 A. The protection settings for thermal overload are adjustable between 7 to 10A. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact. The rated voltage for AC phase-to-phase, applicable up to 400Hz, is 690 V. The minimum and maximum current settings are 7 A and 10 A, respectively.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LRD14 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Product Compatibility LC1D09 LC1D12 LC1D38 LC1D32 LC1D25 LC1D18
- Connections - Terminals Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 m
- [Ui] Rated Insulation Voltage Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
- Mounting Support Plate, with specific accessories Rail, with specific accessories Under contactor
- Control Type Red push-button stop Blue push-button reset
- Associated Fuse Rating 4 A gG signalling circuit 4 A BS signalling circuit
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
- Permissible Current 3 A 120 V AC-15 signalling circuit 0.22 A 125 V DC-13 signalling circuit
- Network Type AC DC
- Net Weight 0.27 lb(US) (0.124 kg)
- Depth 2.76 in (70 mm)
- Width 1.77 in (45 mm)
- Height 2.60 in (66 mm)
- Temperature Compensation -4…140 °F (-20…60 °C)
- Phase Failure Sensitivity Tripping current 130 % of Ir on two phase, the last one at 0
- [Uimp] Rated Impulse Withstand Voltage 6 kV
- Auxiliary Contact Composition 1 NO + 1 NC
- [Ith] Conventional Free Air Thermal Current 5 A signalling circuit
- [Ue] Rated Operational Voltage 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1
- Network Frequency 0...400 Hz
- Thermal Protection Adjustment Range 7…10 A
- Thermal Overload Class Class 10A IEC 60947-4-1
- Relay Application Motor protection
- Product Or Component Type Differential thermal overload relay
- Device Short Name LRD
- Product Name TeSys LRD
- Range TeSys
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
