RSC WKC 578-3.5M Turck Cordsets

Turck RSC WKC 578-3.5M RSC WKC 578-3.5M DeviceNet™ Cordset, Extension Cordset
Turck

Part#:RSC WKC 578-3.5M

Manufacturer:Turck

Alt. Part#:U-24439

Product Lifecycle:Active

In-stock parts: 256

Oct 5, 2024

RSC WKC 578-3.5M DeviceNet™ Cordset, Extension Cordset

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RSC WKC 578-3.5M Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


RSC WKC 578-3.5M Description

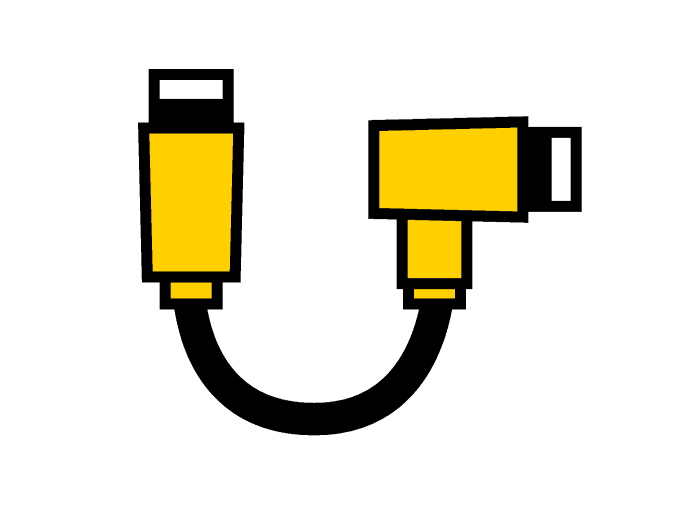

Turck RSC WKC 578-3.5M is a DeviceNet double-ended cable/cordset featuring a 5-pin M12 eurofast male connector with a large plug body straight to a right-angled 5-pin M12 eurofast female connector with a large plug body. It is constructed with a nickel-plated brass coupling nut and a PVC jacket. The cable sheath has an outer diameter of 8.5mm and the length of the cable is 3.5 meters (approximately 11 feet). The cable is gray, designed for a rated current of 4A, and has a cross-section of 4 x #22AWG. It offers a degree of protection rated at IP68 and NEMA 1, 3, 4, 6P, with a rated voltage of 250Vac.



Related documents RSC WKC 578-3.5M Specs

This item can ship within 24h!

Manufacturer warranty

$57.20

Stock:

256

Select Qty:

$57.20

$57.20 each

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support
