QDE-815D Banner Cordsets

Name: QDE-815D
Brand: Banner
Price: 37 USD
Availability: InStock

Part#:QDE-815D

Manufacturer:Banner

Alt. Part#:70883

Product Lifecycle:Active

In-stock parts: 2

Nov 23, 2024

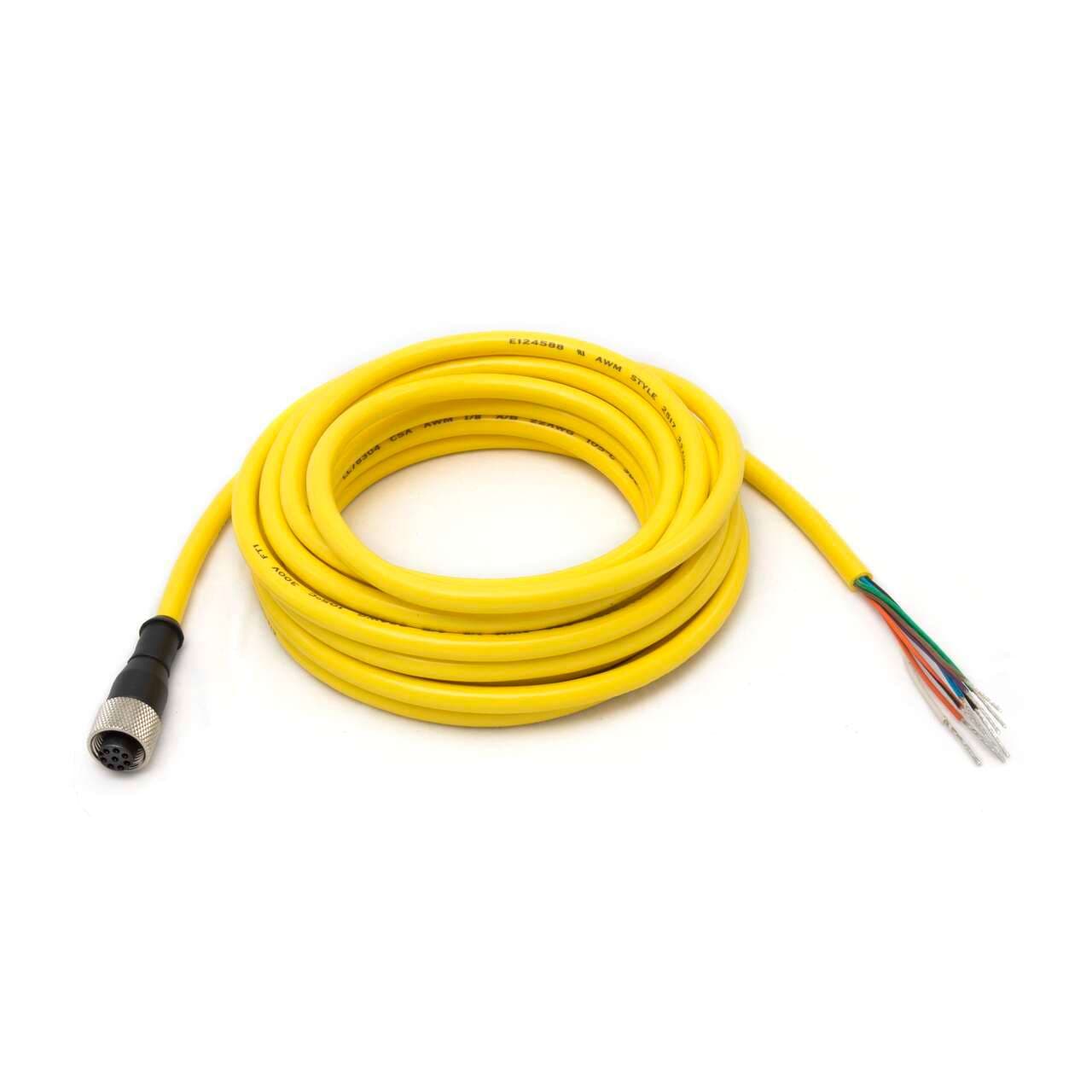

Cordset: Single Ended M12; 8-pin Straight Female; 4.57 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QDE-815D Banner price in the box on the right side or send a quick quote.

Product Details

Weight
294.8348 g
Country Of Origin
TW
Oil/Grease Resistant
No
Feature: Hazardous Area
No
Primary Number of Conductors
8
Secondary Connector Type
Flying Leads
Primary AWG
22
Primary Orientation
Straight
Current Rating (A)
2.0
IP Rating
IP67
Voltage Rating (V)
75 V ac/dc
Coupling Material/Color
Nickel Plated Brass
Minimum Temp. (°C)
-40
Primary Connector Type
EURO
Maximum Temp. (°C)
105
Primary Gender
Female
Primary Coupling Method
M12 Single Key
Shield/No Shield
No Shield
Trunk Length (m)
No Trunk
Outside Cable Diameter (mm)
6

Cordset Length (m)

4.57

Connector Body Material/Color

PUR Black

Cable Jacket Color

Yellow

Cable Jacket Material

PVC

Number of Connectors

Number of Contacts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QDE-815D Description

Banner Engineering QDE-815D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female connector and bare end flying leads, facilitating easy and versatile connections. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, ensuring durability and visibility in different environments. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius, making it suitable for use in a wide range of industrial settings. With a length of 15ft (5m) and a rated voltage of 75Vdc, this cable offers ample reach and power handling capability for numerous applications. The QDE-815D is also designed to meet IP67 standards, providing protection against dust and water ingress.
