PKG 4M-10/S90/S101 Turck Cordsets

Name: PKG 4M-10/S90/S101
Brand: Turck
Price: 98.7 USD
Availability: InStock

Turck PKG 4M-10/S90/S101 PKG 4M-10/S90/S101 Industrial Sensor Cable, PUR cable jacket

Part#:PKG 4M-10/S90/S101

Manufacturer:Turck

Alt. Part#:U0895-74

Product Lifecycle:Active

In-stock parts: 20

Sep 28, 2024

PKG 4M-10/S90/S101 Industrial Sensor Cable, PUR cable jacket

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 4M-10/S90/S101 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
263 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 4M-10/S90/S101 Description

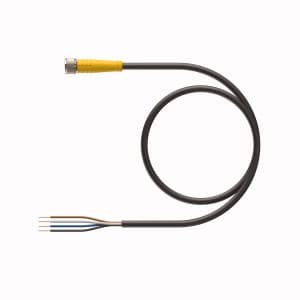

Turck PKG 4M-10/S90/S101 is a single-ended mating cable/cordset designed for various automation applications. This product features a 10-meter-long cable with a diameter of 4.2mm for the cable sheath O.D. It is equipped with a 4-pin M8 picofast female connector with an M8x1 threaded coupling nut and bare end flying leads, suitable for connections requiring a 4-wire configuration with a cross-section of 4 x #26AWG. The cable is designed with a foil shield and drain wire to protect against electromagnetic interference, and it is rated for a current of 2A and a voltage of 125Vac. The PKG 4M-10/S90/S101 offers a high degree of protection with ratings of IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for use in various environmental conditions. The coupling nut is made from nickel-plated brass, and the cable jacket is constructed from TPU, colored black. This product is part of Turck's M8 picofast to bare leads sub-range.

$98.70

Stock:

Select Qty:

$98.70

$98.70 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
