PKG 3Z-0.6-PSG 3 Turck Cordsets

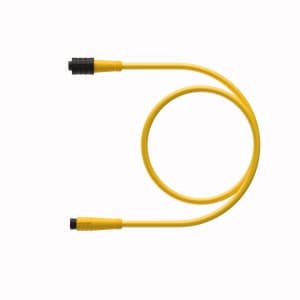

Turck PKG 3Z-0.6-PSG 3 PKG 3Z-0.6-PSG 3 Actuator and Sensor Cordset, Extension Cable
Turck

Part#:PKG 3Z-0.6-PSG 3

Manufacturer:Turck

Alt. Part#:U2134-10

Product Lifecycle:Active

In-stock parts: 3

Sep 28, 2024

PKG 3Z-0.6-PSG 3 Actuator and Sensor Cordset, Extension Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 3Z-0.6-PSG 3 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    26 g
  • Cable length (L)
    0.60  m
  • U99-10765
    PKG 3Z-25-PSG 3
  • U-51311
    PKG 3Z-23-PSG 3
  • U0076-65
    PKG 3Z-16-PSG 3
  • U0076-64
    PKG 3Z-14-PSG 3
  • U-10452
    PKG 3Z-15-PSG 3
  • U99-10746
    PKG 3Z-10-PSG 3
  • U-04834
    PKG 3Z-11-PSG 3
  • U-04833
    PKG 3Z-9-PSG 3
  • U2134-39
    PKG 3Z-8-PSG 3
  • U-07942
    PKG 3Z-7.5-PSG 3
  • U-45388
    PKG 3Z-7-PSG 3
  • U0067-12
    PKG 3Z-6-PSG 3
  • U-06409
    PKG 3Z-3.5-PSG 3
  • U0069-41
    PKG 3Z-4-PSG 3
  • U0069-07
    PKG 3Z-3.1-PSG 3
  • U0065-52
    PKG 3Z-2.8-PSG 3
  • U0069-03
    PKG 3Z-3-PSG 3
  • U0065-5
    PKG 3Z-2.5-PSG 3
  • U0892-76
    PKG 3Z-2.4-PSG 3
  • U2133-97
    PKG 3Z-2-PSG 3
  • U2134-5
    PKG 3Z-1.5-PSG 3
  • U2135-26
    PKG 3Z-1.4-PSG 3
  • U2135-27
    PKG 3Z-1.3-PSG 3
  • U2134-29
    PKG 3Z-0.9-PSG 3
  • U2134-10
    PKG 3Z-0.6-PSG 3
  • U2134-23
    PKG 3Z-1.2-PSG 3
  • U2135-20
    PKG 3Z-1.1-PSG 3
  • U2134-88
    PKG 3Z-0.7-PSG 3
  • U2134-26
    PKG 3Z-0.3-PSG 3
  • Cable Jacket Color
    Yellow
  • Material coupling/housing B
    Plastic
  • Length Variants
    ID numberTypeCable length (L)U0928-46PKG 3Z-0.2-PSG 30.2U2134-26PKG 3Z-0.3-PSG 30.3U2134-89PKG 3Z-0.4-PSG 30.4U2134-05PKG 3Z-0.5-PSG 30.5U2134-10PKG 3Z-0.6-PSG 30.6U2134-88PKG 3Z-0.7-PSG 30.7U2134-41PKG 3Z-0.8-PSG 30.8U2134-29PKG 3Z-0.9-PSG 30.9U2134-04PK
  • Application
    Actuator and Sensor
  • U3501-60
    PKG 3Z-17-PSG 3
  • U3501-59
    PKG 3Z-13-PSG 3
  • U0069-3
    PKG 3Z-5-PSG 3
  • U-04832
    PKG 3Z-5.5-PSG 3
  • U0065-53
    PKG 3Z-2.3-PSG 3
  • U0912-31
    PKG 3Z-2.2-PSG 3
  • U2134-50
    PKG 3Z-1.8-PSG 3
  • U2135-25
    PKG 3Z-1.6-PSG 3
  • U2134-04
    PKG 3Z-1-PSG 3
  • U2134-41
    PKG 3Z-0.8-PSG 3
  • U2134-89
    PKG 3Z-0.4-PSG 3
  • U2134-05
    PKG 3Z-0.5-PSG 3
  • U0928-46
    PKG 3Z-0.2-PSG 3
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Cable Jacket Material
    PVC
  • Voltage
    125 V
  • Current
    4 A
  • Connector B
    M8 snap-on
  • Connector A - Style
    Straight, Female
  • Connector B - Style
    Straight, Male
  • Connector A
    Ø 8 mm
  • Connector A - Number of Pins
    3
  • Number of Conductors
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 3Z-0.6-PSG 3 Description

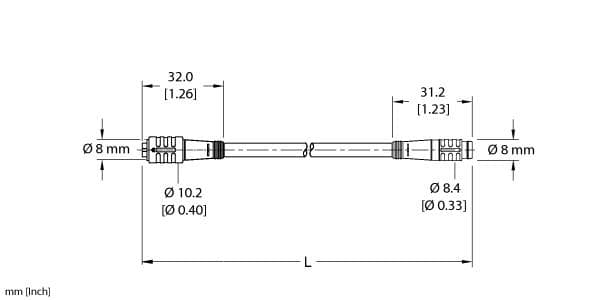

Turck PKG 3Z-0.6-PSG 3 is a double-ended cable/cordset designed with a 4.2mm cable sheath outer diameter and a length of 60cm (24 inches). It features a 3-pin M8 picofast female connector with a female snap-lock and a 3-pin M8 picofast male connector with a male snap-lock, both connectors are straight. This cable is part of the M8 picofast sub-range and is capable of handling a rated current of 4A and a rated voltage of 125Vac. It is constructed with a nickel-plated brass coupling nut, a POM locking sleeve, and a PVC jacket. The cable has a 3-wire cross-section with each wire being #24AWG. It offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The cable and connectors are color-coded with red moulded plugs and a black sheath.

Related documents PKG 3Z-0.6-PSG 3 Specs

PKG 3Z-0.6-PSG 3 PKG 3Z-x-PSG 3.pdf
