QDE-860D Banner Cordsets

QDE-860D on Powermatic Associates
Banner

Part#:QDE-860D

Alt. Part#:78944

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Only 2 left in stock. Order Now!

Mar 6, 2025

Product description

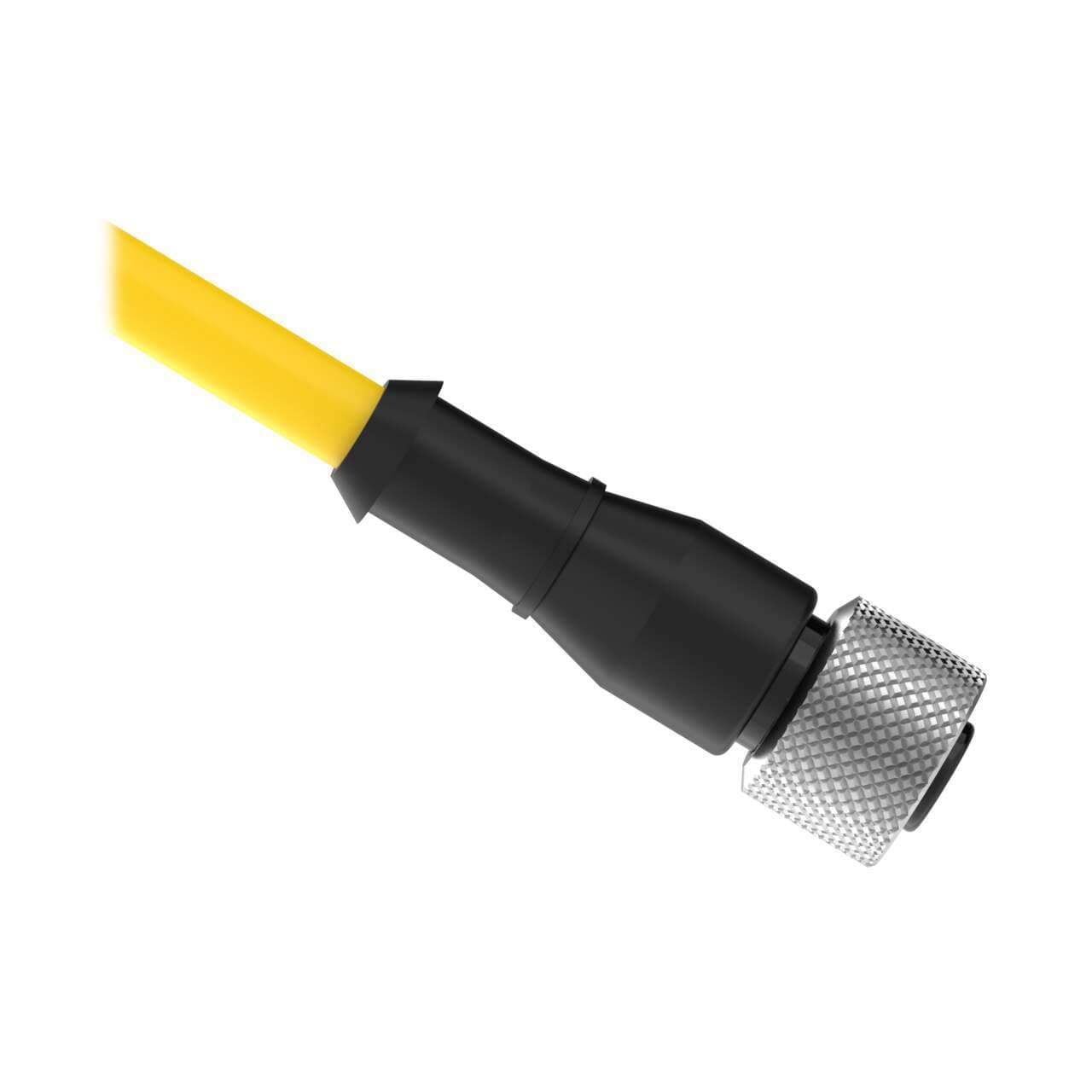

Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut

Product Details

  • Weight
    1088.6208 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Primary Number of Conductors
    8
  • Feature: Hazardous Area
    No
  • Secondary Connector Type
    Flying Leads
  • Primary AWG
    22
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Primary Gender
    Female
  • Primary Connector Type
    EURO
  • Current Rating (A)
    2.0
  • IP Rating
    IP67
  • Voltage Rating (V)
    75 V ac/dc
  • Maximum Temp. (°C)
    105
  • Minimum Temp. (°C)
    -40
  • Coupling Material/Color
    Nickel Plated Brass
  • Connector Body Material/Color
    PUR Black
  • Trunk Length (m)
    No Trunk
  • Shield/No Shield
    No Shield
  • Outside Cable Diameter (mm)
    6
  • Cable Jacket Color
    Yellow
  • Number of Contacts
    8
  • Cable Jacket Material
    PVC
  • Cordset Length (m)
    18.3
  • Number of Connectors
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QDE-860D on Powermatic Associates is $72.00. Order now.

About the product

Banner Engineering QDE-860D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female connector and bare end flying leads, suitable for environments with ambient air temperatures ranging from -40 to +105°C. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, ensuring protection against ingress with a degree of protection rated at IP67. It is rated for a voltage of 75Vdc and spans a length of 60ft (18m), accommodating extensive reach for connectivity in complex setups.
